SKU
05059952
Category
Media Converter Chassis
Overview

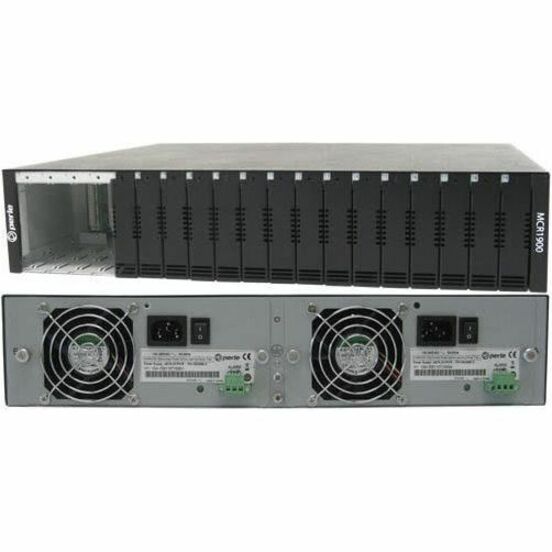

The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. Management of Media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low to mid density solution, please check out the MCR200 Media Converter Chassis.
For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.
Warranty
Limited Warranty: Lifetime
Highlights
High density 19-slot system
Fits a standard 19" or 23" rack - 2U height
Hot-swappable slide-in modules
Redundant hot-swappable AC and 48v DC power supplies
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
05059952
Brand Name
Perle
Product Series
MCR1900
Product Model
MCR1900-DAC
Product Name
MCR1900-DAC Media Converter Chassis
Product Type
Media Converter Chassis
I/O Expansions
Total Number of Expansion Slots
19
Physical Characteristics
Compatible Rack Unit
2U
Form Factor
Rack-mountable
Height
3.5"
Width
14"
Depth
17.1"
Weight (Approximate)
15.43 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
MCR1900-DAC Media Converter Chassis
2U - 19' Rack Mounting Hardware
15 x Empty Slot Cover Plates
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
