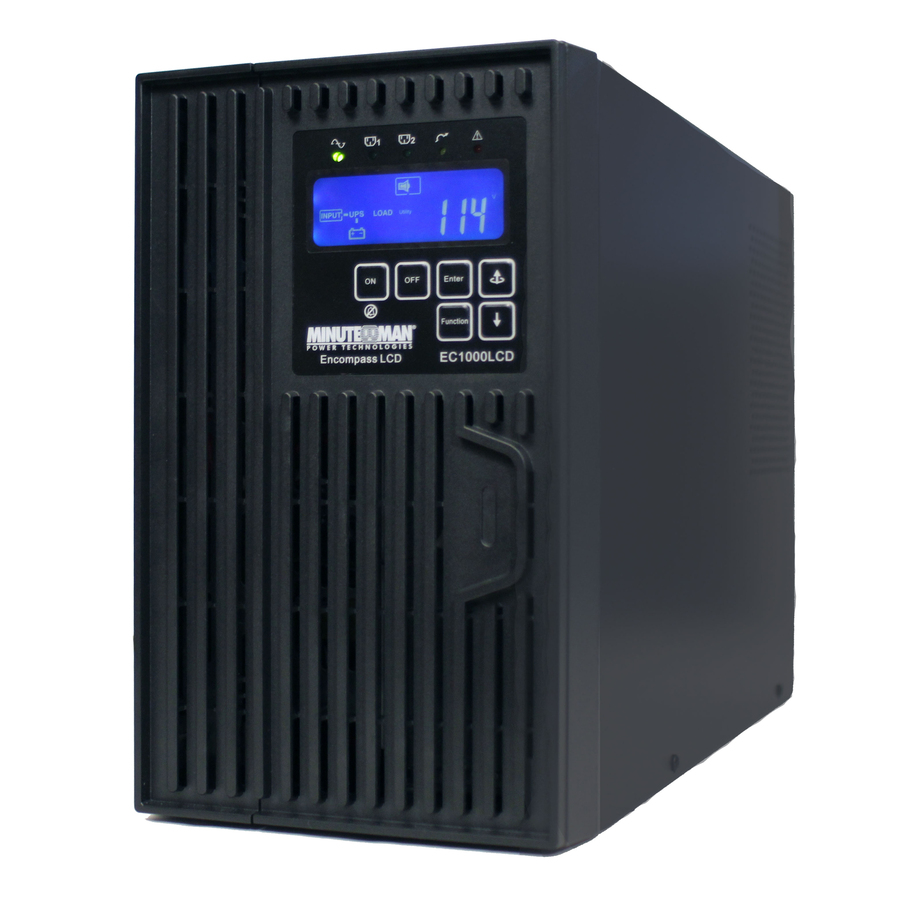

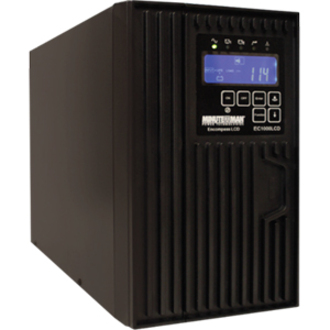

Minuteman 2000 VA On-line Tower UPS with 8 0utlets
Tower - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Serial Port - 8 x NEMA 5-15/20R Receptacle(s)
- SKU
- EC2000LCD
- Category
- General Purpose UPS
MSRP$2,287.00
$1,421.11
Save 38%Back ordered — ships when restocked.
Genuine Para Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EC2000LCD
- Category
- General Purpose UPS
Overview
On-Line UPS, Comprehensive Protection
Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double-conversion technology, an on-line UPS provides an impenetrable "electrical firewall," providing the most fail-safe power protection available.
Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full-device management using Minuteman's SentryHD? power monitoring and control software.

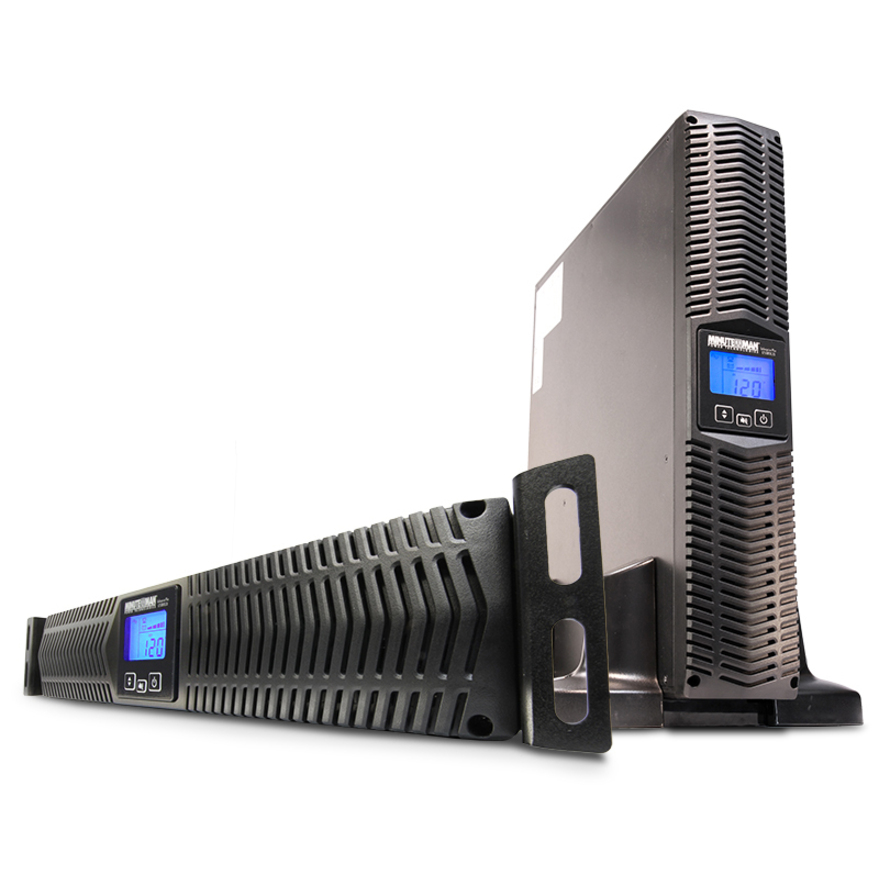

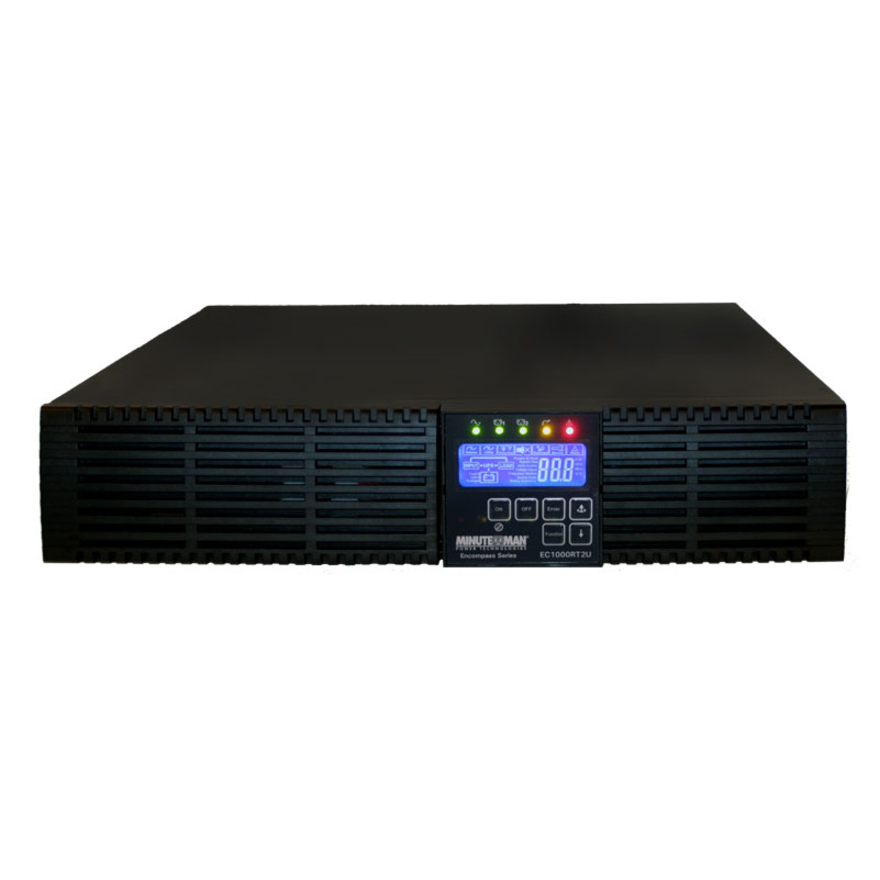

The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to meet the reliability expectations of even the most demanding critical applications. Two form factors are available in the Encompass Series: a tower-only version (EC-LCD) and a rack/tower version (EC-RT).
Highlights
- rue on-line, double-conversion technology
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with 2 banks
- Extended runtime capable
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
- Cold Start capable
- Automatic internal bypass
Specifications
| Application/Usage | Voice/Data Network, Server, Electronic Device, Medical, Healthcare, Lab Equipment, Security System, Education, Network |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | Minuteman SentryHD Power Monitoring and Control Software |
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | EC2000LCD |
| Limited Warranty | 3 Year |
| Output Voltage | 110 V AC, 120 V AC, 127 V AC |
| Weight (Approximate) | 48.10 lb |
| Dataline Protection | RJ-45, RJ-11 |
| Form Factor | Tower |
| Status Indicators |
|
| Manufacturer | Para Systems, Inc |
| Product Model | EC2000LCD |
| Product Name | 2000 VA On-line Tower UPS with 8 0utlets |
| Network Management | SNMP Manageable |
| Product Line | Encompass |
| Surge Energy Rating | 254 J |
| Waveform Type | Pure Sine Wave |
| Brand Name | Minuteman |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Frequency | 60 Hz |
| Height | 11.40" |
| Width | 6.80" |
| Depth | 17.40" |
| Input Frequency | 60 Hz |
| Receptacle Type | NEMA 5-15/20R |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Sealed, Non-spillable, Maintenance-free |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 1800 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 10% - 90% |
| Storage Relative Humidity | 10% - 90% |
| Storage Temperature | 14°F (-10°C) - 122°F (50°C) |
| Transfer Time | 0 ns |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
