2U Tower/Rack Convertible - 3 Hour Recharge - 9 Minute Stand-by - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x IEC 60320 C13 Receptacle(s)
MSRP$2,643.27
$2,076.17
Save 21%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine PANDUIT through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Panduit® SmartZone? Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Key Features and Benefits | Rack/Tower convertible
Support rack/tower installation with rotatable colorful LCD display.
Online Double Conversion with fully digital control (EMEA unit only)
Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
(110-300Vac Online models) (75-146Vac Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 96.5% for Online models and up to 98.5% for Line-interactive models, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE, NOM/UL/ENERGY STAR® 2.0 for North America
Output unity power factor
Means more active power for IT equipment load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Intelligent Battery Management
The most optimal curve with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easy shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatic adjustment of fan speed due to the ambient temperature and load percentage
Programmable outlet group with Smart Load Shedding
Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.

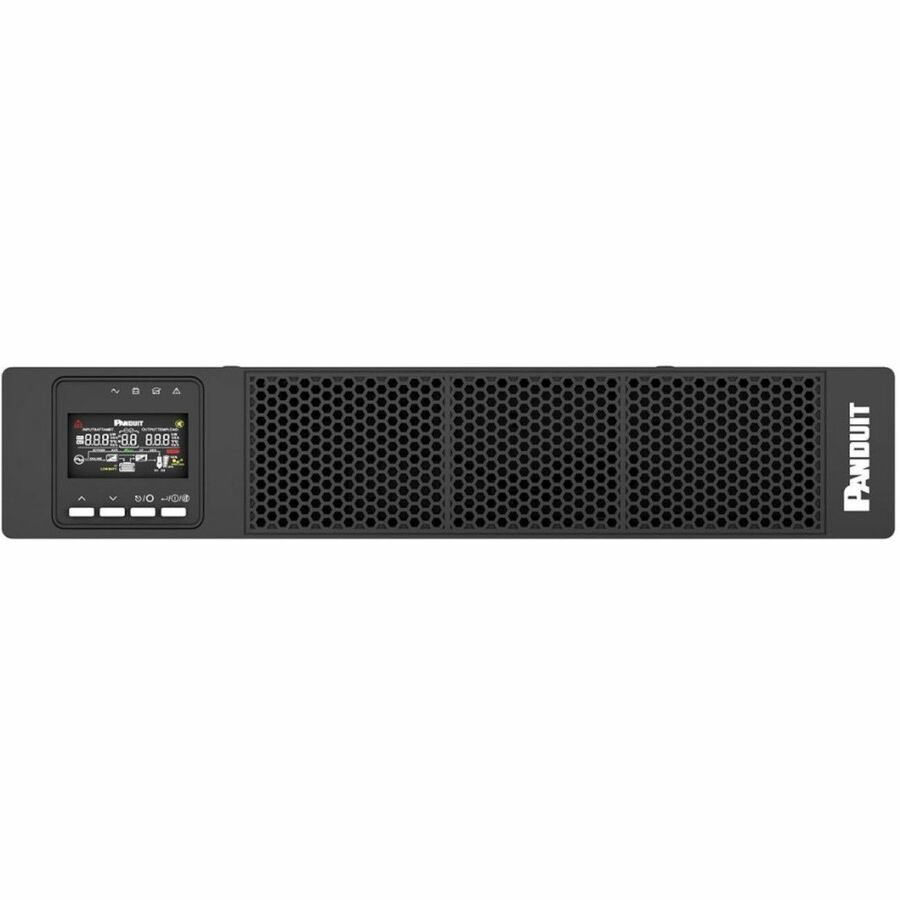

Segment colorful LCD
Colorful LCD with four buttons and LED indicators, providing intuitive display
Multiple communication interface
RS232/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
Intelligent Network Management Card (included with N Models)
Provides harden security remote access via Ethernet Secure SNMPv3 protocol to monitor and manage the UPS, micro-USB for firmware upgrade and RS-485 for connecting environmental and security sensors. Built-in WiFi and Bluetooth hardware support with future optional firmware upgrade.
Additional Warranty Information: <p>5 years (UPS & Battery)</p> Limited Warranty: 5 Year
Company Profile The quality of your infrastructure has a direct impact on the success of your business. As a leader in infrastructure products and services for data networks and electrical power applications, Panduit helps you create connectivity solutions that give you the ability to become more productive and adaptable across your organization. A Culture of Curiosity, A Passion for Problem Solving Although the world has dramatically changed since our story began in 1955 when our founder Jack E. Caveney invented the Panduct wiring duct in his garage, our spirit of discovery and can-do attitude have remained. Choosing to innovate rather than imitate, we continue to create leading-edge physical electrical and network infrastructure solutions across a wide spectrum of business environments. As a customer-focused company, we pride ourselves on creating a continuous flow of new products, software, and solutions designed to help you achieve your business goals. By partnering with Panduit, you can develop your connectivity strategy on a foundation that ensures scalability, accuracy, security, and reliability, so you can build for long-term growth. Stats at a Glance Connections Are the Lifeblood of Your Business Our world is becoming more and more connected every day. Discover how we're helping businesses like yours reach their full potential by delivering smarter infrastructure strategies. The Industry’s Broadest Portfolio of Specialties We understand that everyone’s challenges are unique, which is why we offer an extensive product portfolio to help our customers achieve and exceed their operational and financial goals. From data centers and office facilities to plant floors and processing lines, we design, build, install, and service innovative solutions that turn connectivity into a competitive advantage. Data Center Panduit helps customers worldwide conquer IT complexity in data center deployments. Our extensive portfolio of converged infrastructure solutions helps achieve scalability, agility, and operational efficiency. Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Enterprise We simplify the design, installation, and operation of evolving enterprise networks with comprehensive cabling and physical infrastructure solutions. Aenean sollicitudin turpis nec nibh tempus dictum. Vivamus eget cursus tortor. Praesent egestas dui vitae mi eleifend pharetra. Ut hendrerit iaculis lorem, iaculis congue dui faucibus non. Curabitur ut felis risus. Industrial Networks From the enterprise to the edge, Panduit provides reliable integrated IT and OT architecture that simplifies industrial network deployment for better equipment optimization and broader risk management. Industrial Construction / MRO We understand the challenges of power cabling infrastructures within heavy-duty industrial environments, and our solutions reduce installation time and cost while improving operational performance and safety. OEM Panduit helps OEMs and contract manufacturers organize, connect, and protect electrical wire and cabling systems for optimum performance. We are your single-source partner to achieve the lowest total cost of ownership. Learn More About Connecting your Business to What's Possibile Understand the Impact Infrastructure Has on Your IoT Solutions A robust infrastructure is critical for successful IoT deployment. This series of whitepapers discusses key considerations for businesses looking to embrace the Industrial Internet of Things.
| Additional Warranty Information | 5 years (UPS & Battery) |
|---|---|
| Application/Usage | IT Equipment, Data Center, Enterprise |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Package Contents |
|
| Software Included | SmartZone? Cloud Ready |
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC, 120 V AC |
| Manufacturer Part Number | U01N12L |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Output Voltage | 230 V AC, 220 V AC, 240 V AC |
| Weight (Approximate) | 20.50 lb |
| Dataline Protection | RJ-45 |
| Features | Audible Alarm, Cold Start Function |
| Form Factor | Tower/Rack Convertible |
| Manufacturer | PANDUIT CORP |
| Product Model | U01N12L |
| Product Name | SmartZone U01N12L 1000VA Tower/rack convertible UPS |
| Network Management | USB/RS-232/Intelligent Slot, SNMPv3, iNMC Card |
| Overload Protection | Yes |
| Product Line | SmartZone |
| Surge Suppression | Yes |
| Thermal Dissipation | 27.84 W |
| Waveform Type | Pure Sine Wave |
| Rack Height | 2U |
| Brand Name | Panduit |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 176 V AC - 264 V AC, 110 V AC - 300 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Cord Length | 5.91 ft |
| Height | 3.41" |
| Width | 17.32" |
| Depth | 12.80" |
| Input Frequency | 40 Hz, 70 Hz |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Environmentally Friendly | Yes |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 9 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 1000 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| DC System Voltage | 25.6 V DC |
| EPO Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Output Power Factor | 1 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Efficiency Detail | 90% (Online Mode), 95% (Eco Mode) |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
