SKU
IAEBHUSBAA
Category
Connector Adapters
Overview

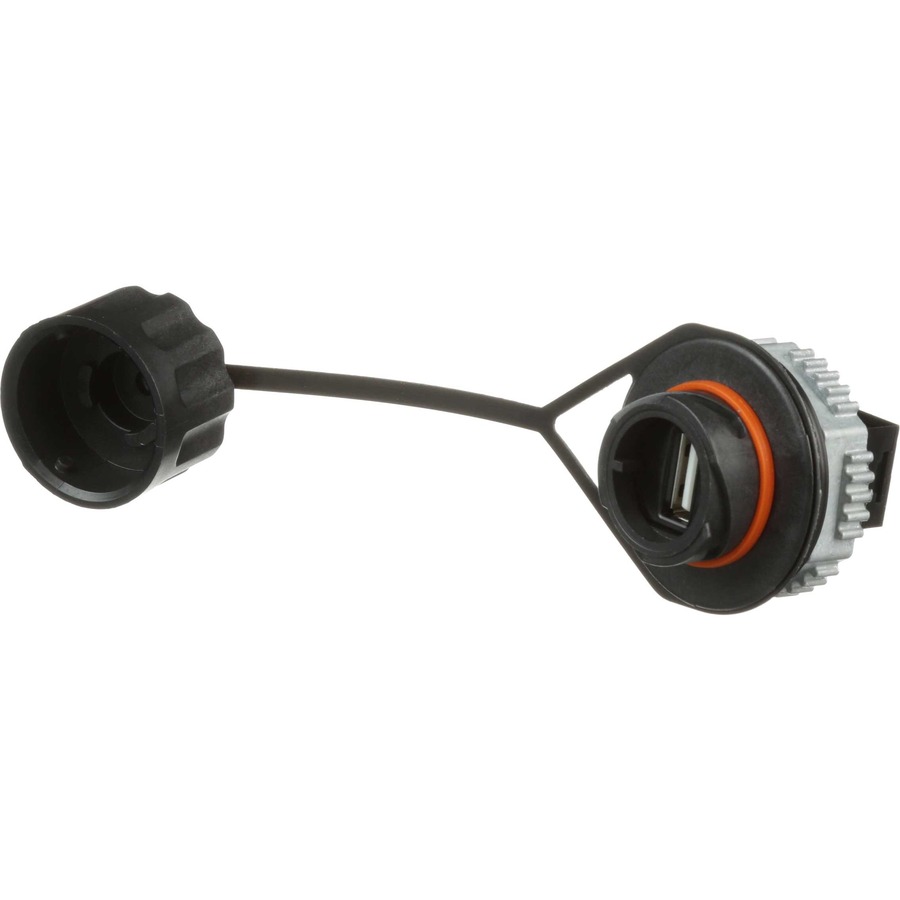

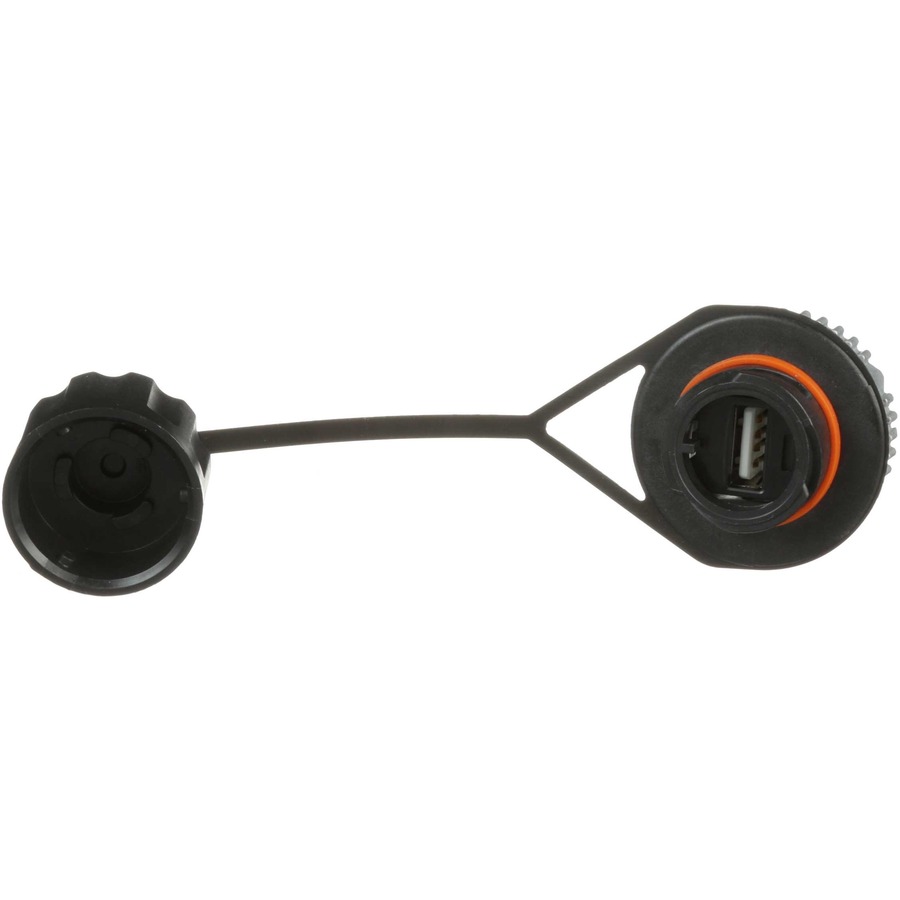

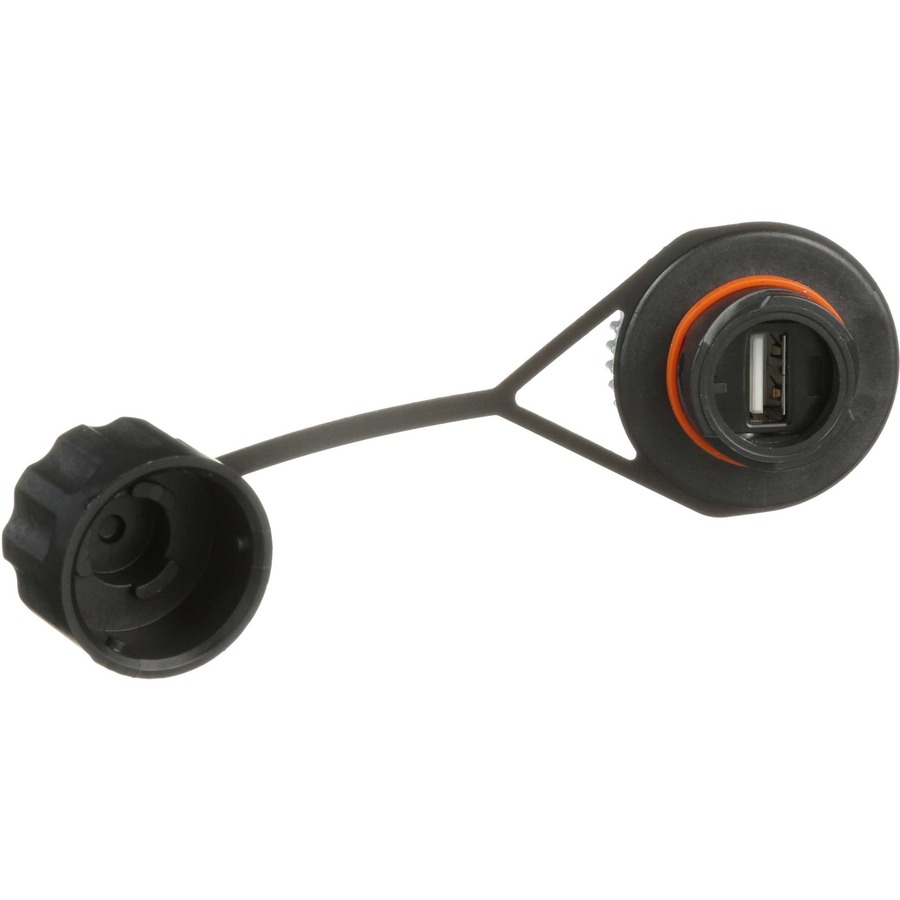

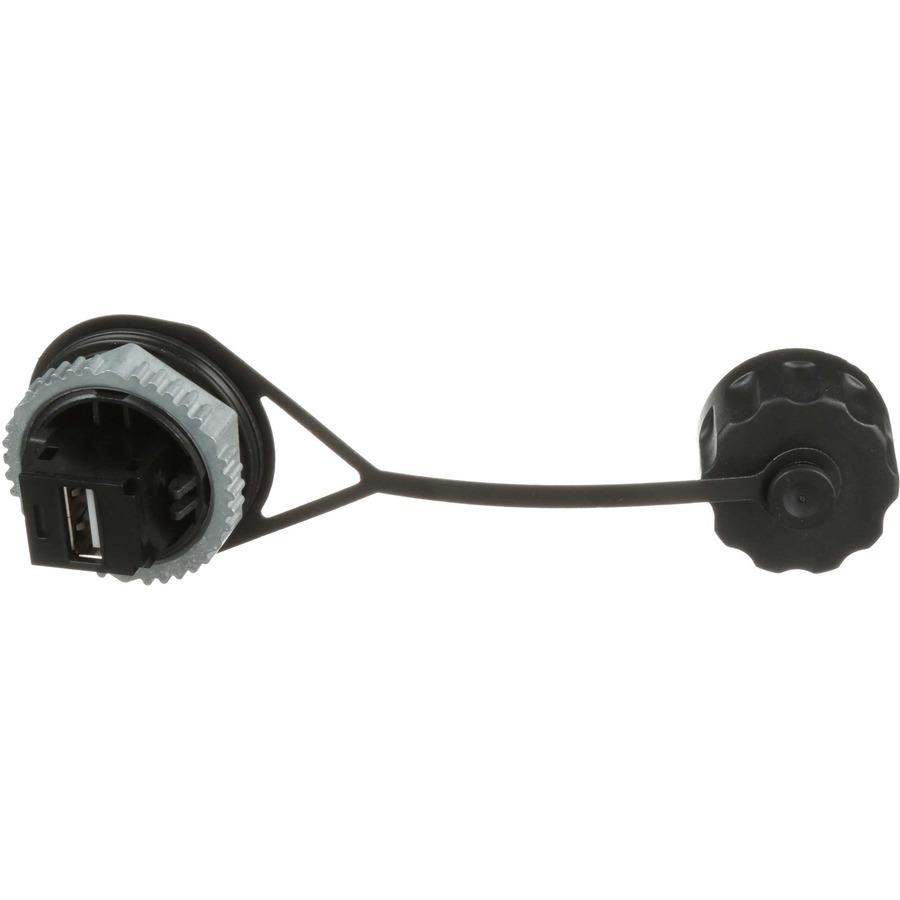

The IndustrialNet USB Female 2.0 bulkhead connector, with protective cap, is ideal in manufacturing environments. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water.
Highlights
Bulkhead anti-rotation washer:Eliminates the potential for module rotation
Connector mounting nut:Holds bulkhead safely and securely from inside of enclosure
Robust construction: Plug contact plated with 50 micro inches of gold
Bayonet style interface: Provides positive reinforcement during mated condition; rated to 100 mating cycle
Protective cap: Maintains IP67 seal during unmated connection
Utilizes patented Giga-TX ? Technology:Optimizes performance by reducing conductor untwist to less than 1/8"
Forward motion termination: Speeds installation and places no impact on critical components for maximum reliability :Industry standard RJ45 interface Offers industry standard solution familiar to end users which speeds deployment
No punchdown tool required :Can terminate with standard adjustable slipjaw pliers or optional termination tool (EGJT)
Universal wiring scheme :Termination cap is color coded for T568A and T568B wiring schemes
Standard mounting :Bulkhead connector fits into standard IEC 1-13/64" (30.5mm) diameter mounting hole or optional faceplate
Specifications
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
IAEBHUSBAA
Brand Name
IndustrialNet
Product Name
Industrial USB Female A-A 2.0 Bulkhead Coupler
Packaged Quantity
1
Product Type
Data Transfer Adapter
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Polybutylene Terephthalate (PBT), Plastic
Height
5.3"
Width
1.5"
Depth
1.5"
Technical Information
Adapter Type
USB
Connector Type on First End
USB 2.0 Type A - Female
Connector on First End Details
1 x USB 2.0 Type A - Female
Connector Type on Second End
USB 2.0 Type A - Female
Connector on Second End Details
1 x USB 2.0 Type A - Female
Contact Plating
Gold
Features
Dust Protection, Water Resistant, Temperature Resistant, Moisture Resistant, Protective Cap, Bulkhead
