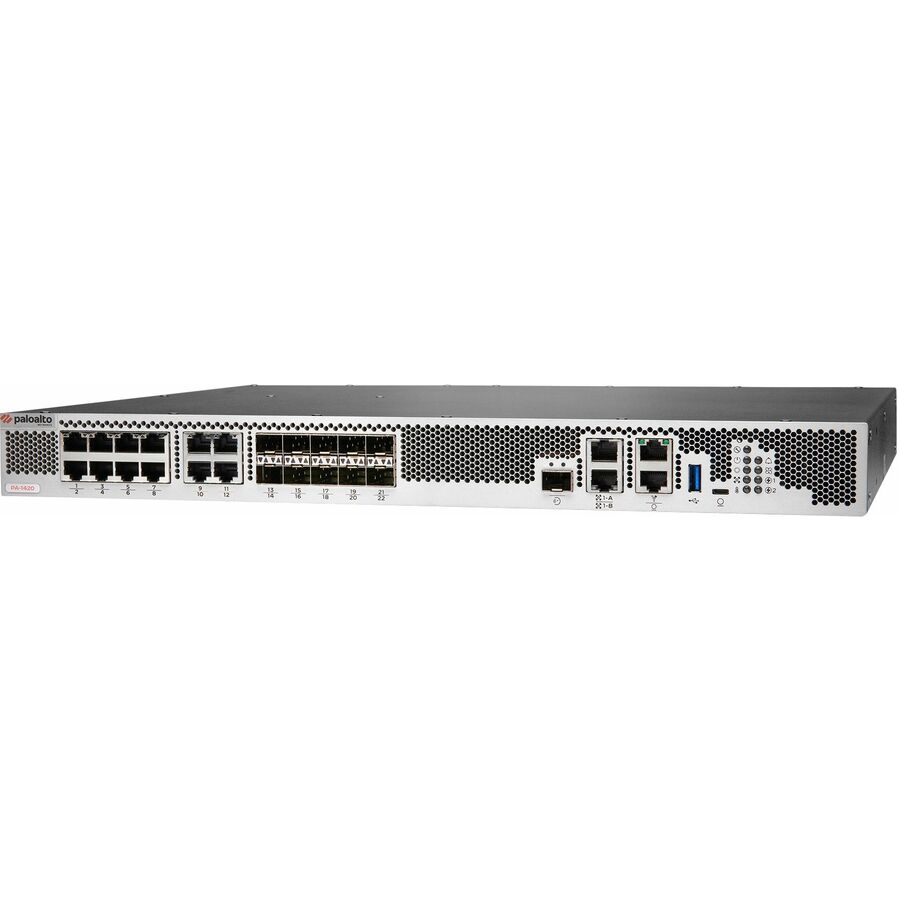

Palo Alto PA-1420 Network Security/Firewall Appliance
Wired - 12 Port - 10GBase-X, 1000Base-X, 5GBase-T, 10/100/1000Base-T - 10 Gigabit Ethernet - 9.90 Gbit/s Firewall Throughput - 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1, SHA-256, SHA-384, SHA-512, TLS, SSL - 8 x RJ-45 - 10 Total Expansion Slots - 50 Hz, 60 Hz - 1U - Rack-mountable
- SKU
- PAN-PA-1420-NFR
- Category
- Network Security & Firewalls
$10,151.22
Back ordered — ships when restocked.
Genuine Palo Alto Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PAN-PA-1420-NFR
- Category
- Network Security & Firewalls
Overview
Palo Alto Networks PA-1400 Series ML-Powered Next-Generation Firewalls, comprising the PA-1420 and PA-1410, are designed to provide secure connectivity for organizations' branch offices as well as midsize businesses.
The controlling element of the PA-1400 Series is PANOS, the same software that runs all Palo Alto Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content, and then ties that traffic to the user regardless of location or device type. The application, content, and user-in other words, the elements that run your business-then serve as the basis of your security policies, resulting in improved security posture and reduced incident response time.
Highlights
- Designed to be the central hub of all network security activity with maximum productivity
- Proven firewall appliance with zero day event firewall protection support provides secure data transfer on your network
- Achieve high level data security by using 3DES Encryption algorithm that encrypts the data three times using 64-bit keys
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- PoE (RJ-45) Port conveniently allows system integration and network installers to organize powered devices in locations that lack electrical circuitry
- For securely connecting servers, workstations and storage and enabling secure data transfer, use this 12 ports firewall
- Rack mounting enables you to organize wires & secure cables for professional installation
- USB offers a more refined structure and safer to use connectivity
Specifications
| Product Type | Network Security/Firewall Appliance |
|---|---|
| Firewall Protection Supported | Zero Day Event, Advanced Threat Protection, URL Filtering, DNS Security, Data Loss Prevention, IoT Security, SaaS Security, TLS Inspection, Antivirus, Anti-spyware, Secure IPsec VPN Connectivity, Malware Protection, Spyware Protection, SSL Decryption, IPv6 Attack |
| Manufacturer Part Number | PAN-PA-1420-NFR |
| Weight (Approximate) | 15.50 lb |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Frequency | 50 Hz, 60 Hz |
| Manufacturer | Palo Alto Networks |
| Product Model | PA-1420 |
| Product Name | PA-1420 Network Security/Firewall Appliance |
| Power Consumption | 300 W |
| Product Series | PA-1400 |
| Brand Name | Palo Alto |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 14.2" |
| Manageable | Yes |
| Network Standard | 10GBase-X, 1000Base-X, 5GBase-T, 10/100/1000Base-T |
| Compatible Rack Unit | 1U |
| VPN Throughput | 832 MB/s |
| Encryption Standard | 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1, SHA-256, SHA-384, SHA-512, TLS, SSL |
| Firewall Throughput | 9.90 Gbit/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Number of SFP Slots | 2 |
| Number of SFP+ Slots | 8 |
| Number of PoE (RJ-45) Ports | 4 |
| Total Number of Ports | 12 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 10 |
