Genuine Palo Alto Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Network Security & Firewalls
Overview

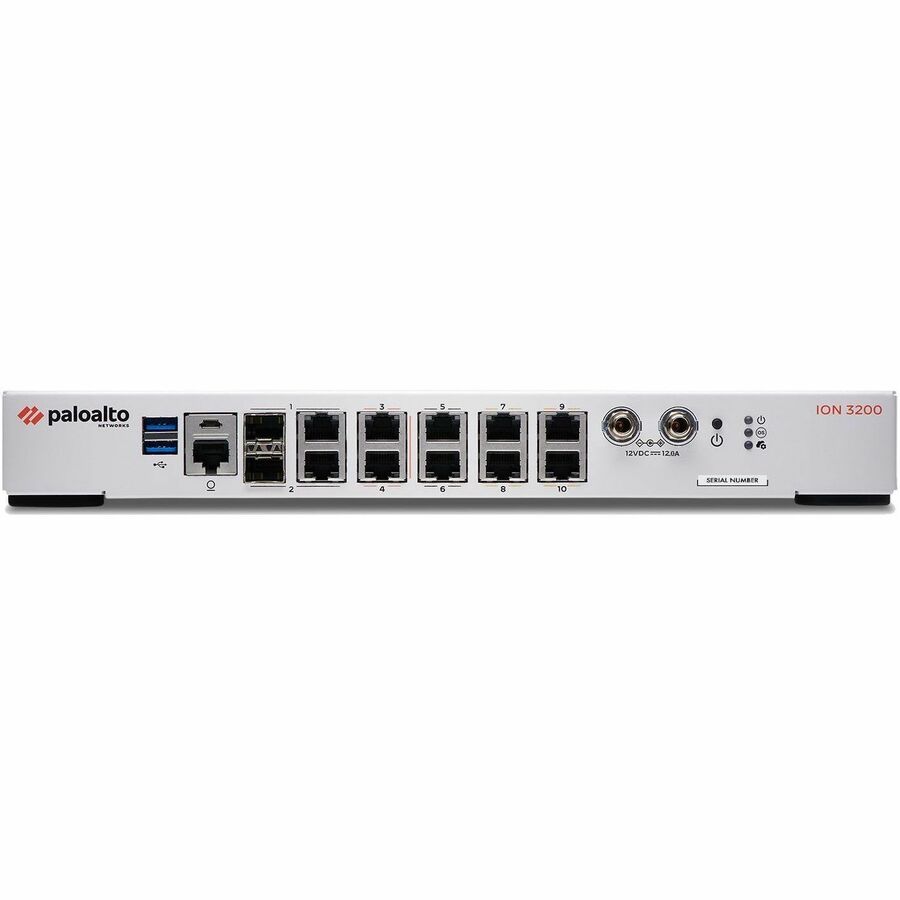

Prisma SD-WAN ION 3200 is a next generation software-defined device that can be deployed in a branch or a data center. With the introduction of ION 3200, accelerate your SASE deployment to a branch or a DC by applying WAN connectivity without installing additional hardware to enable rapid deployments.
The new high-performance ION 3200 device comes with fiber optic ports offering RJ-45/SFP Combo WAN ports, higher power SFP ports to support smart SFPs, wired LAN switching, wireless LAN Access points, PoE to power external cellular gateways, and other PoE powered devices such as Internet Protocol phones or cameras or Wireless Access Points.
Warranty
Limited Warranty: 12 Month
Highlights
Supports network security appliance functionality by combining traffic inspection and policy enforcement within a single platform
8 ports firewall supports connecting multiple devices to expand or segment the existing network infrastructure
Supports Gigabit Ethernet to enable increased data transfer capacity compared to earlier Ethernet standards
Rack?mountable form factor allows secure and space?efficient installation within standard rack environments
Receives power directly via 3 PoE+ (RJ-45) Ports, eliminating the need for separate power sources and simplifying installation in network deployments
Supports PoE via RJ?45 port to allow data connectivity and power delivery through a single Ethernet cable
Supports USB interface to provide standardized connectivity for supported external components
Specifications
General Information
Manufacturer
Palo Alto Networks
Manufacturer Part Number
PAN-ION-3200-OSS
Brand Name
Palo Alto
Product Line
ION
Product Series
3200
Product Name
ION 3200 Network Security Appliance
Packaged Quantity
1
Product Type
Network Security Appliance
I/O Expansions
Total Number of Expansion Slots
2
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
2
Interfaces/Ports
Total Number of Ports
8
USB
Yes
PoE (RJ-45) Port
Yes
Number of PoE (RJ-45) Ports
4
Number of PoE+ (RJ-45) Ports
3
Number of 60W PoE (RJ-45) Ports
1
Management & Protocols
Manageable
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet, Fast Ethernet, Ethernet
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable, Desktop, Wall Mountable
Height
1.7"
Width
8.9"
Depth
13"
Weight (Approximate)
8.70 lb
Power Description
Frequency
50 Hz, 60 Hz
Technical Information
Connectivity Technology
Wired
Warranty
Limited Warranty
12 Month
Miscellaneous
Package Contents
ION 3200 Network Security Appliance
1 x 150W Power Adapter
1 x AC Power Cord
1 x Power Adapter Wall-mount Kit (Includes One Power Adapter Bracket, a Velcro Strap, and a Plastic Cable Tie)
