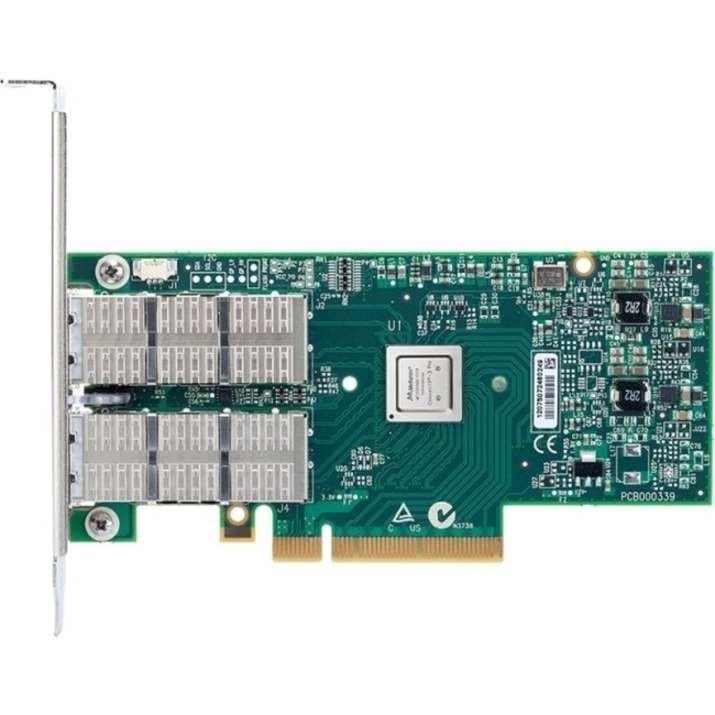

Mellanox ConnectX-4 Infiniband Host Bus Adapter
PCI Express 3.0 x8 - 100 Gbit/s - 1 x Total Fibre Channel Port(s) - QSFP - Plug-in Card
- SKU
- MCX453A-FCAT
- Category
- Host Bus Adapters
MSRP$611.16
$537.95
Save 12%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCX453A-FCAT
- Category
- Host Bus Adapters
Overview
Mellanox MCX453A-FCAT ConnectX-4 VPI Adapter Card FDR IB 40/56GbE Single-Port QSFP28 PCIe3.0 x8 ROHS R6
ConnectX-4 adapter cards with Virtual Protocol Interconnect (VPI), supporting EDR 100Gb/s InfiniBand and 100Gb/s Ethernet connectivity, provide the highest performance and most flexible solution for high-performance, Web 2.0, Cloud, data analytics, database, and storage platforms.
ConnectX-4 provides exceptional high performance for the most demanding data centers, public and private clouds, Web2.0 and Big Data applications, as well as High-Performance Computing (HPC) and Storage systems, enabling today's corporations to meet the demands of the data explosion.
ConnectX-4 offers the highest throughput VPI adapter, supporting EDR 100Gb/s InfiniBand and 100Gb/s Ethernet and enabling any standard networking, clustering, or storage to operate seamlessly over any converged network leveraging a consolidated software stack.
Highlights
- EDR 100Gb/s InfiniBand or 100Gb/s Ethernet per port
- 1/10/20/25/40/50/56/100Gb/s speeds
- 150M messages/second
- Single and dual-port options available
- Erasure Coding offload
- Accelerated Switching and Packet Processing (ASAP2)
- T10-DIF Signature Handover
- Virtual Protocol Interconnect (VPI)
- CPU offloading of transport operations
- Application offloading
Specifications
| Host Interface | PCI Express 3.0 x8 |
|---|---|
| Product Type | Infiniband Host Bus Adapter |
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer Part Number | MCX453A-FCAT |
| Limited Warranty | 1 Year |
| Form Factor | Plug-in Card |
| Manufacturer | NVIDIA Corporation |
| Product Name | ConnectX-4 Infiniband Host Bus Adapter |
| Product Line | ConnectX-4 |
| Brand Name | Mellanox |
| Expansion Slot Type | QSFP |
| Country of Origin | Israel |
| Height | 2.7" |
| Width | 5.6" |
| Environmentally Friendly | Yes |
| Total Number of Fibre Channel Ports | 1 |
