NetAlly AirMagnet Planner - License - 1 User

AirMagnet Planner

Overview

Haphazard planning of a wireless deployment can lead to overspending, as well as underserved and less-than-thrilled end-users. AirMagnet Planner is a Wi-Fi network planning tool that saves time, money, and frustration by accounting for building materials, obstructions, access point configurations, antenna patterns and a host of other variables to provide a predictive map of Wi-Fi signal and performance, before the network or physical building is constructed.

AirMagnet Planner can be purchased as a separate product or as a fully integrated feature of AirMagnet Survey. When integrated with AirMagnet Survey, users have a powerful solution that combines state-of-the-art predictive modeling with real-world performance data.

Features

ophisticated WLAN Modeling

AirMagnet Planner makes it easy to build a detailed model of any wireless environment – even before the network is deployed or the building is constructed. Simply load in a map of the location and use the built-in library of walls, doors and windows to precisely match the building’s characteristics.

AirMagnet Planner allows users to add AP’s to any location and experiment to find the ideal placement for the environment based on their requirements. AirMagnet Planner also provides independent settings for 2.4 GHz and 5 GHz radios. Users can set the AP channel, IP address, transmit power, antenna type, orientation, height, and 802.11 specifications. When the planning session is complete, users can generate a professional Bill of Materials report with all the information that is needed to properly install the network. Along with RF coverage information, users can access performance metrics such as data rates and throughput.

Automatic Wall Extraction (AWE)

Users can reduce the amount of time spent in preparing a floorplan for wireless planning by quickly importing walls from CAD floorplans with only a few clicks of the mouse. Each CAD layer can be individually selected and given a unique attenuation type.

802.11 Modeling

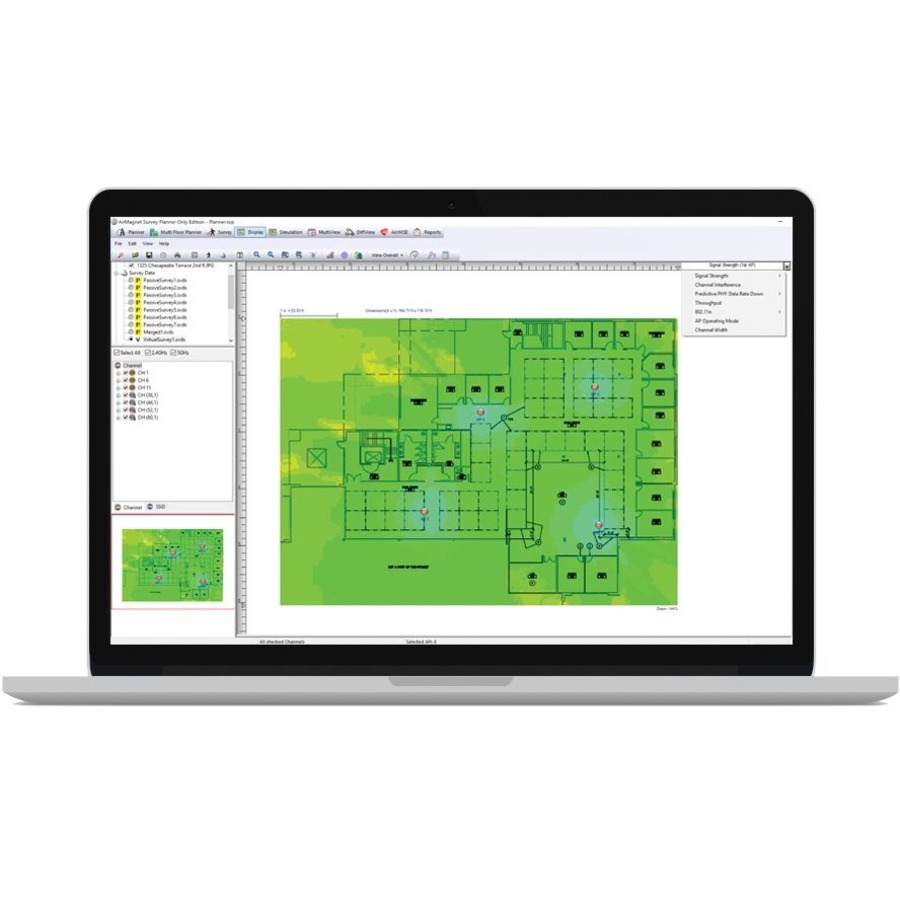

With AirMagnet Planner, users can design new 802.11 networks, as well as plan their migration strategies for existing legacy networks, including one-to-one replacements or the phased introduction of devices into their legacy network. Users can plan their deployments for user capacity or performance without any physical AP rollout. AirMagnet Planner provides unique coverage maps for WLAN throughput and other technology specific heat maps such as signal coverage, Operating Modes, MCS Transmit Rate, Channel Width and Channel Overlap, to predict the WLAN performance at every location on the floor and offer the best design that minimizes any rework once the network is deployed. Since AirMagnet Planner is part of a single, seamless application with AirMagnet Survey PRO, users can validate “modeled” 802.11 results against “real-world active” post-deployment surveys.

Multi-Floor Modeling

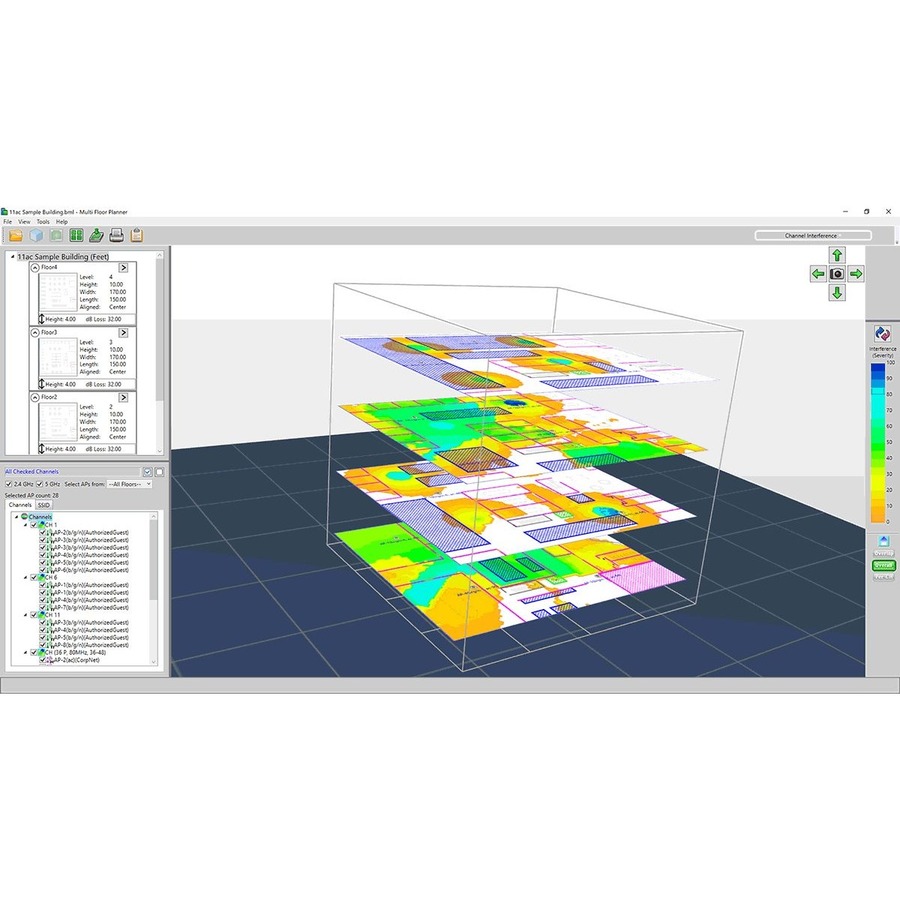

As users plan and design wireless access in multi-floor buildings, it makes economic sense to reuse services of APs to lower equipment deployment costs. With AirMagnet Planner’s multi-floor planning capability, users can visualize coverage and performance heat maps in 2D and 3D across floors, providing powerful insight into bleed over to adjacent floors.

Users are empowered with visualizations of signal strength, data rates, Operating Mode, MCS Transmit Rate, Channel Width, and Channel Overlap between floors and more.
