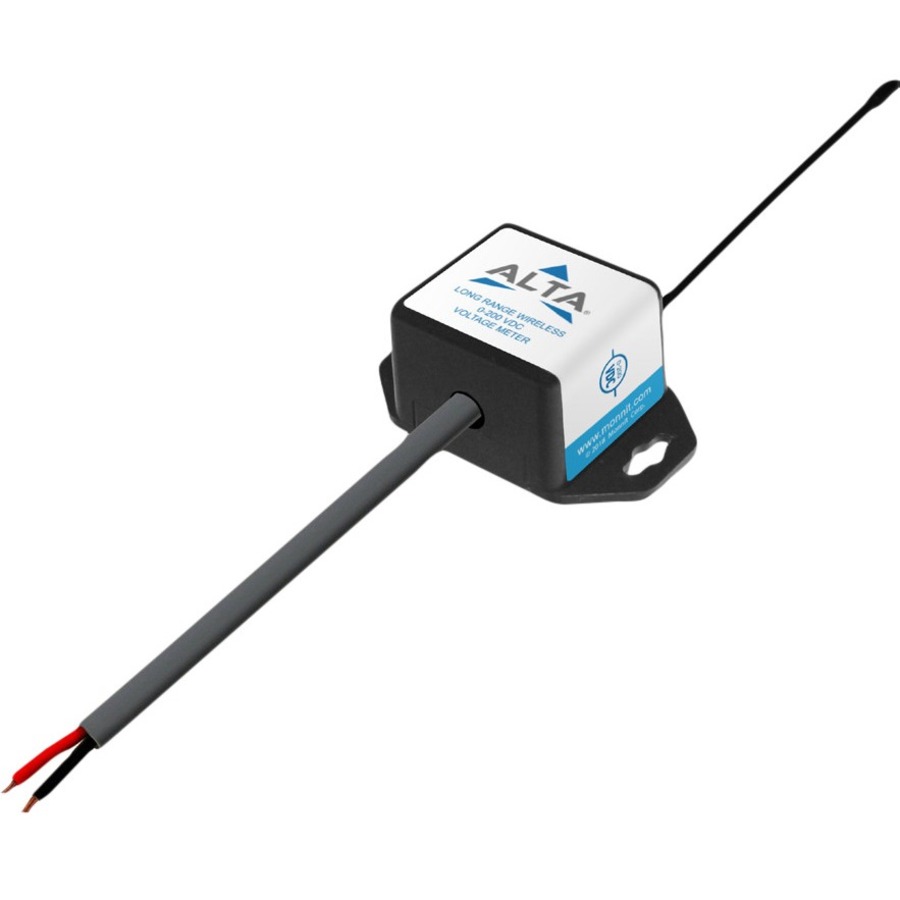

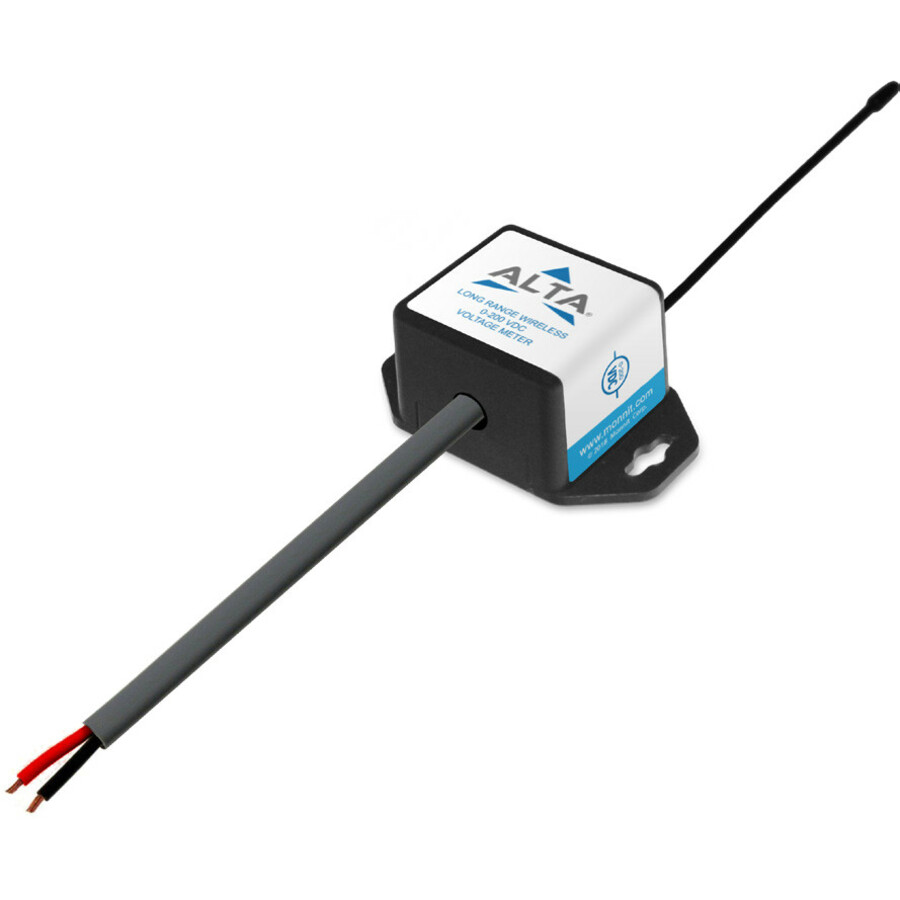

Monnit Alta Wireless Voltage Meters - 0-200 Vdc - Coin Cell Powered
Monnit

Monnit Alta Wireless Voltage Meters - 0-200 Vdc - Coin Cell Powered

for Vehicle Battery Monitoring, Utility Vehicle Battery Monitoring - ABS

SKU
MNS2-9-W1-VM-200
Category
Home & Office Security

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Monnit through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MNS2-9-W1-VM-200
Category
Home & Office Security

Overview

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 200 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.

Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer". Cannot be used for AC voltage measurement.

Specifications

Application/UsageVehicle Battery Monitoring, Utility Vehicle Battery Monitoring
Package Contents
  • Alta Wireless Voltage Meters - 0-200 Vdc - Coin Cell Powered
  • Wireless Sensor
  • CR2032 - Coin Cell Battery
  • Mounting Hardware
Product TypeVoltage Sensor
Manufacturer Part NumberMNS2-9-W1-VM-200
Weight (Approximate)0.90 oz
ManufacturerMonnit Corporation
Product NameAlta Wireless Voltage Meters - 0-200 Vdc - Coin Cell Powered
Brand NameMonnit
Country of OriginUnited States
Height1.1"
Width2"
Depth0.9"
Product MaterialABS
