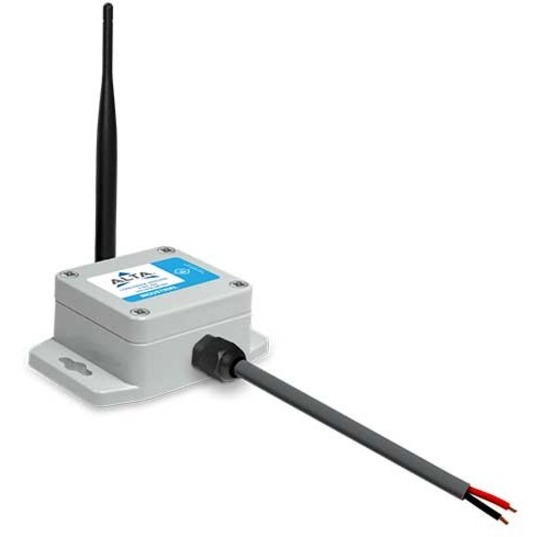

Monnit ALTA Industrial Wireless Voltage Meter - 0-200 VDC
Monnit

Monnit ALTA Industrial Wireless Voltage Meter - 0-200 VDC

SKU
MNS2-9-IN-VM-200
Category
Power Monitoring Devices

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Monnit through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MNS2-9-IN-VM-200
Category
Power Monitoring Devices

Overview

Description

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 200 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.

Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer". Cannot be used for AC voltage measurement.

Features

• Interfaces with batteries and devices up to 200 VDC

• Sensor resolution of 0.01 VDC

• Sensor accuracy of +/- 1%

Specifications

Package Contents
  • ALTA Industrial Wireless Voltage Meter - 0-200 VDC
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna
Product TypeWireless Current Meter
Manufacturer Part NumberMNS2-9-IN-VM-200
Packaged Quantity1 Each
Weight (Approximate)5 oz
ManufacturerMonnit Corporation
Product NameALTA Industrial Wireless Voltage Meter - 0-200 VDC
Package TypeBulk
Product LineALTA
Brand NameMonnit
Country of OriginUnited States
Height1.38"
Width2.32"
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
