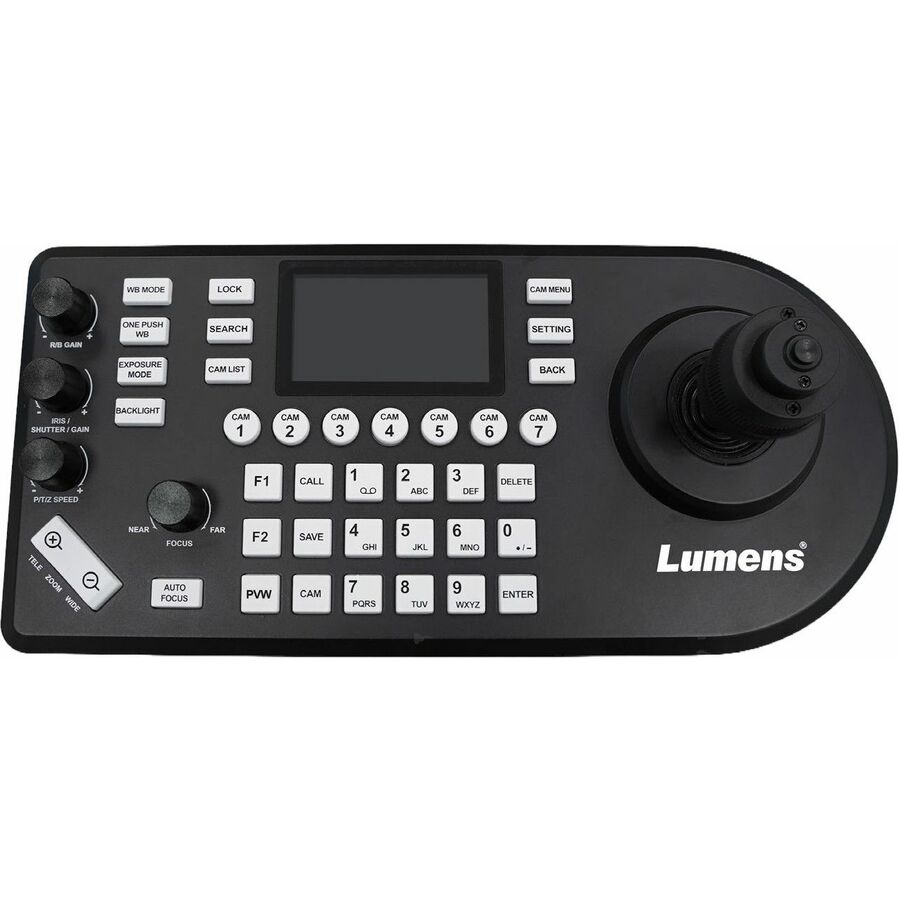

Lumens IP Camera Controller
255 Controllable Cameras - Pan, Tilt, Zoom, Focus Control - 3" LCD Serial Port - Network (RJ-45) Port - TAA Compliant
- SKU
- VS-KB21
- Category
- Surveillance Control Panels
MSRP$1,690.00
$1,158.25
Save 31%Back ordered — ships when restocked.
Genuine Lumens through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- VS-KB21
- Category
- Surveillance Control Panels
Overview

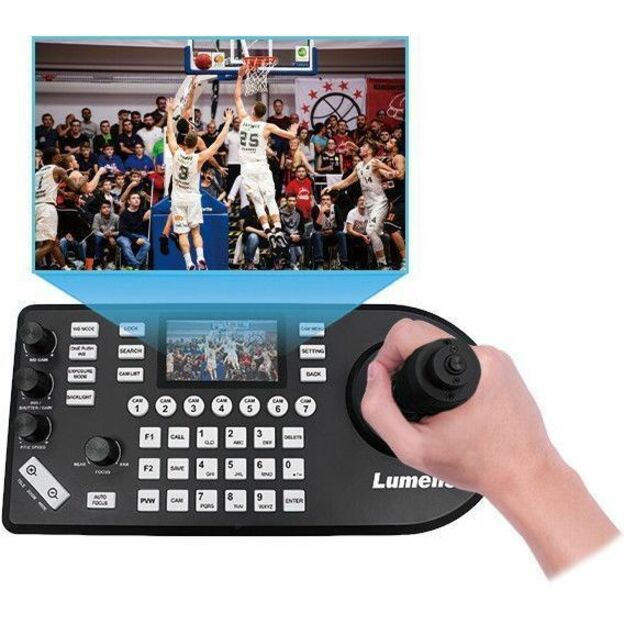

3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
Single Cable Installation
The VS-KB21's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
Highlights
- Controls up-to total of 255 IP-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA and VISCA Over IP control protocols
Specifications
| Product Type | Surveillance Control Panel |
|---|---|
| Display Type | LCD |
| Manufacturer Part Number | VS-KB21 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 2.80 lb |
| Features | White Balance |
| Manufacturer | Lumens |
| Product Model | VS-KB21 |
| Product Name | IP Camera Controller |
| Screen Size | 3" |
| Brand Name | Lumens |
| Height | 5.6" |
| Width | 11.9" |
| Depth | 4.4" |
| Control Type | Pan, Tilt, Zoom, Focus |
| Number of Controllable Cameras | 255 |
| Network (RJ-45) | Yes |
| Serial | Yes |
| TAA Compliant | Yes |
