CMOS - 3840 x 2160 Video (Live) - 4K UHD - MJPEG, H.264 - 1 x Network (RJ-45) - USB - Internal Speaker(s) - Internal Microphone(s) - TV Mountable, Bracket Mount
SKU
Category
Video & Web Conference Equipment
MSRP$1,460.00
$1,103.88
Save 24%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine Lumens through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Video & Web Conference Equipment
Overview
Voice-Tracking
The MS-10S features directional microphones which identify the position of participants in the room and intelligently adjust the camera to zoom onto the active speaker. This helps remote guests focus on discussions in the room.
Auto-Framing
The camera's auto-framing technology recognizes the area occupied within the room and adjusts the zoom angle to incorporate every guest. With a 120° field of view and the ability to zoom in 8x, the camera delivers superb HD or 4K output at all zoom settings.
Beamforming Microphones
MS-10S' four omnidirectional microphones have echo cancellation and noise suppression to capture every participant's voice clearly. The optional MS-EM1 expansion microphone is an ideal accessory for larger rooms. The MS-EM1 has a 3m pick-up range and is connected to the MS-10S by a 5m cable. A second expansion microphone can be added if required.
Clear Voice Speaker
MS-10S incorporates a 20W speaker with passive diaphragm to deliver sound output that can fill small and medium sized meeting rooms. Distortion is very well controlled at higher volumes, providing clear and natural voice communications.
Data Bridging

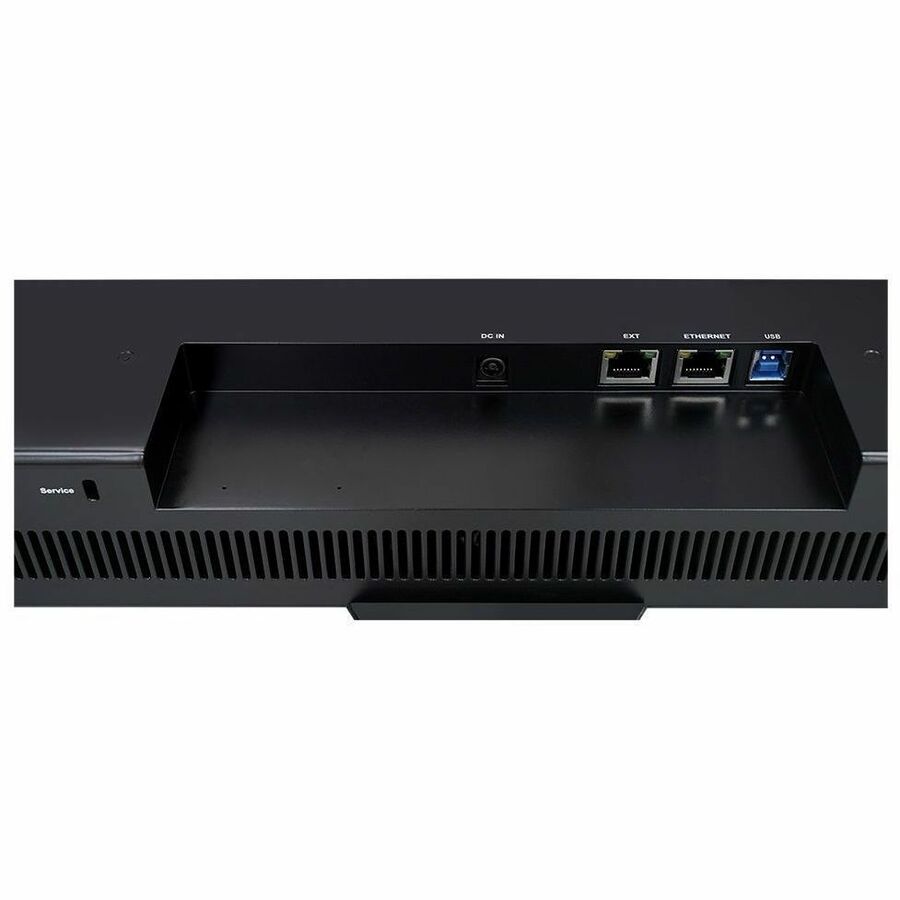

MS-10S has a network port which enables it to act as a bridge to deliver Internet connectivity to the host laptop over USB. This means that the PC or Mac running the video conferencing software is no longer reliant on WiFi for streaming. All connectivity (video, audio, control and network data) is routed thru a single USB port to the MS-10S.
Warranty
Limited Warranty: 5 Year
Highlights
4K UHD Wide-Angle Camera with Auto Framing
Integrated voice tracking with built-in beam-forming microphones
Optional Expansion Microphone Pod
Voice, Audio, and Ethernet over USB
Specifications
Audio
Speaker Form Factor
Internal
Microphone Form Factor
Internal
Camera
Image Sensor Size
1/2.8
Image Sensor Type
CMOS
General Information
Manufacturer
Lumens
Manufacturer Part Number
MS-10S
Brand Name
Lumens
Product Model
MS-10S
Product Name
4K Video Soundbar
Product Type
Video Conference Equipment
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
Number of Network (RJ-45) Ports
1
Physical Characteristics
Form Factor
TV Mountable, Bracket Mount
Height
3"
Width
23.5"
Weight (Approximate)
3.80 lb
Technical Information
Features
Digital PTZ, Noise Reduction, Echo Cancellation, Kensington Lock
