Lenovo RT1.5kVA 1500VA Rack/Tower UPS
2U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 8 x IEC 60320 C13 Receptacle(s) - Network Management Card, SNMP/HTTP Remote Monitoring
- SKU
- 7DD5A00CWW
- Category
- General Purpose UPS
$3,576.00
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7DD5A00CWW
- Category
- General Purpose UPS
Overview
The RT1.5kVA and RT3kVA 2U Rack or Tower Uninterruptible Power Supply-G2 offerings provide extended power protection with increased efficiency and simplified power management to safeguard the high availability of Lenovo server environments.
The 2U Rack or Tower UPS-G2 units can be installed in a data center rack cabinet or can be used as tower UPS units in office and distributed IT environments where extended power protection is required.

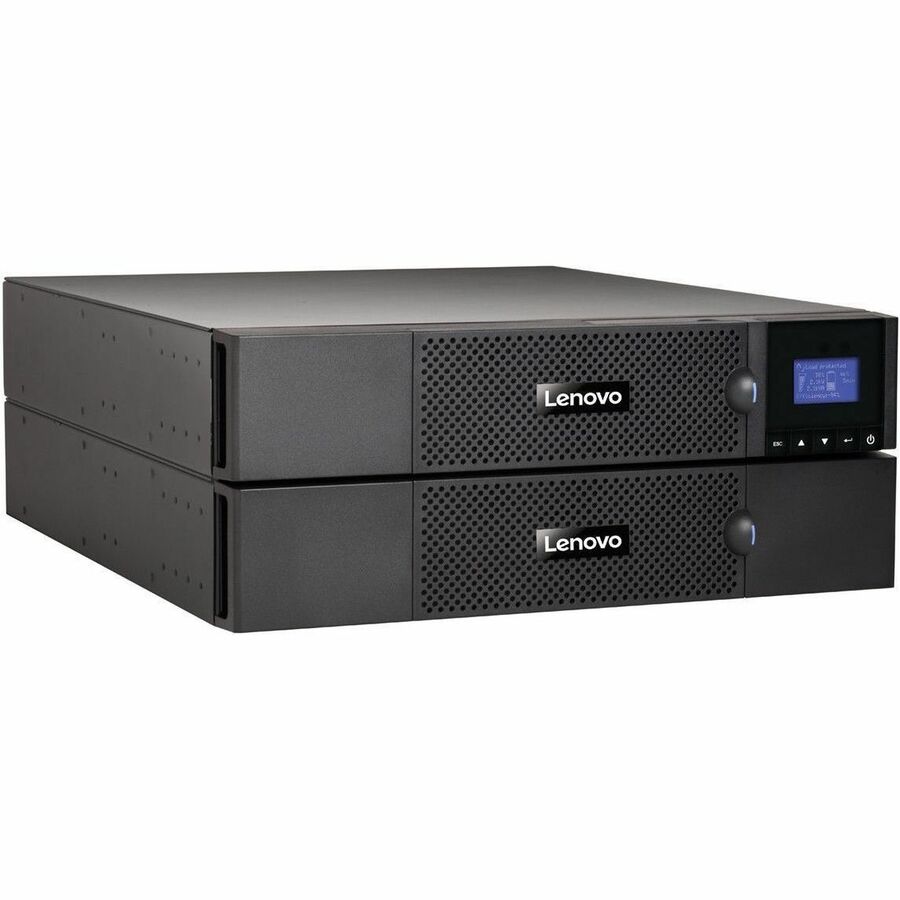

The 2U Rack UPS-G2 unit with the Extended Battery Module-G2 is shown in Figure 1.
Did you know?
2U Rack or Tower UPS-G2 units feature Advanced Battery Management (ABM) technology that uses a unique, three-stage charging technique that significantly extends battery service life by up to 50% and optimizes recharge time compared to traditional charging methods.
2U Rack or Tower UPS-G2 units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.
2U Rack or Tower UPS-G2 units meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Intelligent Power Software. Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Highlights
- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 1100 W load capacity
- 1500 VA load capacity provides sufficient backup during power failures
- 9000 mAh battery capacity allows longer, charged usage in a dependable manner with maximum feasibility
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- IEC 60320 C14 (10A) plug/connector type for a secure, feasible operation
- IEC 60320 C13 receptacle type provides secure, reliable connection with added productivity
- Line-interactive UPS with server application/usage to ensure maximum dependability and optimal performance
- 230 V AC input voltage for maximum feasibility and added productivity
Specifications
| Application/Usage | Server, Data Center, Rack Cabinet, Office, IT, Mission Critical Equipment, Storage, Electronic Equipment |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | IPM Software |
| Product Type | Line-interactive UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | 7DD5A00CWW |
| Limited Warranty | 3 Year |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 74.52 lb |
| Features | Advanced Battery Management (ABM) |
| Form Factor | Rack/Tower |
| Status Indicators | LED indicators: Power On On Battery Alarm |
| Input Current | 10 A |
| Manufacturer | Lenovo Group Limited |
| Product Model | RT1.5kVA |
| Product Name | RT1.5kVA 1500VA Rack/Tower UPS |
| Network Management | Network Management Card, SNMP/HTTP Remote Monitoring |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | Lenovo |
| Plug/Connector Type | IEC 60320 C14 (10A) |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Height | 3.39" |
| Width | 17.36" |
| Depth | 17.60" |
| Input Frequency | 50 Hz, 60 Hz |
| Receptacle Type | IEC 60320 C13 |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Battery Characteristics | Leak-proof, Sealed, Maintenance-free, Valve-regulated |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1100 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Number of External Battery Cabinets | 4 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 1.57 Hour |
| Backup/Run Time With External Battery Cabinet (Half Load) | 3.37 Hour |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Efficiency Detail | 98% (AC Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
