Lenovo

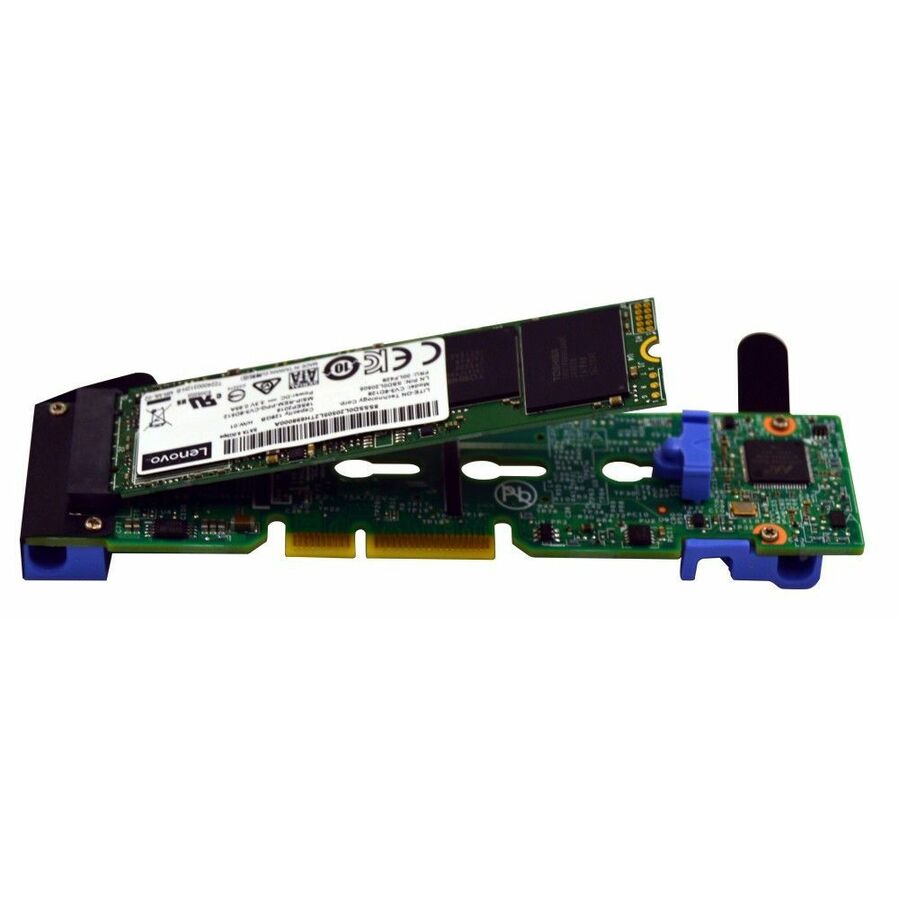

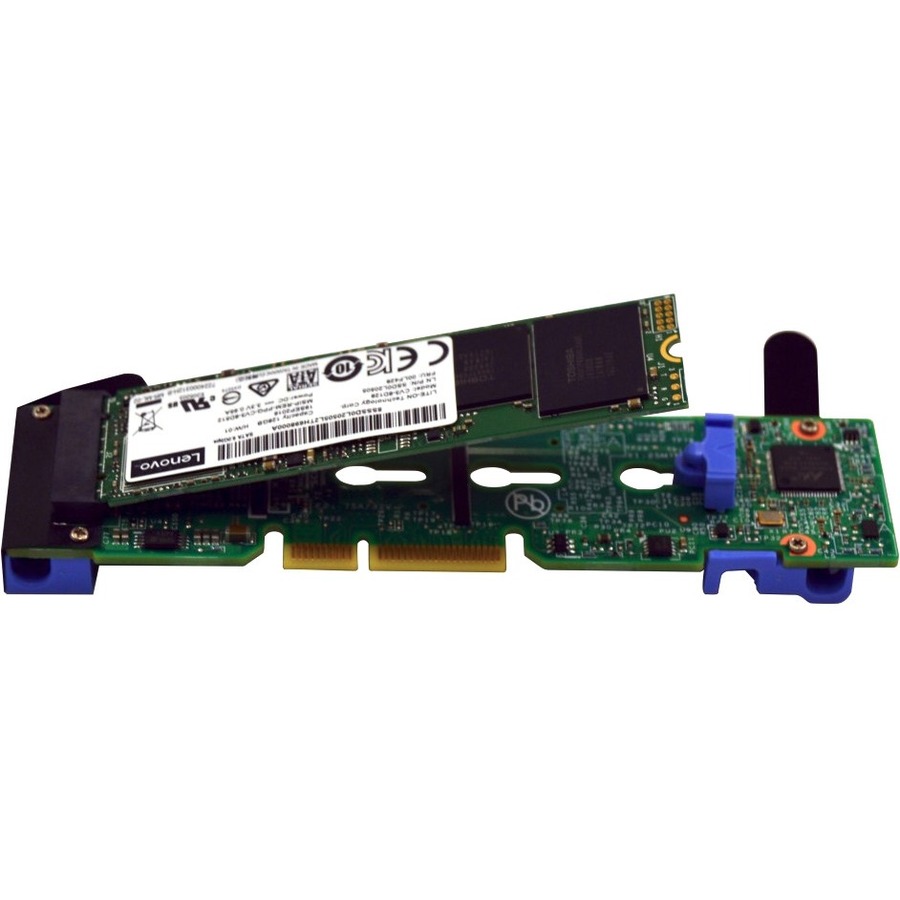

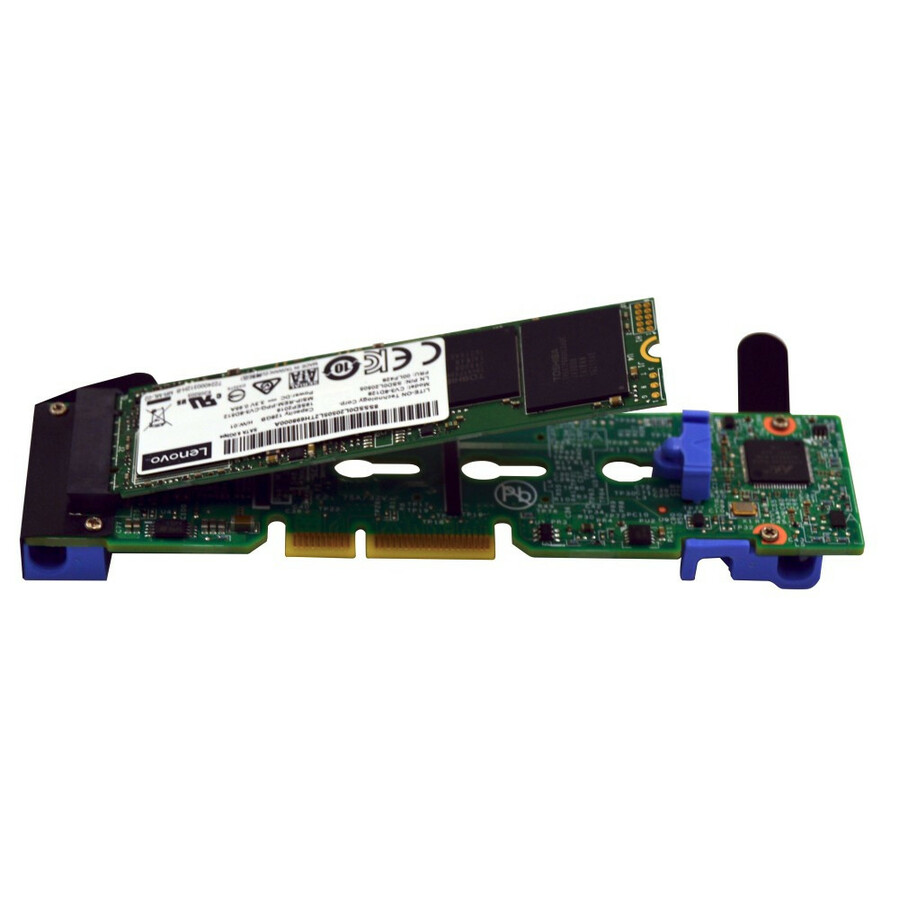

Lenovo ThinkSystem M.2 SATA/NVMe 2-Bay Enablement Kit
- SKU
- 4Y37A09738
- Category
- Hard Drive Adapters
$307.55
Back ordered
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4Y37A09738
- Category
- Hard Drive Adapters
Overview
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives either with the addition of a supported M.2 adapter or module, or directly on the system board.
Highlights
- Supports one or two M.2 drives, either SATA or NVMe
- When two drives installed, they must be either both SATA or both NVMe
- Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
- JBOD support only; no RAID support
- Either 6Gbps SATA or PCIe 3.0 x1 interface to the drives depending on the drives installed
- Supports monitoring and reporting of events and temperature through I2C
- Firmware update via Lenovo firmware update tools
Specifications
| Additional Warranty Information | One-year, customer-replaceable unit (CRU) limited warranty |
|---|---|
| Product Type | M.2/SATA to PCI Express Adapter |
| Manufacturer Part Number | 4Y37A09738 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 0.63 oz |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem M.2 SATA/NVMe 2-Bay Enablement Kit |
| Brand Name | Lenovo |
