Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FWD-LT-UTL-16-21-D
Category
Lighting Fixtures
Overview
Forward Family Utility Lighting shall be Middle Atlantic Products model # FWD-LT-UTL-__-__-D (refer to chart). FWD-LT-UTL shall have an overall height of __ (refer to chart.) FWD-LT-UTL shall have a light temperature of 4,000K, and provide __lm (refer to chart). FWD-LT-UTL shall have a 1 rackspace
IR/dimming module that allows for brightness setting and automatic on/off when door is opened. FWD-LT-UTL shall include 2 lights that mount to the rack side and are angled 45°. FWD-LT-UTL shall have a 110V UL Listed power supply with an output of 24VDC, 2 Amps. FWD-LT-UTL shall have an input volt-age range of 100VAC to 240VAC, an input frequency range of 50/60Hz, and a max AC current draw of 1.6A AC. FWD-LT-UTL shall be warrantied to be free from defects in materials and workmanship under normal use and conditions for a period of 3 years. FWD-LT-UTL shall be UL Listed and CE Marked.
Warranty
Limited Warranty: 3 Year
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Drop into Lever Lock compatible rackrail brackets on a BGR Family enclosure for quick tool-free installation

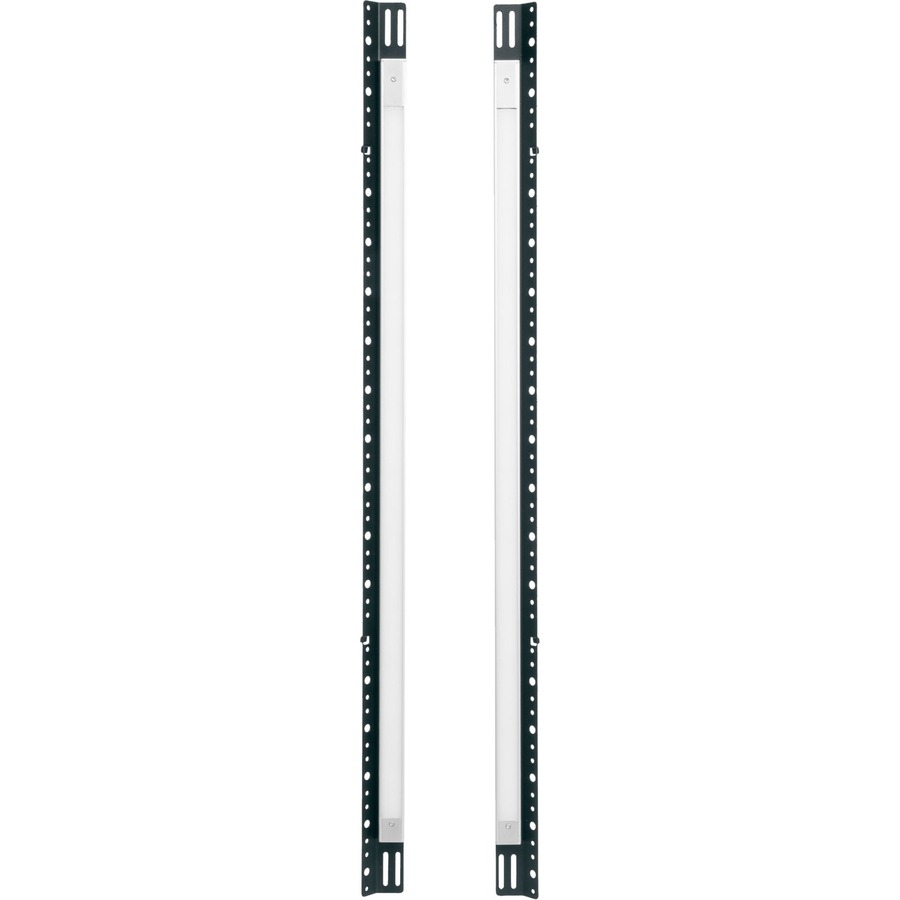

Includes (2) full height bright white lights
Unmatched visibility with lighting fixed at an optimal 45º angle facing into the enclosure
Includes IR sensor for automatic on/off with the door
Includes dimmer allowing you to set the light brightness to your preference

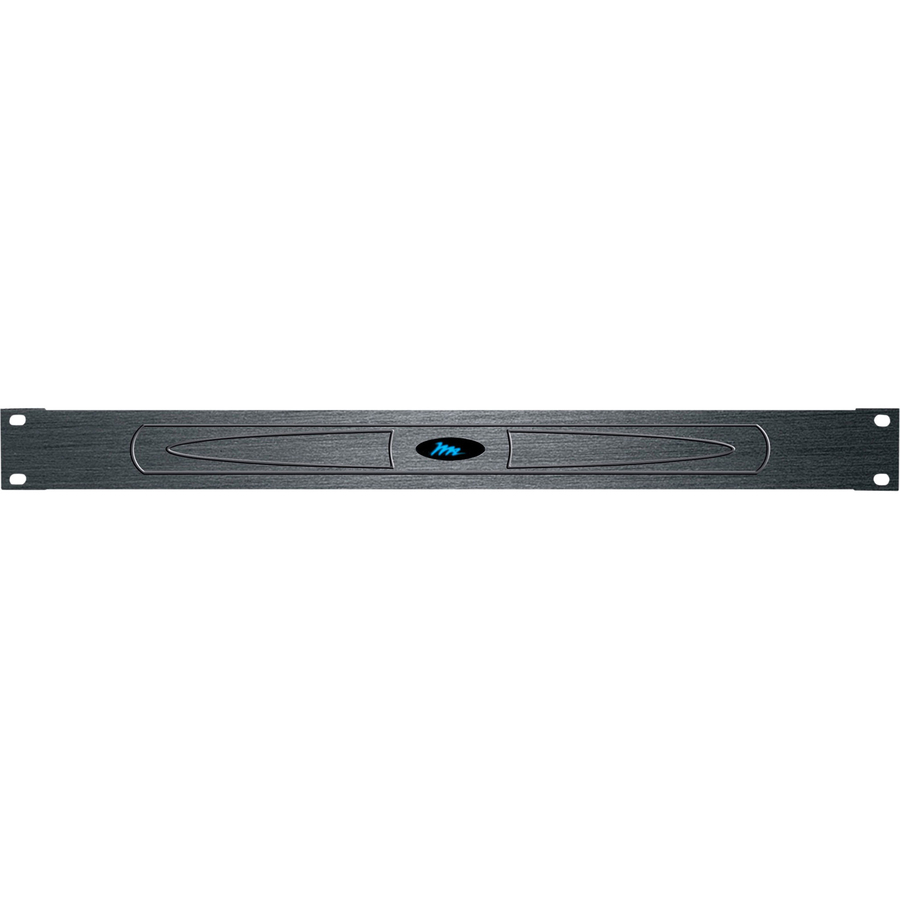

Includes UP1 panel to mount IR/Dimming module on the rackrail
Mount anywhere from front to rear
Includes all hardware for mounting in any other Middle Atlantic enclosure
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
FWD-LT-UTL-16-21-D
Brand Name
Middle Atlantic
Product Line
Forward
Product Model
FWD-LT-UTL-16-21-D
Product Name
Forward FWD-LT-UTL-16-21-D Rack Light
Packaged Quantity
2 / Set
Product Type
Rack Light
Physical Characteristics
Width
0.9"
Depth
0.4"
Power Description
Power Source
Electric
Input Voltage
230 V AC
Power Consumption
6 W
Product Information
Bulb/Tube Type
LED
Maximum Bulb/Tube Power
6 W
Light Color
Bright White
Light Output
1140 lm
Mount Type
Rail-mountable
Application/Usage
Rack
Switch Type
Touch Sensor, On/Off
Features
IR Sensor, Dimmable, Automatic On/Off
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
Forward FWD-LT-UTL-16-21-D Rack Light
IR sensor for automatic on/off with the door
Dimmer
UP1 panel to mount IR/Dimming module on the rackrail
All hardware for mounting in any other Middle Atlantic enclosure
