Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
C2G54265
Category
Cable Extenders
Overview
C2G's Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.
No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.
This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.
Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives - ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.
This USB extender supports data transmission only-no DisplayPort Alt Mode video support.

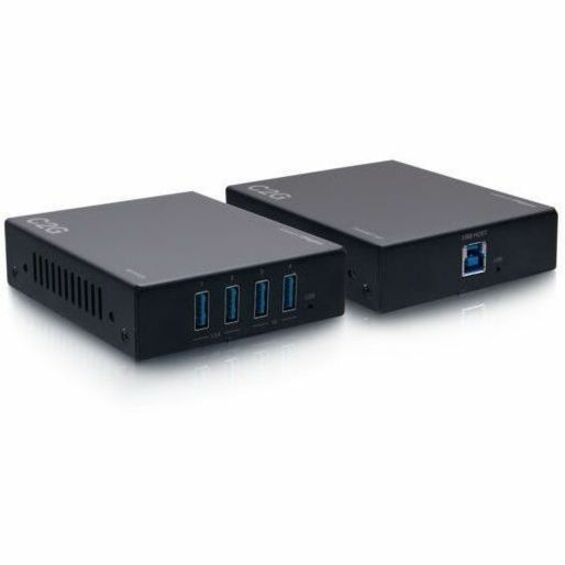

This package includes:
1 × USB 3.0 Extender (Transmitter)

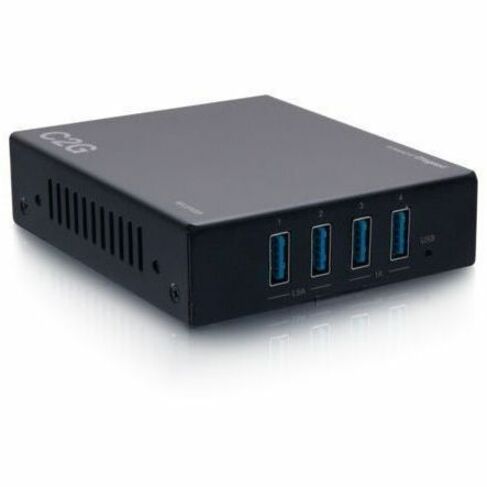

1 × USB 3.0 Extender (Receiver)
1 × 24V/2A Power Supply with US/EU/UK/AU Plugs
2 × 4pin-3.5mm Phoenix Connector (male)
4 × Mounting Ear
8 × Machine Screw (KM3*4)
Highlights
Extension of USB 3.2 data up to 328 ft (100m)over Cat6a cable
USB 3.2 connectivity with data transfer rateup to 5Gbps
Backwards compatible with USB 2.0 and 1.1
Supports RS-232 pass-through and FSYNCGPIO pass-through (for industry camera use)
Supports bi-directional 24V PoC
Plug and play - no drivers required
Perfect for extending cameras, white boards,storage drives, and other high bandwidthUSB devices
Specifications
Package Contents
1 × USB 3.0 Extender (Transmitter)
1 × USB 3.0 Extender (Receiver)
1 × 24V/2A Power Supply with US/EU/UK/AU Plugs
2 × 4pin-3.5mm Phoenix Connector (male)
4 × Mounting Ear
8 × Machine Screw (KM3*4)
Product Type
USB Extender
Input Voltage
24 V
Manufacturer Part Number
C2G54265
Limited Warranty
5 Year
Length
3.4"
Manufacturer
Legrand Group
Product Name
C2G Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
Product Line
Superbooster
Brand Name
C2G
Country of Origin
China
Height
1"
Width
3.4"
Depth
3.9"
Maximum Data Transfer Rate
640 MB/s
USB
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
7
TAA Compliant
Yes
Maximum Extended Range
328.08 ft
Product Color
Black
Color Family
Black
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
