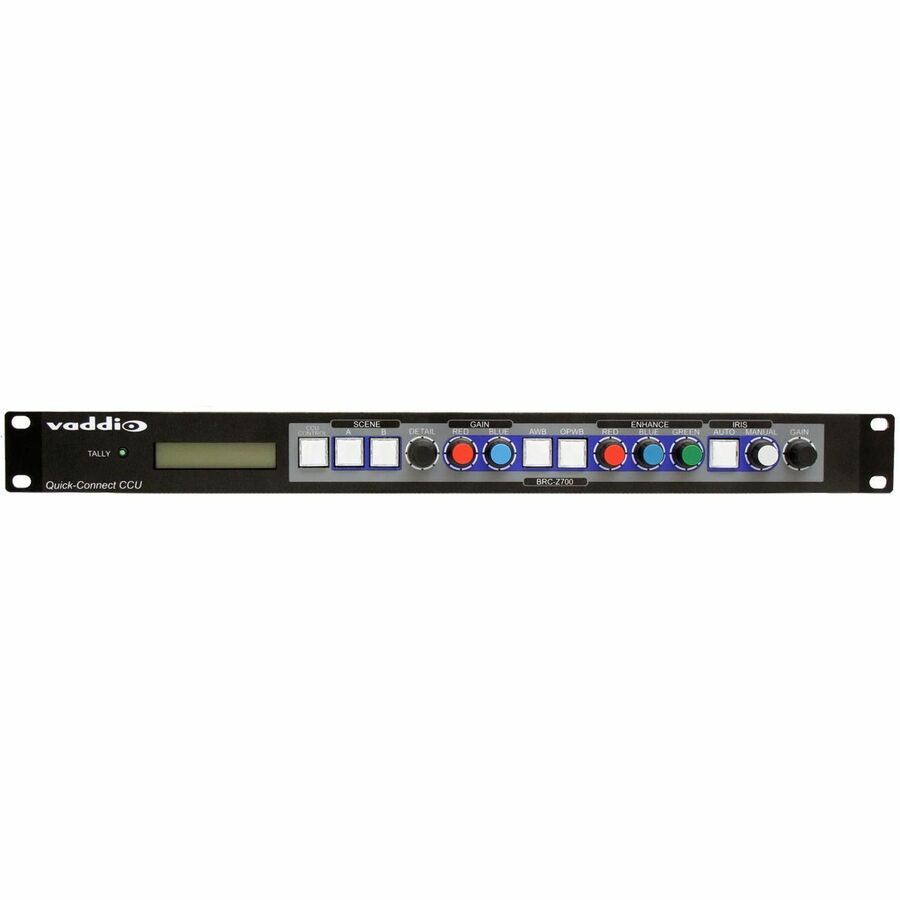

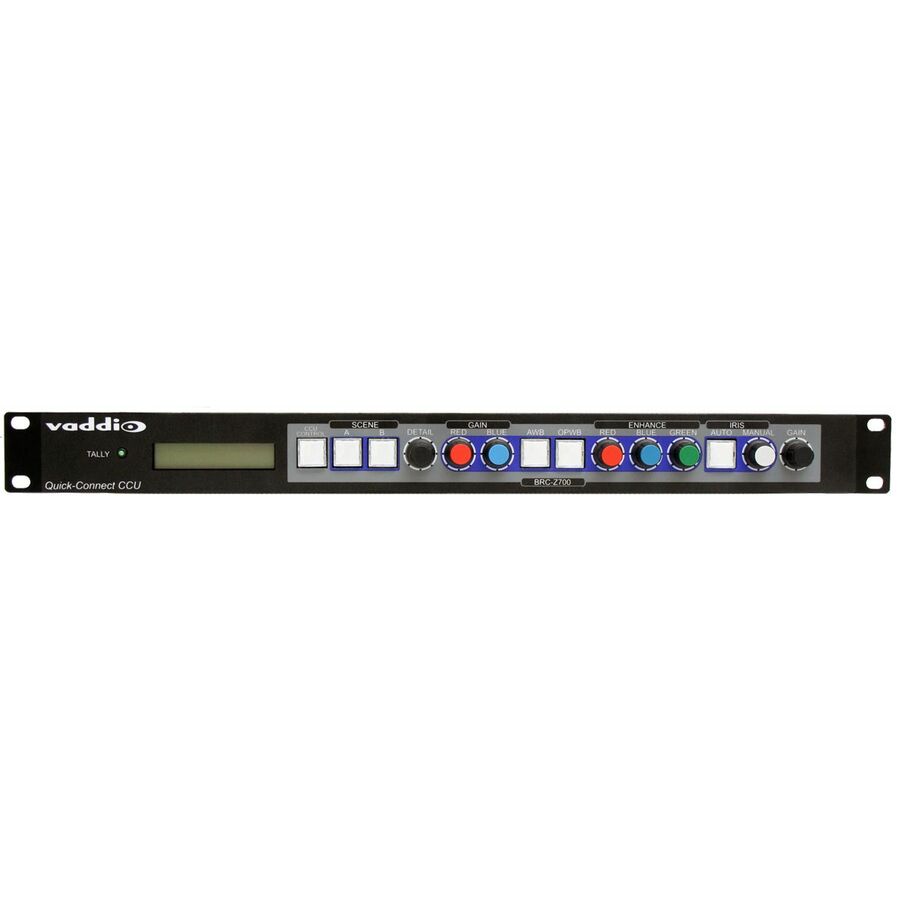

Vaddio Quick-Connect CCU for BRC-Z700

High Definition Pan/Tilt/Zoom Camera Control Unit based on the Sony BRC-Z700 (camera not included).

Key Features:

• Red and blue gain, detail, color and hue gain, WB shift, iris and gain controls

• Video, power and control run over Cat. 5 cabling up to 500 feet

• Heavy-duty wall mount bracket and power supply

• Component, Y-C, and Composite signal outputs available from the CCU (not all cameras support all signals)

THIS PRODUCT HAS BEEN DISCONTINUED.

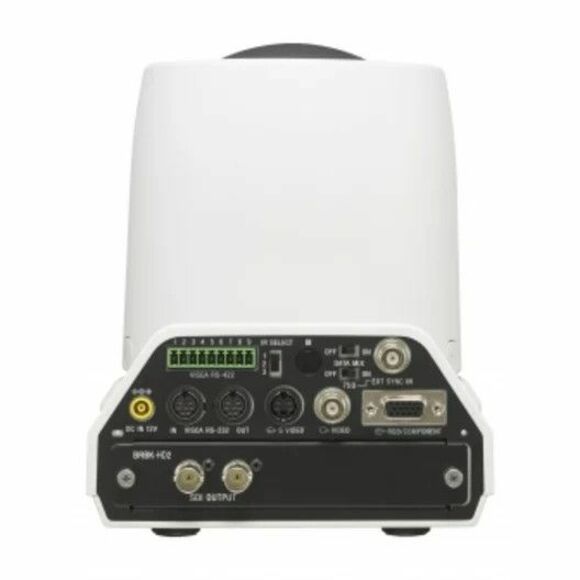

The Quick-Connect CCU Z700 is built around the Sony BRC-Z700 high definition pan/tilt/zoom camera, with 3-CMOS mega-pixel sensors and a 20x optical zoom lens.

The Quick-Connect CCU Z700 enables the adjustment of color, gain and iris functions on the camera with the turn of a knob. These controls allow the camera to deliver a more accurate representation of the image that is being captured and color match and shade multiple cameras. User-defined adjustments may be stored using two Scene buttons.

High speed differential signaling is used with the Quick-Connect CCU Z700 to deliver high quality HD and SD video over standard Cat. 5 cabling. Adjustments allow the video to be extended up to 500 feet from the Quick-Connect CCU with virtually no loss in video quality or additional latency.
