1-gang - Aluminum - Aluminum, Polyvinyl Chloride (PVC) - 1 x HDMI Port(s)
MSRP$62.99
$50.69
Save 20%In stock: 2,804
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

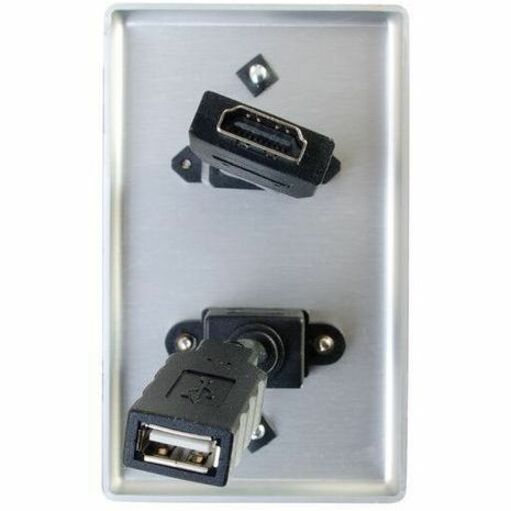

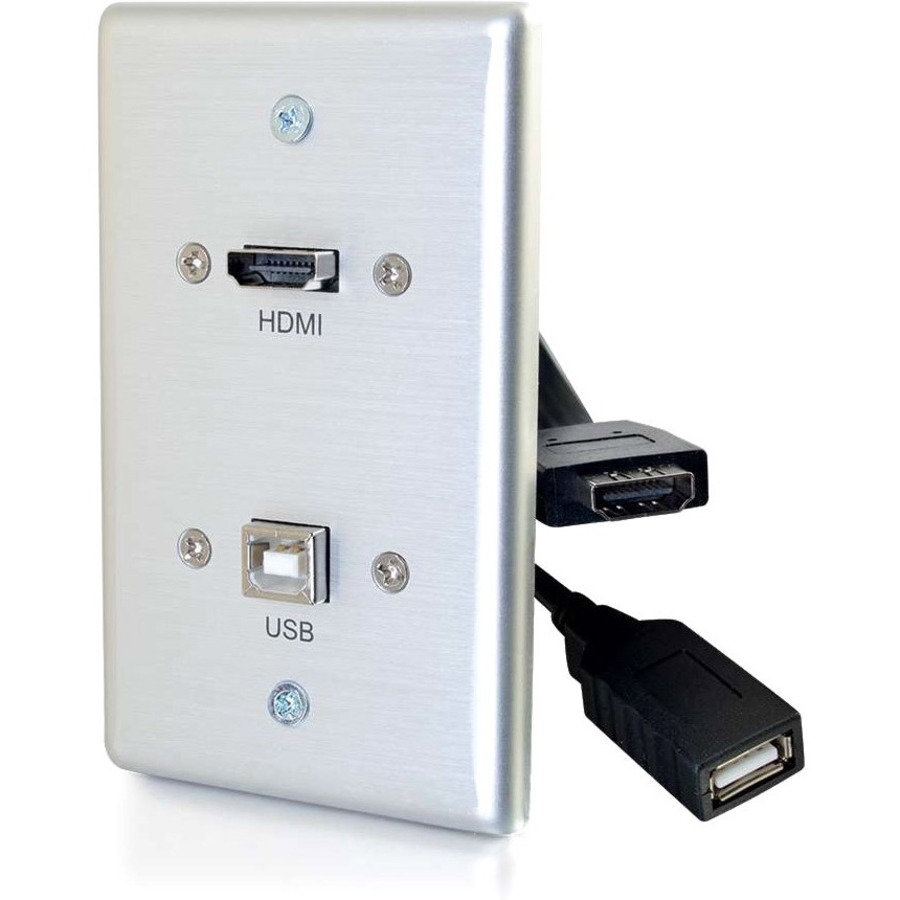

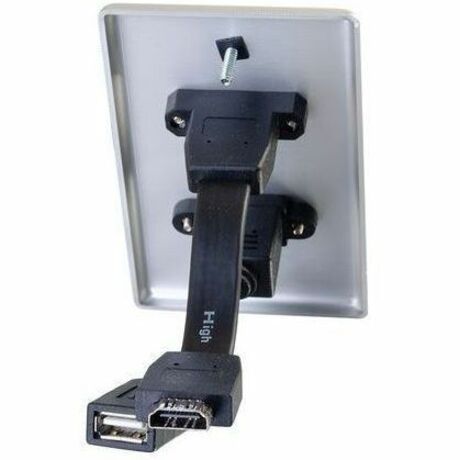

The HDMI and USB Pass Through Single Gang Wall Plate is perfect for the transition to in-wall cabling. This solution offers a clean, professional look and is ideal for classrooms, conference rooms and houses of worship. Convenience The HDMI and USB pass-through ports include thin, flexible pigtails that accommodate the tight bend radius required for installations within a standard junction box. Durability Constructed of high quality aluminum, this wall plate is designed for durability and a long life in commercial environments where constant wear and tear causes damage. Additional Technical Specifications HDMI Electrical Specifications: Voltage Rating: 30V Nominal Capacitance: 58PF/M Conductor Resistance: @ 20°C max, 30AWG: 376.96{OHM]/KM Insulation Resistance: 10M /km @ 20°C DC 500V Attenuation: @ 0.30~825MHz 5dB/3.0M @ 825~2475MHz 12dB/3.0M @ 2475~4125MHz 20dB/3.0M @ 4125~5100MHz 25dB/3.0M USB Electrical Specifications: Voltage Rating: 30V Conductor Resistance: @ 20°C max, 28AWG: 232{OHM]/KM; 24AWG: 93.25/KM Insulation Resistance: 10M /km @ 20°C DC 500V Time Delay: 5.2ns/m (max) Impedance: 90±15% Propagation Delay Skew: 100ps (Full-/High-speed only) Attenuation: (Full-/High-speed only) Differential Impedance: cable@200ps Tr(10-90%) 90±7 Intra-Pair Skew: 15ps/m@200ps Tr(10-90%) Attenuation/Insertion Loss: 1.5dB/[email protected] 5.0dB/[email protected] 7.5dB/[email protected] 25dB/[email protected] Differential to Common mode(max): 20dB/[email protected]~7.5GHz Next: [email protected] [email protected] [email protected] [email protected] Physical Specifications: Jacket: Black PVC HDMI Jacket Thickness: 0.51mm HDMI Minimum Bend radius: 30mm USB Jacket Thickness: 0.38mm Min AVG USB Minimum Bend radius: R47mm Approvals: CE and conforms to 2011/65/EU ROHS 2 Conductor (2 Conductors, 5 Pair): Conductor: 30AWG(7/0.10TC)X5PR Insulation: FM-PE, ID: 0.75±0.05mm Color: Brown/White, Red/White, Orange/White, Green/White, Blue/White Drain: 30AWG(7/0.10TC)X5 Shield: AL Foil WrapX5 Braid: (16/5/0.08TC)X5 Conductor (4 Conductors): Conductor: 30AWG(7/0.10TC)X4C Insulation: PP, ID: 0.55±0.05mm Color: Red/Yellow/Orange/White Drain: 30AWG(7/0.10TC) Shield: AL Foil Wrap Conductor (2 Conductors): Conductor: 24AWG(7/0.2TC)X2 Insulation: SR-PVC ID: 0.23±0.05 Color: Red/Black Conductor (2 Conductors, 1 Pair): Conductor: 28AWG(7/0.127TC)X2 Insulation: HD-PE, ID: 0.90±0.05mm(Green/White) Drain: 28AWG(7/0.127TC) Shield 1: AL Foil Wrap Shield 2: Braid(16*5/0.10TC) Wall Plate Material: Brushed Aluminum 5052 Hardness: HRB22 Anodizing
Limited Warranty: Lifetime
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 39874 |
| Brand Name | C2G |

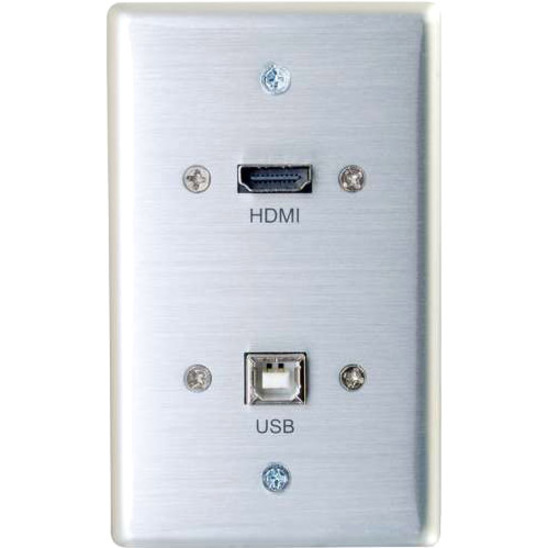

| Product Name | HDMI and USB Pass Through Single Gang Wall Plate - Brushed Aluminum |
| Product Type | Faceplate |
| Interfaces/Ports | |
| Number of HDMI Ports | 1 |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Brushed Aluminum |
| Product Material | Aluminum, Polyvinyl Chloride (PVC) |
| Height | 4.5" |
| Width | 2.8" |
| Weight (Approximate) | 4.74 oz |
| Technical Information | |
| Number of Gangs | 1 |
| Mount Type | Wall Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Application/Usage | Commercial, Residential |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
