Uniqcli
4G LTE IIoT Router for Japan
Lantronix

4G LTE IIoT Router for Japan

4G - LTE, LTE Cat 1 - 1 x Network Port - USB - Fast Ethernet - VPN Supported - Wall Mountable, DIN Rail Mountable

SKU
NTC-223-01-01
Category
Wireless Routers

$622.18

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
NTC-223-01-01
Category
Wireless Routers

Overview

The NTC-220 is a robust cost-effective device. Supporting 4G LTE Category 1, the NTC-220 is ideal for use-case scenarios requiring reliable, yet highly secure connectivity.

RELIABLE CONNECTIVITY

The NTC-220 supports 4G LTE Category 1, which enables the next generation connectivity for a number of mission critical applications. Supporting all major 4G bands, the NTC-220 is the perfect device choice for deployments across the globe.

EXPANDING CAPABILITIES WITH CUSTOM SOFTWARE APPLICATIONS

The NTC-220 features the Linux based Lantronix OS, empowering solution architects and system integrators to create their own applications using Lantronix's Software Development Kit (SDK)

RELIABLE ASSET TRACKING

Built-in high-performance GPS enables the NTC-220 to track and monitor vehicles, trucks, heavy construction machines and other mobile assets from any location.

REMOTE MANAGEMENT

IoT deployments in isolated locations can be managed remotely in real time to reduce site visits and manual maintenance costs. Technicians can receive status alerts, extract and analyse data, upgrade firmware over the air, configure and update the NTC-220 from headquarters or any other location using a wide range of management protocols, including OMA LWM2M, TR069, SNMP, HTTP/HTTPS, Telnet/CLI and SMS.

Highlights

  • 4G LTE Cat 1 (10 Mbps)
  • Software development capability (SDK)
  • Integrated GPS for reliable asset tracking (not available on NTC-223)

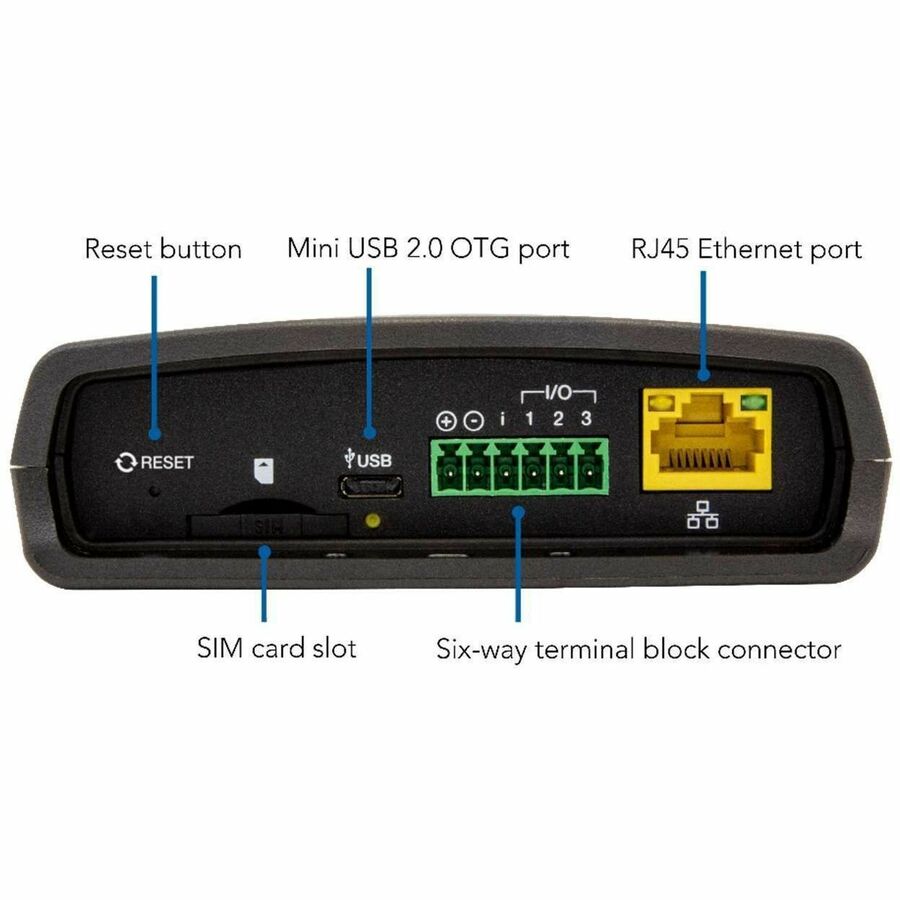

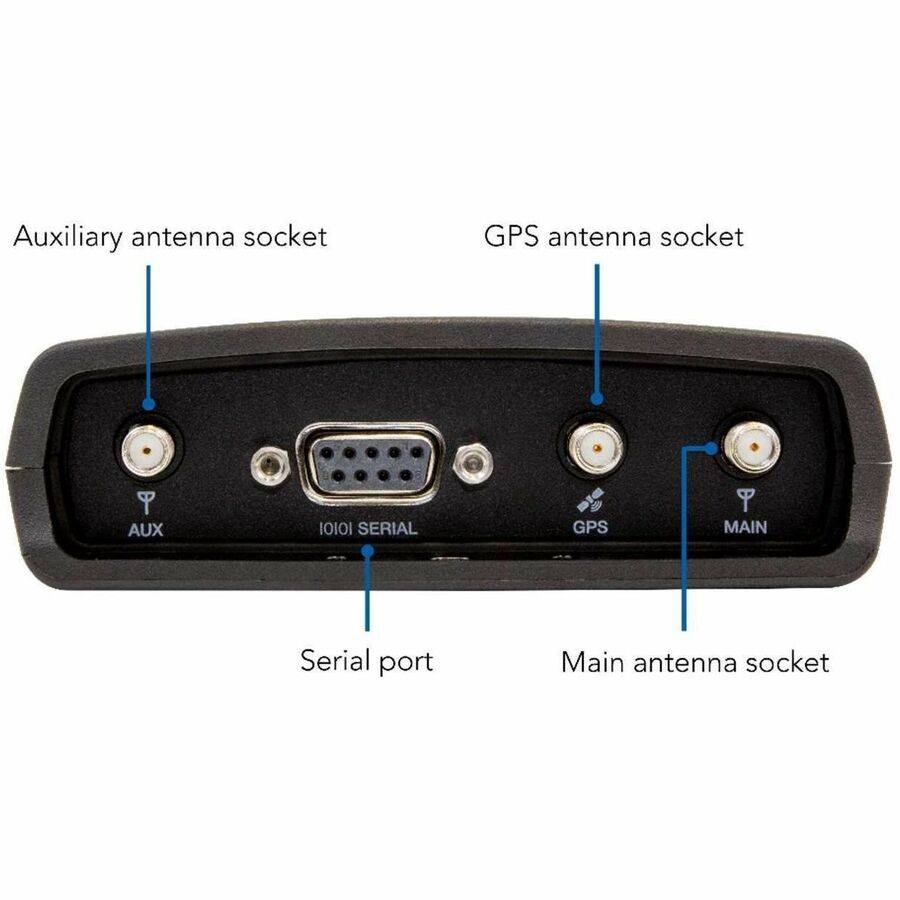

  • An Ethernet port, a serial port and software configurable I/O ports for connection flexibility
  • USB OTG port to connect a local storage device
  • Ignition sense capability and a wide input voltage range for vehicular applications
  • Rugged industrial design for harsh environments
  • Easy and clear LED status display for connection status, connected network type, and connection errors
  • Remote device configuration, management and firmware upgrade

Specifications

Package Contents
  • NTC-223-01-01 Modem/Wireless Router
  • Screw Type Terminal Block
  • Plastic Bracket
Product TypeModem/Wireless Router
Manufacturer Part NumberNTC-223-01-01
Standard Memory256 MB
VPN SupportedYes
Weight (Approximate)7.80 oz
Form FactorWall Mountable, DIN Rail Mountable
ManufacturerLantronix, Inc
Product ModelNTC-223-01-01
Product NameNTC-223-01-01 Modem/Wireless Router
Processor Speed1 GHz
Processor TypeCortex A8
Product SeriesNTC-220
Brand NameLantronix
Height5.6"
Width4.2"
Depth1.3"
Flash Memory Capacity512 MB
Broadband Transmission TechnologyCellular
Ethernet TechnologyFast Ethernet
USBYes
Number of Network (RJ-45) Ports1
Cellular Data Connectivity TechnologyLTE, LTE Cat 1
Cellular Generation4G
Total Number of Network Ports1
Number of SIM Card Supported1
SIM Size SupportedMini
