M110 Series Overview
Lantronix Mobility Solutions M110 modems are engineered to enable seamless connectivity for a wide array of M2M and IoT applications. These devices facilitate internet access through a serial port for PLCs, meters, vending machines, and more. The M110 modem transforms how data is transported from industrial devices to data control servers, empowering businesses with real-time data monitoring, management, and control capabilities, thereby enhancing operational efficiency and decision-making processes.
Compact Design

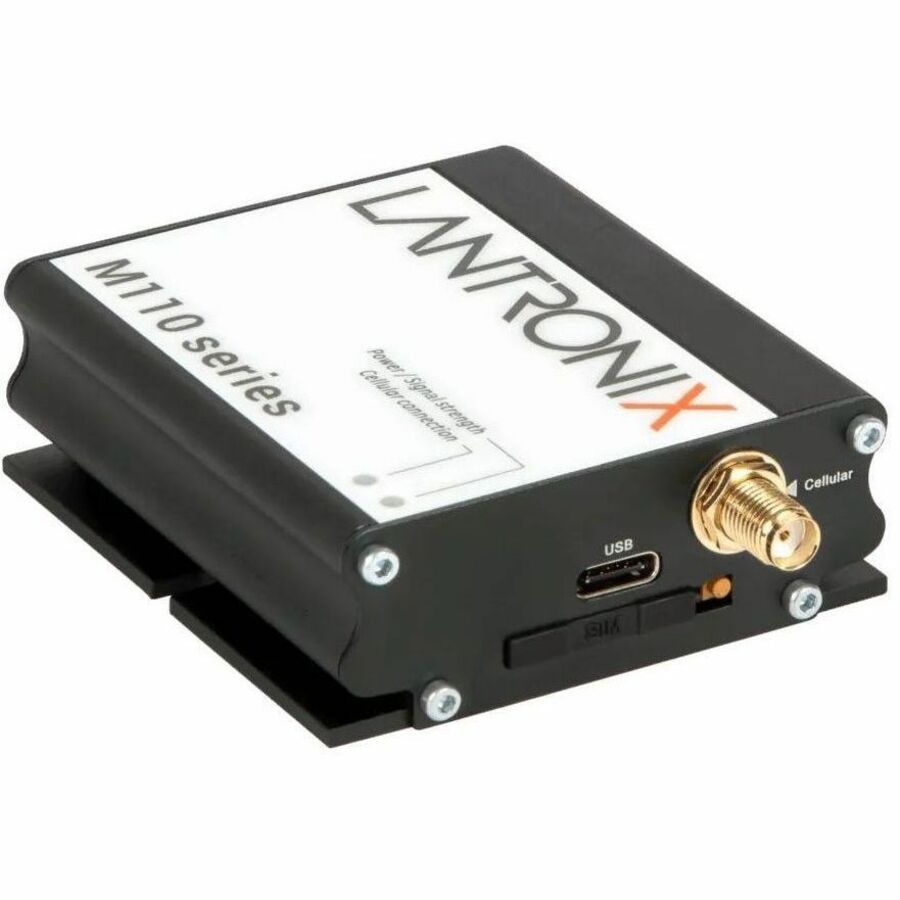

Lantronix M110 series modems are a smart modem supporting serial RS-232 and USB communication on a small form factor for fast and seamless integration with industrial equipment such as electricity meters, programmable logic controllers, lifts and vending machines.
Multiple Cellular Network Support in 4G LTE-M1 & Cat 1
The M110 modem supports cutting-edge LTE standards including LTE M1, Cat 1, and Cat-1BIS. This compatibility ensures that devices connected to carrier networks are not only more cost-effective but also benefit from enhanced power efficiency.
Low Power Consumption for Remote IoT Application
Deploying IoT devices in remote locations demands minimal power usage, especially when electricity is sporadic and devices must operate on battery or solar power for extended periods. The M110 modem is exceptionally suited for such environments. It boasts an ultra-low power consumption of just 21 mA in idle mode. This efficiency enables devices to achieve up to a month of autonomy, waking only when communication is initiated. It is an ideal solution for ensuring continuous, reliable operation without a constant power supply.
Intelligent Modem Running mPack Software
The M110 modems are designed for seamless retrofit integration, offering an automatic TCP dial-up function for easy communication with serial devices. With flexible options like dial-up, permanent TCP/UDP client/server, and on-demand client modes, they simplify deployment and enhance connectivity, making them a versatile choice for diverse applications.
Optional RS485 with SNAP CAP?

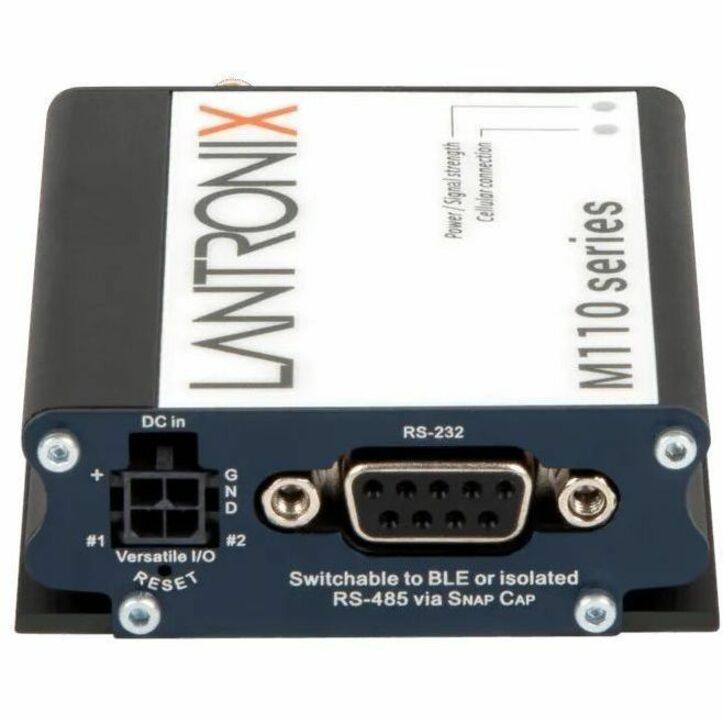

The M110 series swiftly upgrades its RS-232 port, using a 9-pin sub-D connector, to an isolated RS-485 port on a 5-pin, 3.5 mm pitch COMBICON connector, supporting half or full-duplex modes (user-selectable). Featuring an integrated transformer, it supports cabling lengths up to 1.5 km.
Lantronix Software Services
Percepxion - secure cloud platform to manage remote IoT gateways through a single pane of glass. (M114Bis Only)
Limited Warranty: 1 Year
A GLOBAL LEADER IN ENTERPRISE IoT SOLUTIONS With more than two decades of experience in creating robust machine to machine (M2M) technologies, Lantronix is an innovator in enabling our customers to build new business models and realize the possibilities of the Internet of Things. Our connectivity solutions are attached to and deployed inside millions of machines serving a wide range of industries, including medical, security, industrial, transportation, retail, financial, environmental, data center, education and government. Out-of-Band Management AI-Driven Automation and Console Access for Enterprise Networks While enterprise networks vary widely in form and function, good network management is always essential. Lantronix’s complete out-of-band portfolio enables you to choose a console server sized to each deployment, the type of OOB link and the types of serial console connections needed. Our single pane of glass management platform provides the remote access, reporting and compliance needed for enterprise networks. You can also choose between traditional remote console access and AI-driven out-of-band (OOB) management — an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably, and automatically. Able to secure access to remote gear during an outage, it also automates many daily tasks that can unnecessarily consume much of a network admin’s day. IoT System Solutions IoT-Enable All Your Machines & Devices Our portfolio of M2M and IoT Gateways includes a wide range of solutions designed to deliver secure connectivity for virtually any electronic device. From medical devices to industrial machinery, Lantronix provides OEMs and system integrators with secure enterprise-class solutions that IoT-enable existing devices without the need for product redesign. IoT Gateways IoT Building Blocks IoT Building Blocks Embedded WiFi & Wired Solutions The Lantronix full suite of networking solutions provides OEMs with everything needed to enhance the value and utility of designs, speed time to market and build and deploy IoT connected devices. Embedded inside modern electronic systems and equipment, our IoT building block solutions deliver secure network connectivity, application hosting, protocol conversion and many other functions. Management Software Accelerate IoT Edge Solutions The Percepxion™ IoT edge solutions platform provides comprehensive device life cycle management, application integration and data analytics, so you can focus on your business. Accelerate your time to market and simplify your user experience ― all through a single pane of glass Management Software
| General Information | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | M114B00FS |
| Brand Name | Lantronix |
| Product Series | M110 |
| Product Model | M114 |
| Product Name | M114 Radio Modem |
| Product Type | Radio Modem |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Cellular Generation | 4G |
| Physical Characteristics | |
| Product Material | Aluminum Alloy |
| Height | 2.6" |
| Width | 2.4" |
| Depth | 0.9" |
| Weight (Approximate) | 3.35 oz |
| Power Description | |
| Power Source | DC |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Features | LTE |
