2 x Number of Power Supplies Supported - 6 Slot - 1U - Rack-mountable
MSRP$891.00
$681.44
Save 24%Special order — estimated available by September 10, 2026.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

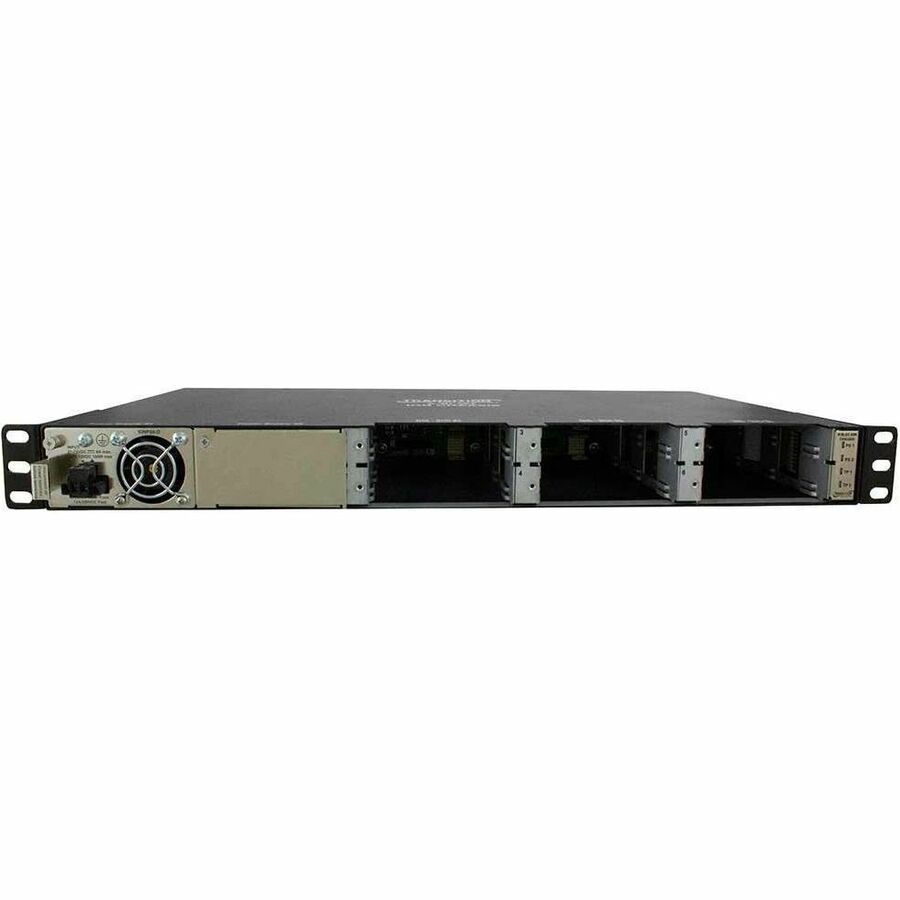

The ION106 is an intelligent, multi-service integration platform that offers first-rate solutions for integrating, optimizing and navigating networks, all in a 19" rack mountable 1RU form factor.
By cost-effectively integrating copper-based equipment into a fiber infrastructure, the ION Platform equips networks for the bandwidth, distance, and security demands of today, tomorrow, and every point in between. Designed for service providers, data centers, and core network applications, the ION Platform provides the secure network management of fiber interface points required for both carrier-class and enterprise-class services.
Media conversion technology allows for the integration of fiber optic cabling into environments with copper-based equipment. Lantronix's ION media converters provide a quick, inexpensive method for connecting new or embedded fiber with copper-based networking devices. The ION Platform accommodates a variety of modules and interface devices supporting multiple protocols and networking environments, including Ethernet and TDM networks. With optimum flexibility built in, ION is equally suited for either single-unit network edge or high-density applications within enterprises or central offices. The ION Platform provides simple navigation of all the connected network interfaces, allowing various components to be easily configured, monitored and managed remotely while providing a high level of secure access to the management data. Lantronix's ION solutions allow users to easily integrate copper and fiber in order to extend networks within a building, between buildings, or throughout a campus where multiple points of fiber integration and secure network management of the fiber interface devices is essential.
An end-to-end fiber integration solution can be achieved by pairing the modules in an ION chassis with the modules in another ION chassis or an ION stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module is required. The ION Management Module connects to the chassis backplane and communicates with the individual cards in the ION Chassis. Each slide-in module for the ION Chassis has specific features and functions that are controlled via the ION Management Module. A network administrator can configure, monitor and troubleshoot ION slide-in modules remotely via the ION Management Module.
Limited Warranty: Lifetime
A GLOBAL LEADER IN ENTERPRISE IoT SOLUTIONS With more than two decades of experience in creating robust machine to machine (M2M) technologies, Lantronix is an innovator in enabling our customers to build new business models and realize the possibilities of the Internet of Things. Our connectivity solutions are attached to and deployed inside millions of machines serving a wide range of industries, including medical, security, industrial, transportation, retail, financial, environmental, data center, education and government. Out-of-Band Management AI-Driven Automation and Console Access for Enterprise Networks While enterprise networks vary widely in form and function, good network management is always essential. Lantronix’s complete out-of-band portfolio enables you to choose a console server sized to each deployment, the type of OOB link and the types of serial console connections needed. Our single pane of glass management platform provides the remote access, reporting and compliance needed for enterprise networks. You can also choose between traditional remote console access and AI-driven out-of-band (OOB) management — an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably, and automatically. Able to secure access to remote gear during an outage, it also automates many daily tasks that can unnecessarily consume much of a network admin’s day. IoT System Solutions IoT-Enable All Your Machines & Devices Our portfolio of M2M and IoT Gateways includes a wide range of solutions designed to deliver secure connectivity for virtually any electronic device. From medical devices to industrial machinery, Lantronix provides OEMs and system integrators with secure enterprise-class solutions that IoT-enable existing devices without the need for product redesign. IoT Gateways IoT Building Blocks IoT Building Blocks Embedded WiFi & Wired Solutions The Lantronix full suite of networking solutions provides OEMs with everything needed to enhance the value and utility of designs, speed time to market and build and deploy IoT connected devices. Embedded inside modern electronic systems and equipment, our IoT building block solutions deliver secure network connectivity, application hosting, protocol conversion and many other functions. Management Software Accelerate IoT Edge Solutions The Percepxion™ IoT edge solutions platform provides comprehensive device life cycle management, application integration and data analytics, so you can focus on your business. Accelerate your time to market and simplify your user experience ― all through a single pane of glass Management Software
| General Information | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | ION106-D |
| Brand Name | Lantronix |
| Product Line | ION |
| Product Series | ION106 |
| Product Model | ION106-D |
| Product Name | 6-Slot Chassis for ION Slide-in-Modules |
| Product Type | Media Converter Chassis |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.8" |
| Width | 17" |
| Depth | 10" |
| Power Description | |
| Input Voltage | -21 V DC, -72 V DC, 21 V DC, 72 V DC |
| Number of Power Supplies Supported | 2 |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
