Honeywell GRANIT ULTRA 2105iXLR Barcode Scanner Kit
Honeywell International

Honeywell GRANIT ULTRA 2105iXLR Barcode Scanner Kit

Cable/Wireless Connectivity - 98.43 ft Scan Distance - 1D, 2D - Laser - Imager - Area - Bluetooth, Radio Frequency - USB, Serial, Keyboard Wedge - Red - IP65, IP68 - Serial - Warehouse, Distribution, Manufacturing

SKU
2105IXLR-3SER-CLHN
Category
Barcode Scanners

MSRP$1,895.16

$1,177.28

Save 38%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
2105IXLR-3SER-CLHN
Category
Barcode Scanners

Overview

Ultra-Rugged Cordless Area-Imaging Scanner

Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.

ULTRA SCAN PERFORMANCE

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI(Artificial Intelligence) algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP1, enabling improved productivity

ULTRA DURABILITY

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.

ULTRA EASE OF USE

Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor

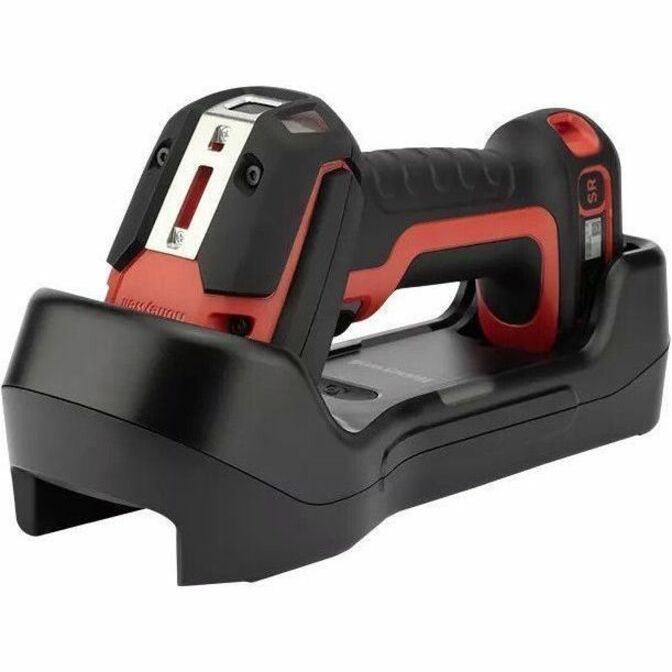

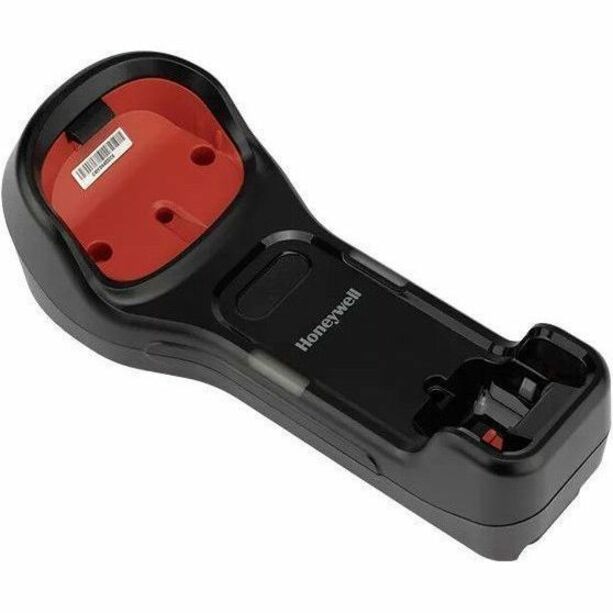

The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.

Warranty

Limited Warranty: 3 Year

Highlights

  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser scan engine guarantees rapid error free data entry
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base

Specifications

Application/UsageWarehouse, Distribution, Manufacturing
Barcode Symbology Supported1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar 2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode Digital Watermarking: Digimarc OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • GRANIT ULTRA 2105iXLR Barcode Scanner
  • Battery (Battery-SCN11)
  • RS232 Cable (CBL-020-300-C00)
  • Horizontal Base(CCB23-100BT-07N)
Host InterfaceUSB, Serial, Keyboard Wedge
Product TypeBarcode Scanner Kit
Manufacturer Part Number2105IXLR-3SER-CLHN
Limited Warranty3 Year
Weight (Approximate)14.99 oz
Connectivity TechnologyCable/Wireless
DurabilityDrop Resistant
FeaturesNotification LED, Beep, Vibration, Ergonomic Design, Data Formatter
Form FactorHandheld
Length7.7"
ManufacturerHoneywell International, Inc
Product Model2105iXLR
Product NameGRANIT ULTRA 2105iXLR Barcode Scanner Kit
Product LineGranit Ultra
Brand NameHoneywell
Scanning Distance98.43 ft
Light SourceLaser
Height5.5"
Width3"
Battery Capacity3300 mAh
BluetoothYes
Maximum Battery Run Time14 Hour
Scanner RangeUltra Long Range
Drop Specification
  • 3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
  • 2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
  • 2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity
Scan PatternArea
Image Sensor TypeImager
Radio FrequencyYes
Illumination TypeLED
Standby Current120 mA
Scan ModeTrigger
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Product ColorRed
Color FamilyRed
Illumination ColorGreen
Ingress Protection (IP) RatingIP65, IP68
RuggedYes
Cable Type IncludedSerial
Scanning Capability1D, 2D
Field of View (Horizontal)45°
Field of View (Vertical)14°
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Maximum Operating Power Consumption7.50 W
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)5 mil
Maximum Element Resolution (Code 39)100 mil
Minimum Element Resolution (DataMatrix)10 mil
Maximum Element Resolution (DataMatrix)100 mil
Air Electrostatic Discharge (+/-)20kV
Contact Electrostatic Discharge (+/-)8kV
Operating Temperature-4°F (-20°C) to 122°F (50°C)
Image Sensor Resolution1900 x 800
Humidity (Non-condensing)95%
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
AI-poweredYes
