Honeywell Granit Ultra 2105i Ultra-Rugged Cordless Area-Imaging Scanner
Honeywell International

Honeywell Granit Ultra 2105i Ultra-Rugged Cordless Area-Imaging Scanner

Wireless Connectivity - 6.77" Scan Distance - 1D, 2D - LED - Imager - Area - Bluetooth, Radio Frequency - USB - Red - IP65, IP68 - Warehouse, Distribution, Manufacturing, Picking, Packing, Transportation, Logistics

SKU
2105IHD-3USB-CLHN
Category
Barcode Scanners

MSRP$1,609.38

$1,000.09

Save 38%

In stock: 2

Get a quote

Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
2105IHD-3USB-CLHN
Category
Barcode Scanners

Overview

Ultra-Rugged Cordless Area-Imaging Scanner

Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.

ULTRA SCAN PERFORMANCE

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra with AI drives 45% faster scanning1 for improved productivity.

ULTRA DURABILITY

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.

ULTRA EASE OF USE

Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor.

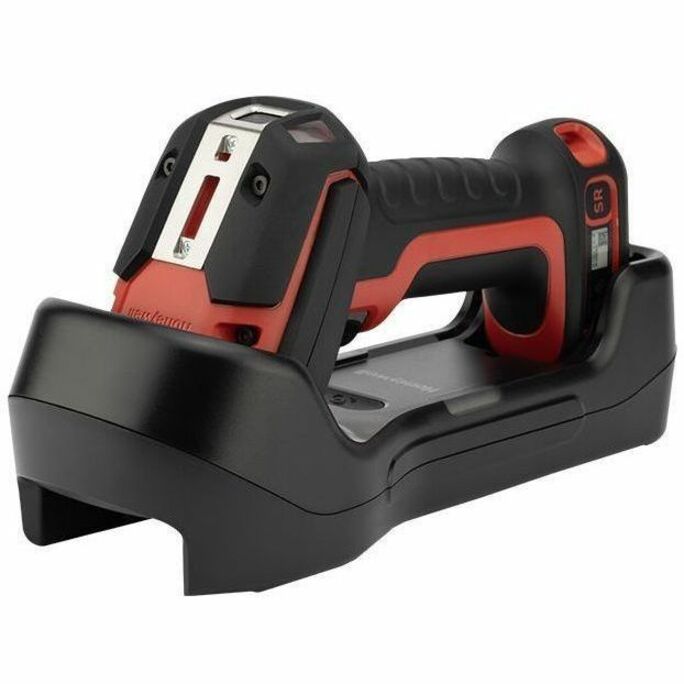

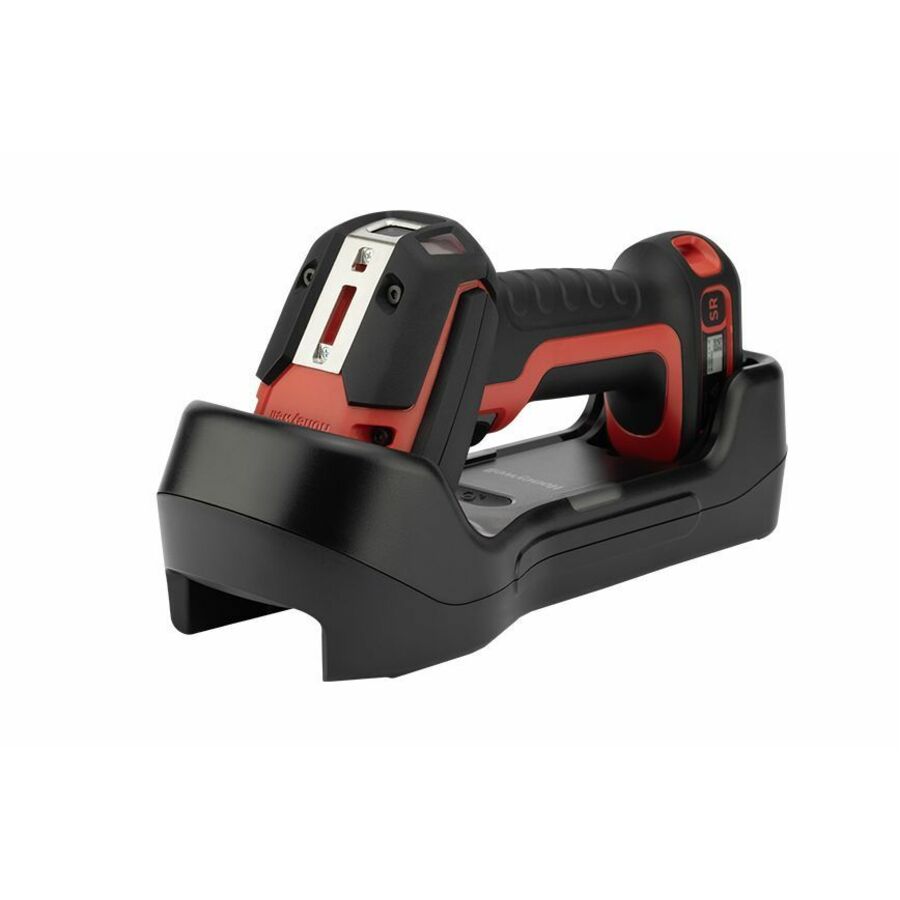

The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.

Warranty

Limited Warranty: 3 Year

Highlights

  • Built to survive harsh treatment including 3m (10ft) drops, 7500 1m (3.3ft) tumbles, operating temperatures from -20°C to 50°C (-4°F to 122°F), and IP65/68 sealing, Granit Ultra reduces service costs and increases device uptimee.
  • Granit Ultra provides rapid scanning, even on damaged and low quality barcodes. High quality barcodes transmit faster than ever.
  • SR model is ideally suited to near-field scanning operations on 1D and 2D barcodes. For longer reading distances, refer to other models in the Granit family.
  • The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.

Specifications

Application/UsageWarehouse, Distribution, Manufacturing, Picking, Packing, Transportation, Logistics
Barcode Symbology Supported
  • 1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar
  • 2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode,
  • Digital Watermarking: Digimarc
  • OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • Contact Charging Red Scanner (2105IHD-3-CLN)
  • Battery (BAT-SCN11)
  • USB Cable (CBL-500-300-S00)
  • Horizontal Base (CCB23-100BT-07N)
Host InterfaceUSB
Product TypeBarcode Scanner Kit
Manufacturer Part Number2105IHD-3USB-CLHN
Limited Warranty3 Year
Weight (Approximate)14.99 oz
Connectivity TechnologyWireless
DurabilityImpact Resistant, Scratch Resistant
FeaturesNotification LED, Beep, Vibration, Ergonomic Design, Data Formatter
Form FactorHandheld
Length7.7"
ManufacturerHoneywell International, Inc
Product Model2105iHD
Product NameGranit Ultra 2105i Ultra-Rugged Cordless Area-Imaging Scanner
Product LineGranit Ultra
Brand NameHoneywell
Scanning Distance6.77"
Light SourceLED
Height5.5"
Width3"
Battery Capacity3300 mAh
BluetoothYes
Maximum Battery Run Time14 Hour
Scanner RangeHigh Density
Drop Specification
  • 3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
  • 2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
  • 2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity
Scan PatternArea
Image Sensor TypeImager
Radio FrequencyYes
Illumination TypeLED
Standby Current120 mA
Scan ModeTrigger
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Product ColorRed
Color FamilyRed
Illumination ColorWhite
Ingress Protection (IP) RatingIP65, IP68
RuggedYes
Scanning Capability1D, 2D
Field of View (Horizontal)28°
Field of View (Vertical)24°
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Maximum Operating Power Consumption7.50 W
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)2 mil
Maximum Element Resolution (Code 39)5 mil
Minimum Element Resolution (DataMatrix)5 mil
Maximum Element Resolution (DataMatrix)10 mil
Air Electrostatic Discharge (+/-)20kV
Contact Electrostatic Discharge (+/-)8kV
Operating Temperature-4°F (-20°C) to 122°F (50°C)
Image Sensor Resolution1280 x 1080
Humidity (Non-condensing)95%
AI-poweredYes
