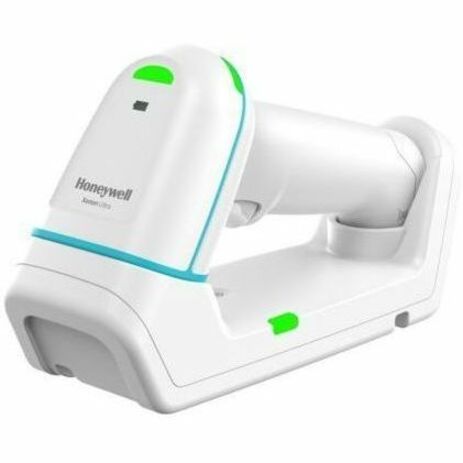

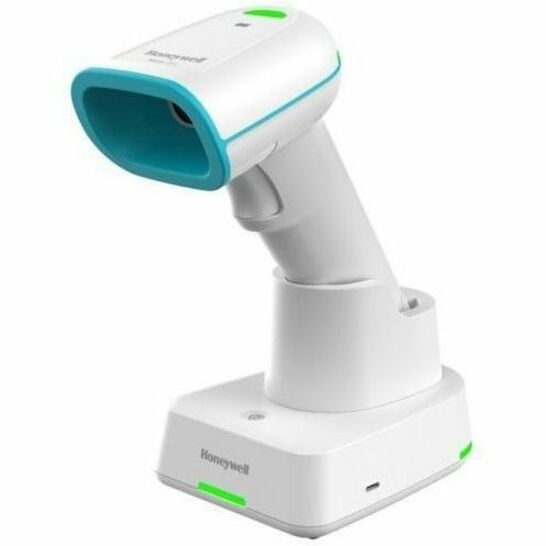

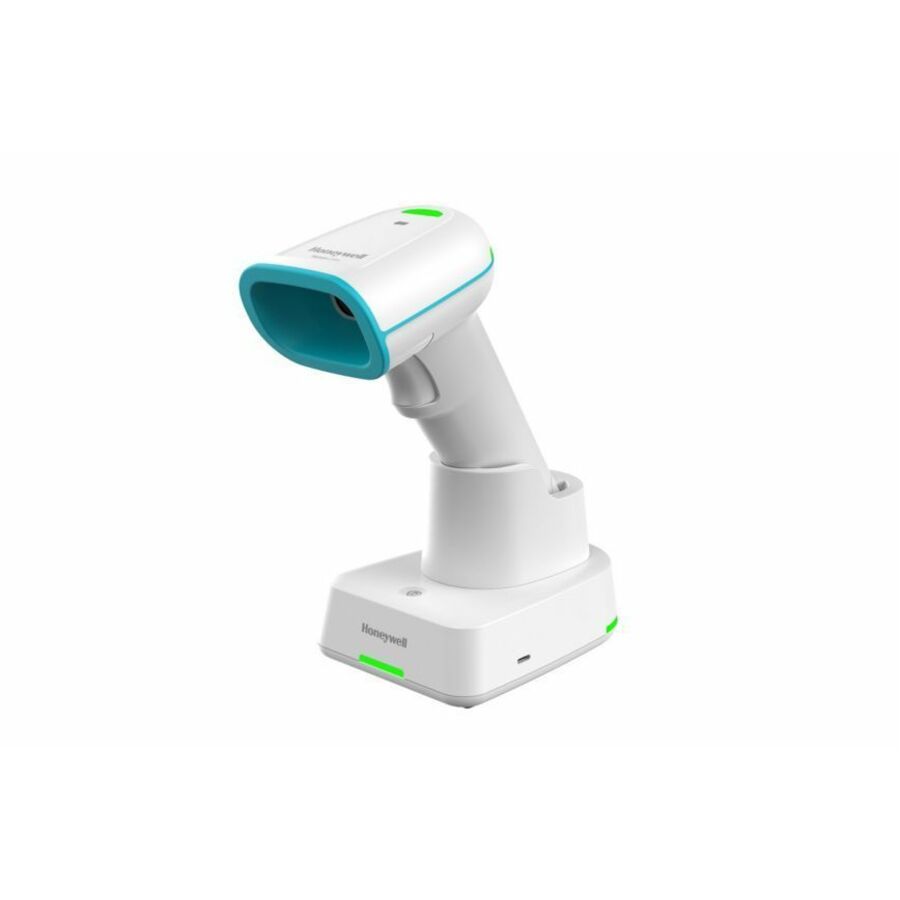

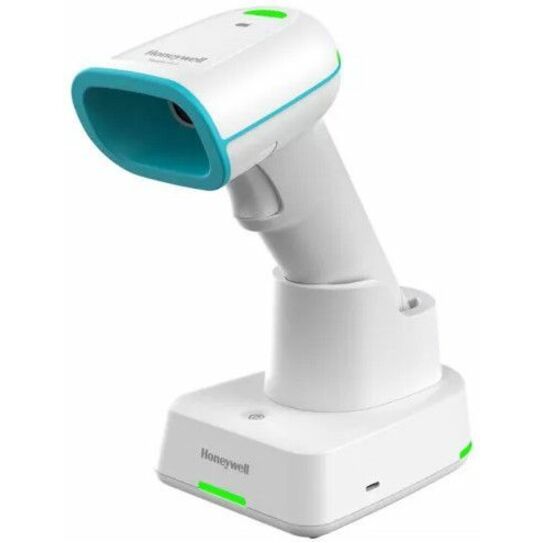

Honeywell Xenon Ultra 1962h Barcode Scanner Kit
Wireless Connectivity - 1D, 2D - LED - Bluetooth, Radio Frequency - USB - White - IP52, IP41 - Healthcare
- SKU
- 1962HHD-5USB-WC-N
- Category
- Barcode Scanners
MSRP$1,748.53
$1,091.99
Save 38%Back ordered — ships when restocked.
Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1962HHD-5USB-WC-N
- Category
- Barcode Scanners
Overview
Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.
The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.
Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.
Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.
The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.
Warranty
Limited Warranty: 3 Year
Highlights
- Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
- Laser-free design provides high-performance scanning without the risk of eye injury
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
Specifications
| Application/Usage | Healthcare |
|---|---|
| Barcode Symbology Supported | Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | 1962HHD-5USB-WC-N |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 7.76 oz |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Input Current | 500 mA |
| Length | 3.3" |
| Manufacturer | Honeywell International, Inc |
| Product Model | 1962h |
| Product Name | Xenon Ultra 1962h Barcode Scanner Kit |
| Product Line | Xenon Ultra |
| Brand Name | Honeywell |
| Light Source | LED |
| Height | 4.8" |
| Width | 3.6" |
| Battery Capacity | 3300 mAh |
| Bluetooth | Yes |
| Maximum Battery Run Time | 22 Hour |
| Drop Specification | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Maximum Battery Recharge Time | 4.50 Hour |
| Radio Frequency | Yes |
| Illumination Type | LED |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | White |
| Color Family | White |
| Illumination Color | White |
| Ingress Protection (IP) Rating | IP52, IP41 |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Operating Power Consumption | 2.50 W |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 20 mil |
| Minimum Element Resolution (DataMatrix) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 5 mil |
| Maximum Element Resolution (PDF417) | 6.7 mil |
| Operating Temperature | 41°F (5°C) to 95°F (35°C) |
| Image Sensor Resolution | 1280 x 1080 |
| Humidity (Non-condensing) | 95% |
