SKU
FG5968-10
Category
PC Control Panels
Overview

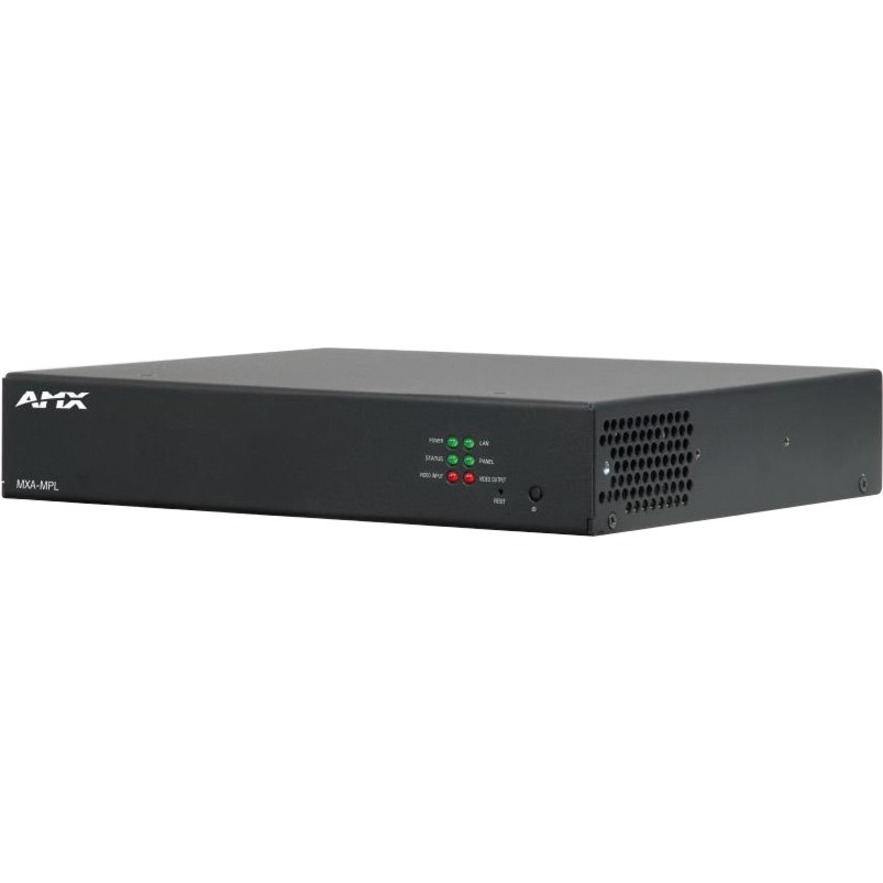

The Modero X/S Series Multi Preview Live is a touch panel accessory that displays a HD digital video stream on Modero X and Modero S Series Touch Panels when used in conjunction with an Enova DVX All-In-One Presentation Switcher or Enova DGX Digital Media Switcher. The MXA-MPL accepts analog or digital video inputs over HDMI and converts them to a video stream. The MXP-MPL also supports all of the features of the MXA-MP, displaying up to 10 JPEG preview images on panels. The MXA-MPL makes it easy for users to quickly identify what is currently being displayed by up to 10 source devices.
COMMON APPLICATIONS
Use the MXA-MPL to preview a live video stream or snapshot of the content from a source device before switching to that source. More from the Manufacturer
Powered by GfK Etilize
MXA-MPL
The Modero X/S Series Multi Preview Live is a touch panel accessory that displays a HD digital video stream on Modero X and Modero S Series Touch Panels when used in conjunction with an Enova DVX All-In-One Presentation Switcher or Enova DGX Digital Media Switcher. The MXA-MPL accepts analog or digital video inputs over HDMI and converts them to a video stream. The MXP-MPL also supports all of the features of the MXA-MP, displaying up to 10 JPEG preview images on panels. The MXA-MPL makes it easy for users to quickly identify what is currently being displayed by up to 10 source devices.
COMMON APPLICATION
Use the MXA-MPL to preview a live video stream or snapshot of the content from a source device before switching to that source.
FEATURES
Supports one HD digital video stream or up to 10 preview images
Updates all 10 preview images sequentially or one image continuously
Streams digital and analog video sources to a Modero X Series Touch Panel
Multi-format video input accepts RGB, Component, Composite, or S-Video via an optional DVI connector adapter
Seamlessly interconnects between a Modero X Series Touch Panel and an Enova DGX or Enova DVX
Highlights
Supports one HD digital video stream or up to 10 preview images
Updates all 10 preview images sequentially or one image continuously
Streams digital and analog video sources to a Modero X Series Touch Panel
Multi-format video input accepts RGB, Component, Composite, or S-Video via an optional DVI connector adapter
Seamlessly interconnects between a Modero X Series Touch Panel and an Enova DGX or Enova DVX
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG5968-10
Brand Name
AMX
Product Line
Modero
Product Series
X
Product Model
MXA-MPL
Product Name
Modero X and Modero S Series Multi Preview Live
Product Type
PC Control Panel
Physical Characteristics
Height
1.6"
Width
8.3"
Depth
7.2"
Weight (Approximate)
2.80 lb
Miscellaneous
Package Contents
Modero X and Modero S Series Multi Preview Live
MXA-MP Installation Guide
MIC AC Universal Power Cord
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
