Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
9045122816
Category
Lighting Fixtures
Overview

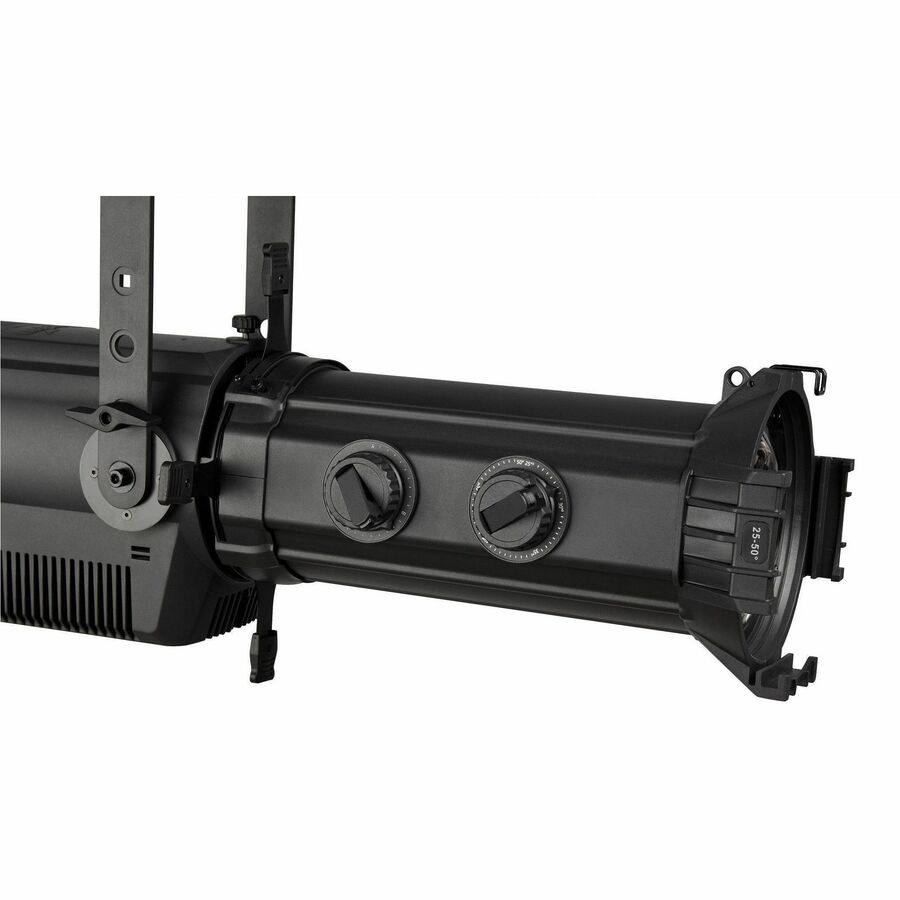

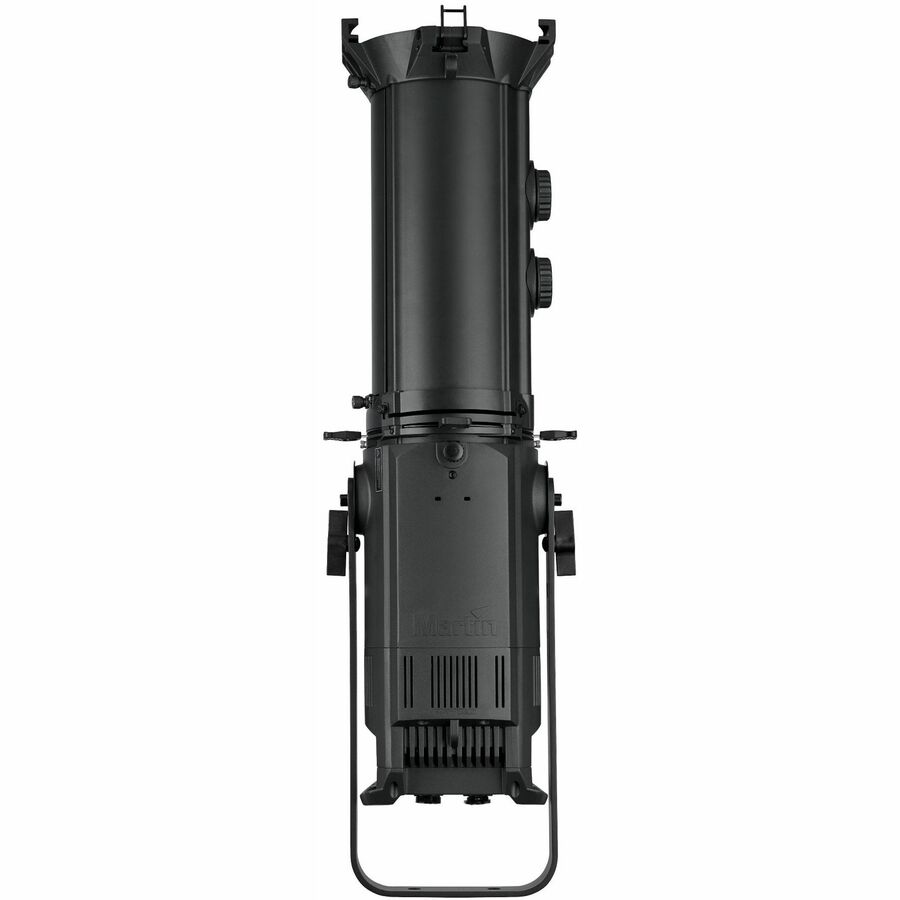

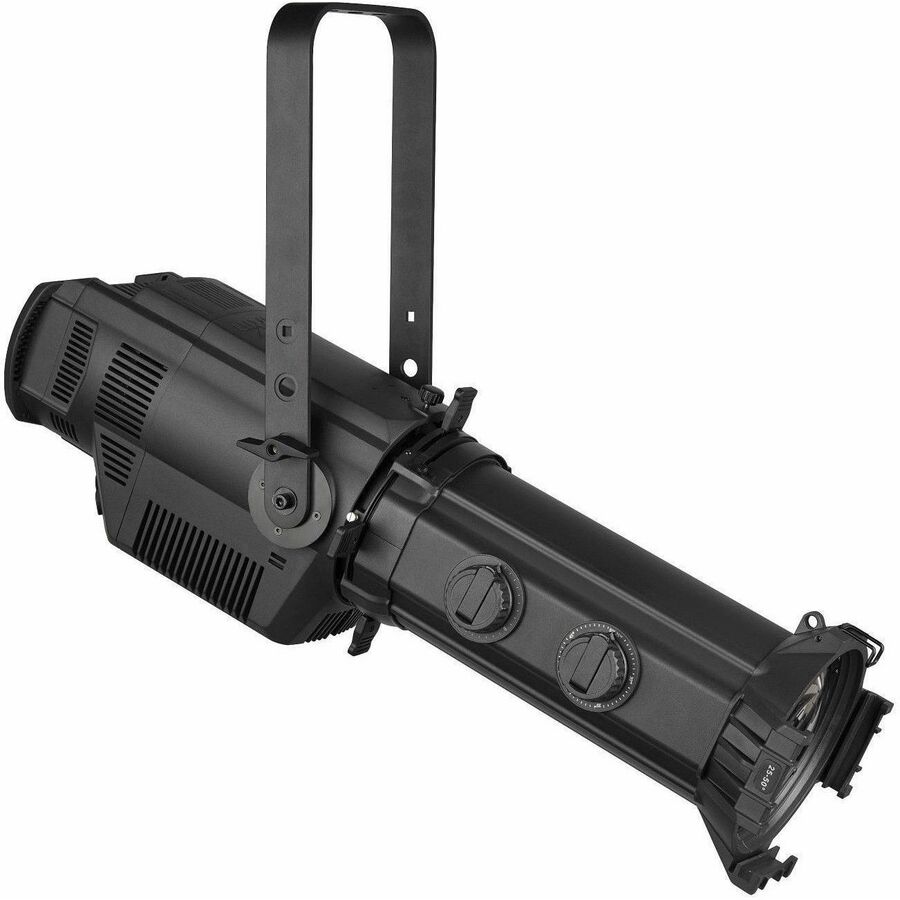

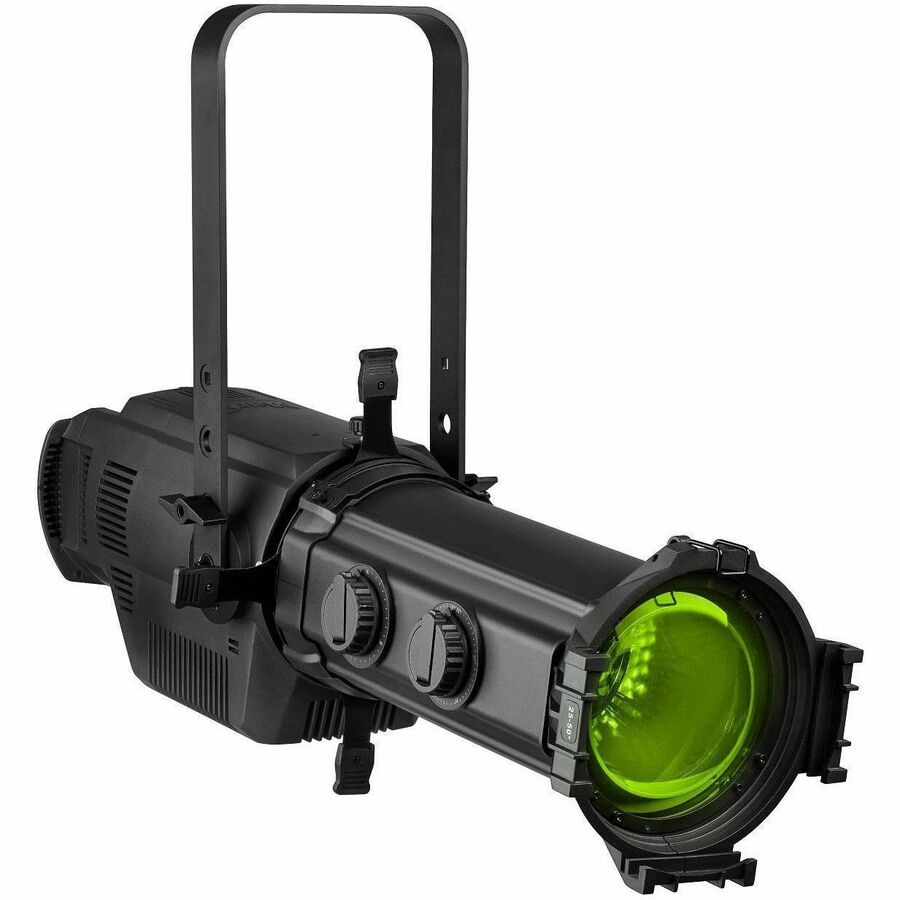

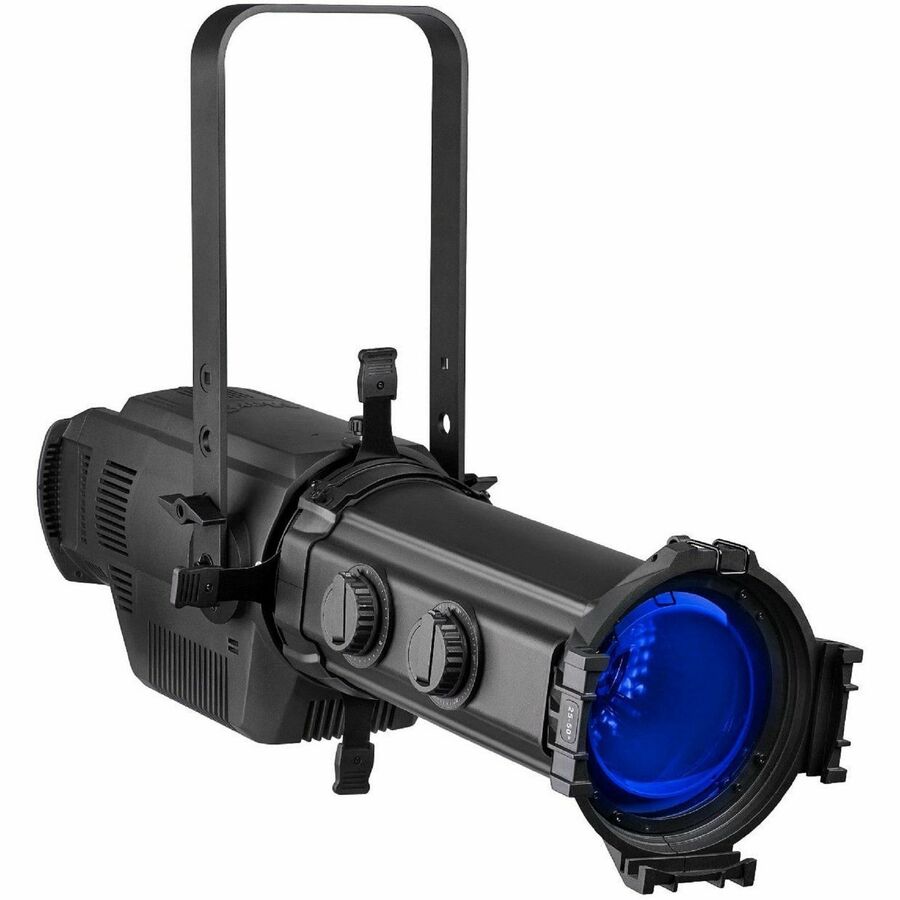

Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP CL IP offers the same rich saturated colors and class leading output as the original Martin ELP CL but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP's ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus-an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP CL IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15-30-degree and 25-50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.
Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.
Warranty
Limited Warranty: 2 Year
Highlights
Legendary Martin quality in LED ellipsoidal light fixtures
Advanced optics engineered in Denmark
RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
Class-leading output of 6,900 lumens (in High Output mode)
Superior CRI rating of 90 (in high quality mode)
Fast focus feature for data free focusing
Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
IP65 rated for water resistance and complete protection against dust and other particulates
26 color presets match industry-standard filters
16-bit dimming with 4 selectable dimming curves
Compatible with universal accessories such as gel frames and gobo holders and rotators
Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
Flicker-free operation
4-blade manual framing shutters
Center of gravity at yoke for ergonomic use
Regulated cooling for ultra-quiet operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
9045122816
Brand Name
Martin
Product Line
ELP CL IP
Product Name
ELP CL IP (Body Only), White
Product Type
Stage Light
Physical Characteristics
Product Color
White
Product Material
Die-cast Aluminum
Height
10"
Width
10"
Weight (Approximate)
24.25 lb
Power Description
Power Source
AC Supply
Input Voltage
120 V AC, 230 V AC
Power Consumption
259 W
Product Information
Bulb/Tube Type
LED
Light Output
6900 lm
Mount Type
Bracket Mount
Application/Usage
Indoor, Outdoor
Features
Water Resistant, Dust Resistant, Dimmable, Flicker-free
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
ELP CL IP (Body Only), White
Mounting bracket
User manual
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
