Genuine Fortinet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FAD-2200F-BDL-731-12
Category
Network Security & Firewalls
Overview
Application Anywhere
FortiADC is an advanced Application Delivery Controller (ADC) that ensures application availability, application security, and application optimization. FortiADC offers advanced security features (WAF, DDoS, and AV) and application connectors for easy deployment and full visibility to your networks and applications. FortiADC can be deployed as a physical or virtual machine (VM), or as a Cloud solution.).
Application Availability
24x7 application availability through automatic failover for business continuity with application automation, global server load balancing, and link load balancing to optimize WAN connectivity.
Application Optimization
Multi-core processor technology combined with hardware-based SSL offloading and server optimization to increase end-user QoE.
Application Protection
Advanced Web Application Firewall protection from the OWASP Top 10 - 2021 and threat detection with Fortinet FortiGuard Cloud Services.
Zero Trust Application Gateway
ZTNA (ZTAG) provides an automatic, encrypted tunnels for controlled validated per-session access to applications
Highlights
Supports network security appliance deployment by providing integrated traffic inspection and access control capabilities
Enables policy?based inspection and controlled management of network traffic using a firewall appliance that supports distributed denial of service (ddos) firewall protection
AES encryption standard supports data confidentiality by enabling encrypted handling of network communications
Supports 10 Gigabit Ethernet to enable high-capacity wired connectivity for performance-oriented network deployments
Supports business network environments by enabling policy?based traffic inspection and access control aligned with organizational security requirements
Rack?mountable form factor allows organized installation within standard equipment racks for structured cabling layouts
Specifications
General Information
Manufacturer
Fortinet, Inc
Manufacturer Part Number
FAD-2200F-BDL-731-12
Brand Name
Fortinet
Product Line
FortiADC
Product Model
2200F
Product Name

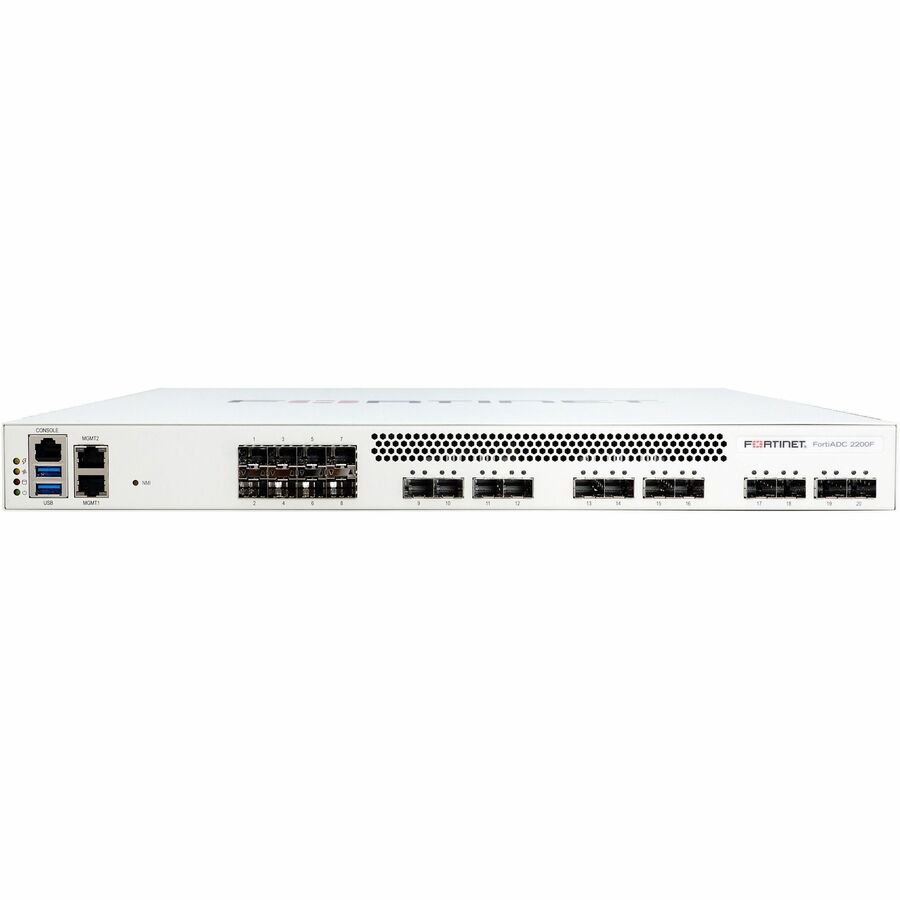

FortiADC 2200F Network Security Appliance
Product Type
Network Security Appliance
I/O Expansions
Total Number of Expansion Slots
20
Expansion Slot Type
SFP (mini-GBIC), SFP+
Number of SFP Slots
8
Number of SFP+ Slots
12
Management & Protocols
Manageable
Yes
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
Network Standard
10GBase-X, 1000Base-X
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
21.6"
Depth
17.3"
Weight (Approximate)
22.50 lb
Power Description
Frequency
50 Hz, 60 Hz
Power Consumption
340 W
Technical Information
Functionality
Application Security
Firewall Protection Supported
Distributed Denial of Service (DDoS), Application Control, SSL Offloading, Web Application Control, Application Firewall, Brute Force Attack Mitigation, Botnet Detection, Intrusion Prevention, Antivirus, SSL Inspection, Denial of Service (DoS), Anti-phishing, Zero Trust Network Access (ZTNA)
Encryption Standard
AES, SHA-256, SSL, TLS 1.3
Data Link Protocols
HTTP, HTTPS, FTP
Connectivity Technology
Wired
Warranty
Support/Service Duration
1 Year
Support/Service Type
FortiCare Premium and FortiADC Application Security Bundle
