Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FLUKE-721-3630
Category
Test Equipment
Overview
Fluke 721 Precision Pressure Calibrator provides pressure calibration and temperature measurement for custody transfer applications

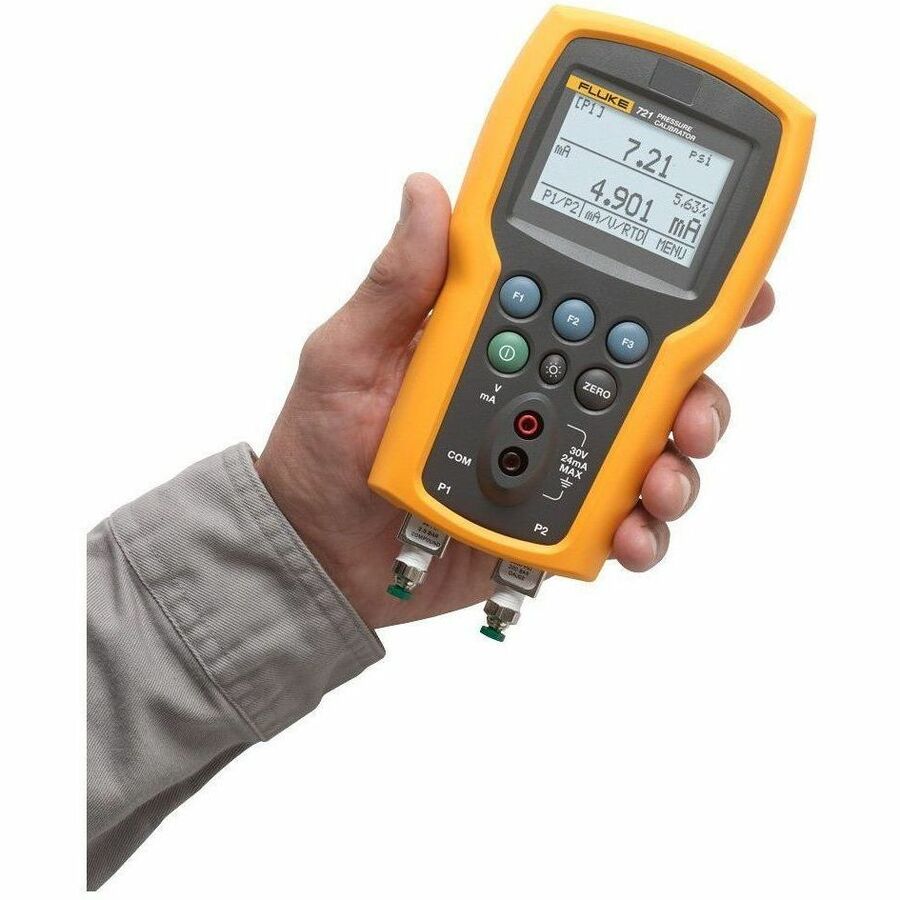

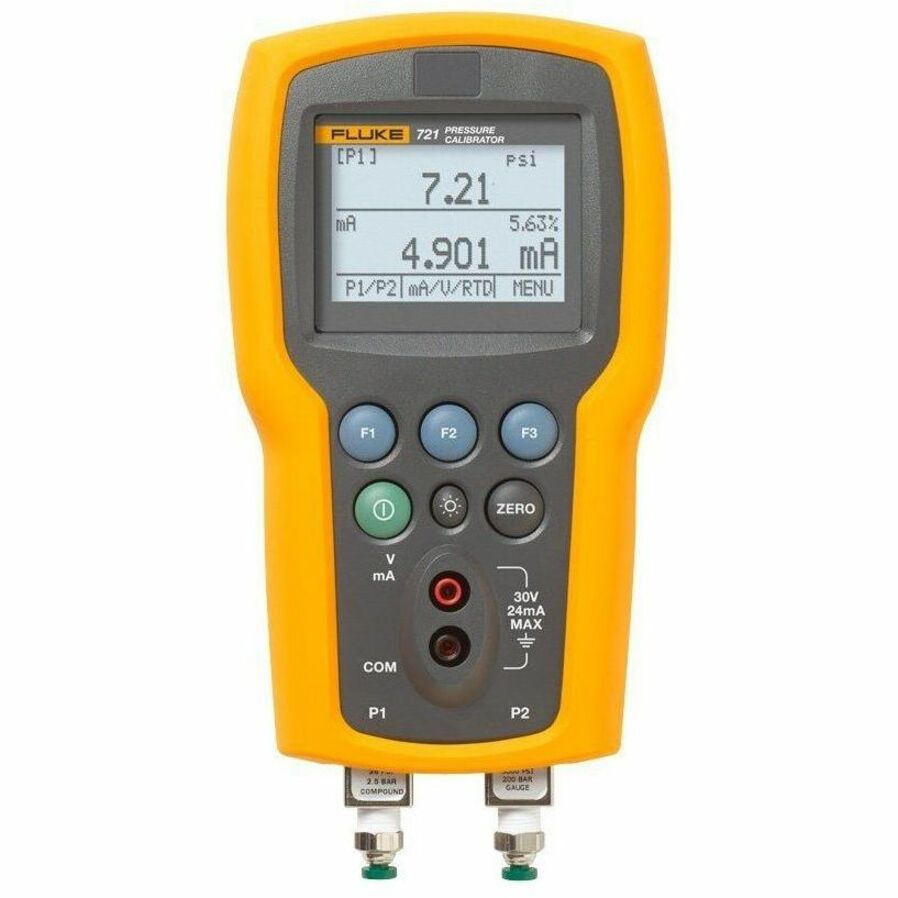

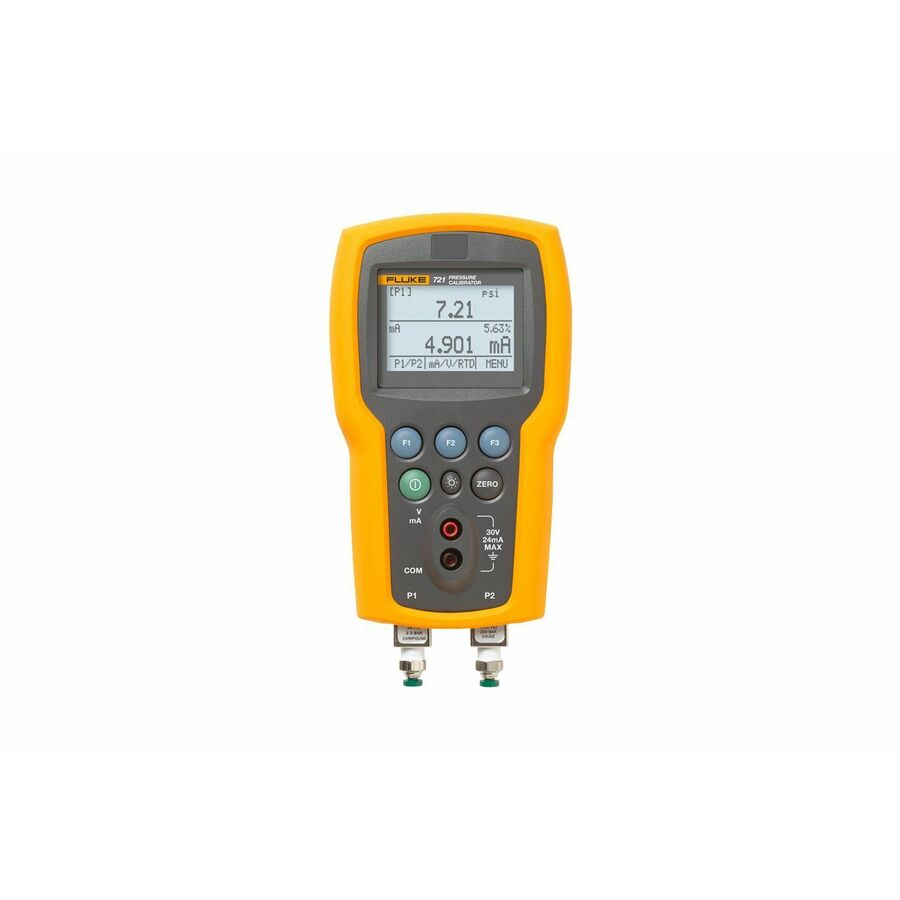

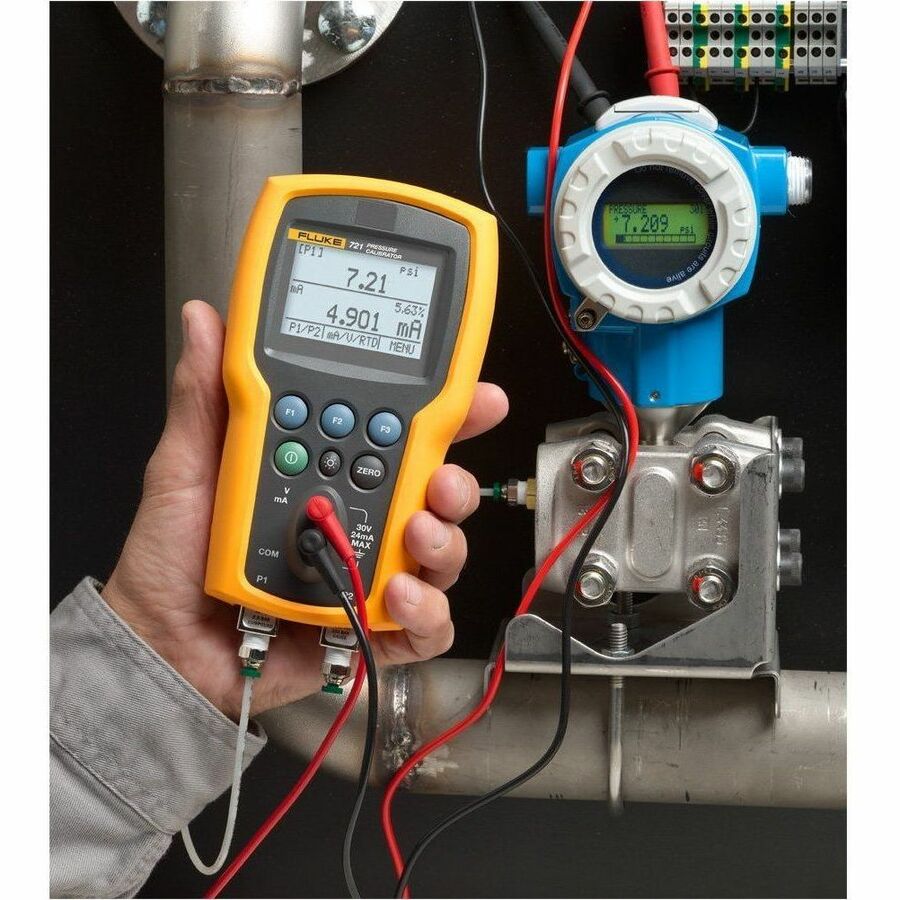

The Fluke 721 Precision Pressure Calibrator is the ideal tool for gas custody transfer applications. It features dual isolated pressure sensors to allow you to take simultaneous static and differential pressure measurements with a single tool. And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then adding any of seven high pressure ranges: 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).
Other useful features:
• Measures up to 30 V DC, checks 24 V loop power supplies
• Extends pressure measurement range with connection to external750P
• 750 series pressure modules(50 ranges)
• Provides a large backlit graphic display that can show up to three inputs simultaneously
• Stores five instrument setups for recall
Highlights
Precision pressure calibrator with dual isolated sensors for gas flow calibration (custody transfer) applications
Features two isolated, stainless steel, pressure sensors with 0.025% accuracy
Includes Pt100 RTD input for temperature measurement (probe optional)
Measures 4 to 20 mA signals
Provides internal 24 V loop power supply to power a transmitter under test
Specifications
Battery Information
Number of Batteries Supported
4
Battery Size Supported
AA
Built-in Battery
Yes
Battery Included
Yes
Battery Life
35 Hour
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-721-3630
Brand Name
Fluke
Product Series
721
Product Name
721 Pressure Calibrator
Product Type
Pressure Calibrator
Physical Characteristics
Height
7.9"
Width
4.3"
Depth
2.3"
Weight (Approximate)
7802.16 lb
Power Description
Input Voltage
6.0 V DC
Technical Information
Device Function
Pressure Calibration, Temperature Measurement, Pressure Measurement
