Overview

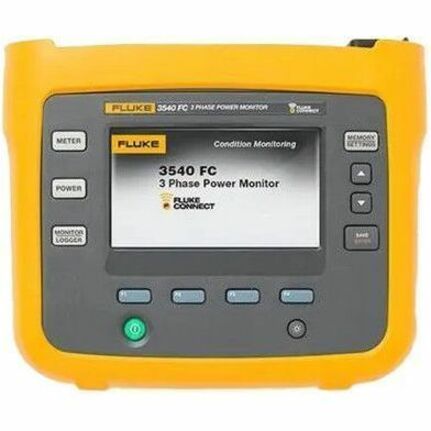

Fluke 3540 FC Three-Phase Power Monitor and Condition Monitoring Kit

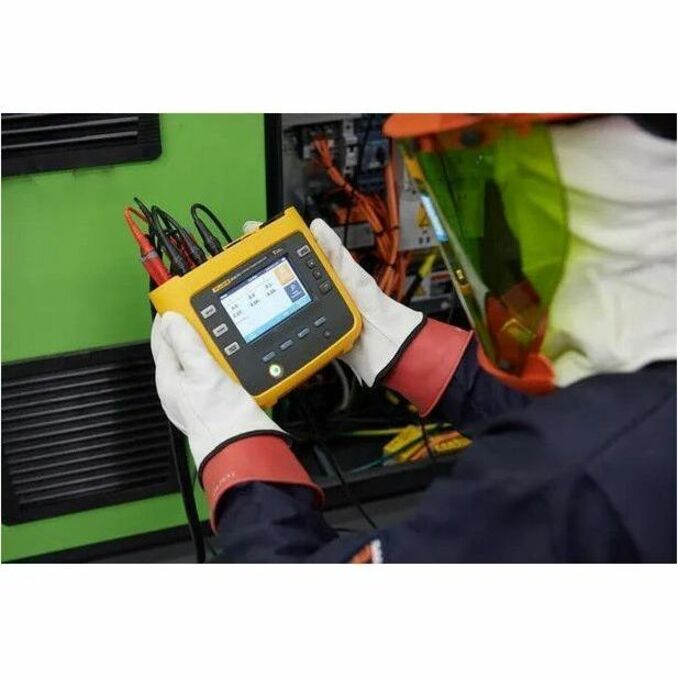

The Fluke 3540 FC monitors equipment for changes in key electrical variables. Current, voltage, frequency, and energy consumption fluctuate when machinery experiences excess load. Screen assets for performance or premature wear using the non-invasive 3540 FC.
• Portable device offers scalable, remote power monitoring solution
• View power measurements from a safe distance
• Wirelessly collect real-time power values
• Make data-driven decisions
Warranty
Additional Warranty Information: <ul><li>3540 FC and built-in power supply: 2 years (battery not included)</li><li>Accessories: 1 year</li></ul>
Limited Warranty: 2 Year
Highlights
Measures: Single, split, or three phase loads - Voltage, current, and frequency - Active power, non-active power, and power factor - Total harmonic distortion
Wireless data collection or internal memory sufficient for 1 week with 1 second data intervals
Remotely monitor real-time and historical power variable data
Visualize data with software trending, graphing, and timeboxing
Auto-generated alarms when power variables deviate from pre-set thresholds
Power options: Battery, power supply, or power from the measurement line
Size: (W x H x D) 7.8 in. x 6.6 in. x 2.2 in.
IP Rating: IP 50; IEC 60529
Specifications
Battery Information
Battery Size Supported
3.7V
Battery Rechargeable
Yes
Battery Life
4 Hour
Battery Chemistry
Lithium Ion (Li-Ion)
Display & Graphics
Display Screen Type
LCD
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-3540 FC KIT
Brand Name
Fluke
Product Model
FLUKE 3540 FC KIT
Product Name
3540 FC Three-Phase Power Monitor and Condition Monitoring Kit
Packaged Quantity
1
Product Type
Power Analyzer
Interfaces/Ports
USB
Yes
Physical Characteristics
Height
6.6"
Width
7.8"
Depth
2.2"
Weight (Approximate)
2.43 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Technical Information
Device Function
Power Monitoring, Voltage Measurement, Current Measurement, Frequency Measurement
Warranty
Limited Warranty
2 Year
Additional Warranty Information
3540 FC and built-in power supply: 2 years (battery not included)
Accessories: 1 year
Miscellaneous

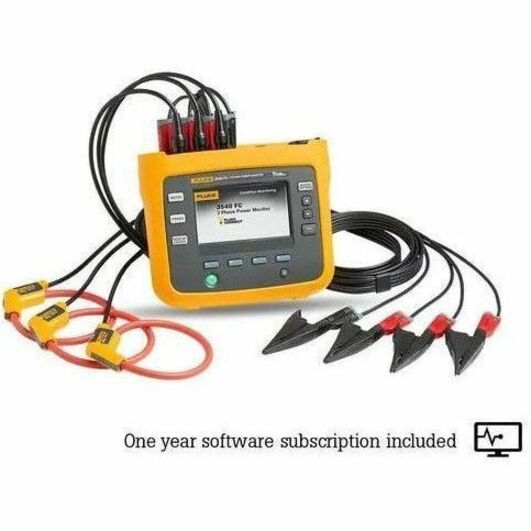

Package Contents
3540 FC Three-Phase Power Monitor and Condition Monitoring Kit
Voltage Test Lead, 3-phase + N
4 x Dolphin Clips, Black
3 x i173x-flex1500 iFlex Current Probe, 30.5 cm (12 in)
Set of color-coded Wire Clips
Mains Power Cable
Set of 2 test leads with stackable plugs, 10 cm (3.9 in)
Set of 2 test leads with stackable plugs, 1.5 m (6.6 ft)
