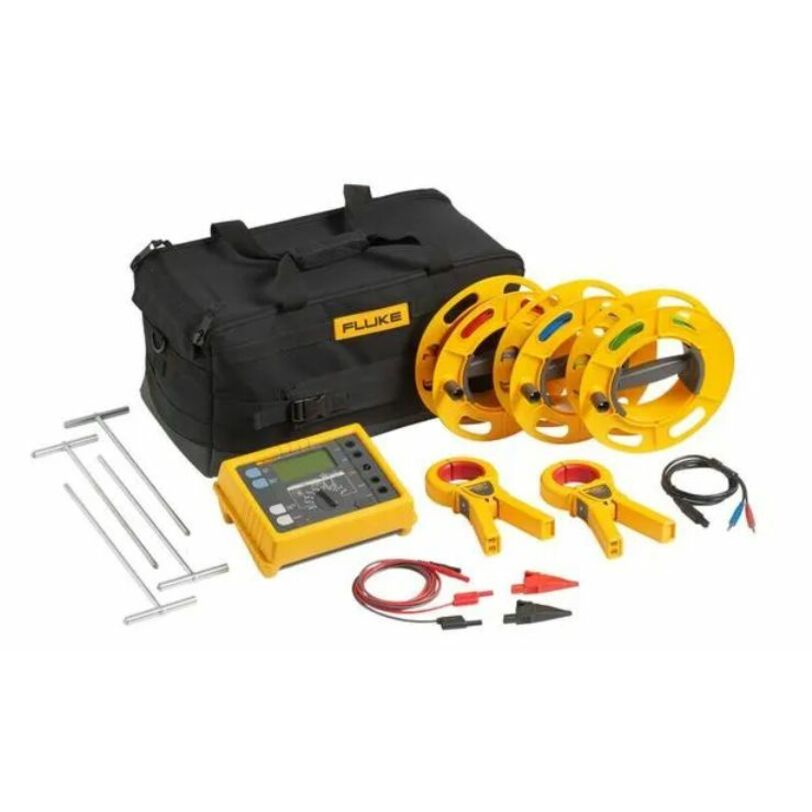

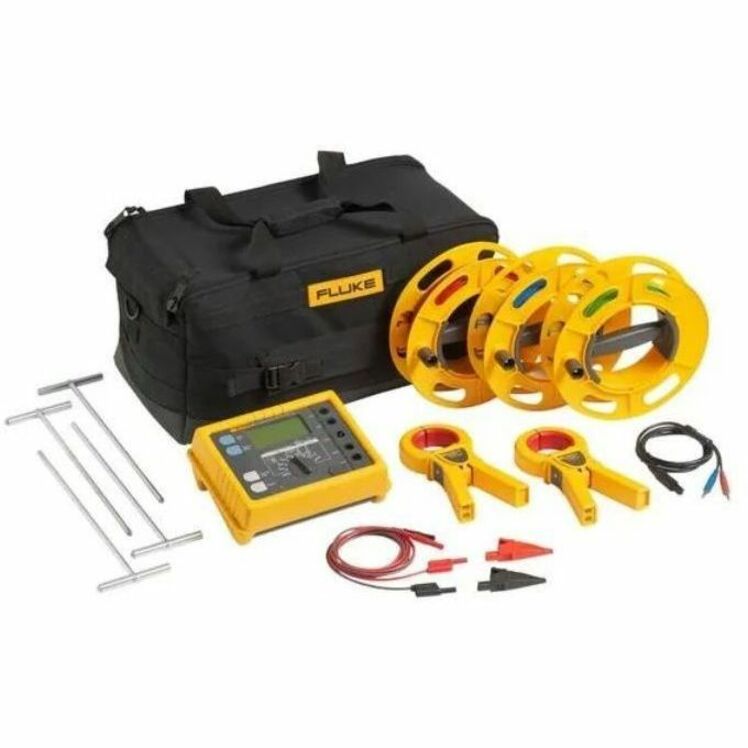

Fluke Earth Ground Tester Kit

The Most Complete Stakeless Earth Ground Tester

The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments. Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay on line-identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system.

Stakeless earth ground measurement testing

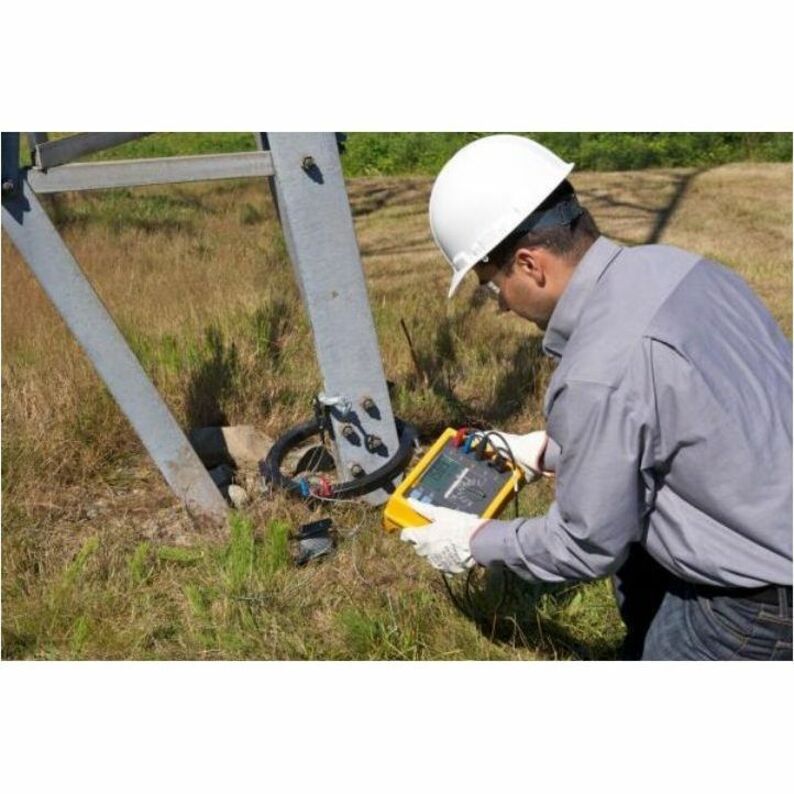

• You can also perform earth ground tests in places you've not considered before: inside buildings, power pylons, or anywhere you don't have access to soil

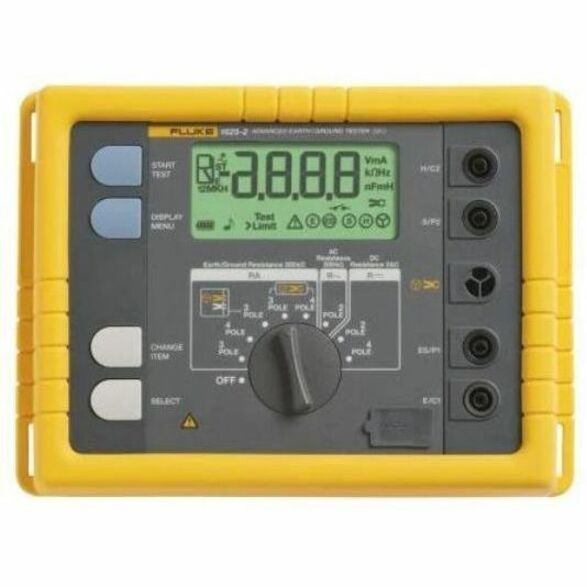

• The Fluke 1625-2 earth ground tester can measure earth ground loop resistances using only clamps

• With this test method, two clamps are placed around the earth ground rod and each are connected to the tester

The Fluke 1625-2 improves your earth ground testing process with:

• Automatic Frequency Control (AFC) - identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value

• R* measurement - calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see

• Adjustable limits - for quicker testing

The Fluke 1625-2 gives you versatility in earth ground testing

• 3- and 4-pole fall-of-potential, earth resistance loop testing

• 4-pole soil resistivity testing

• Selective earth ground rod testing using 1 clamp

• Stakeless earth ground rod testing using 2 clamps
