Resistance Tester, Insulation Fault Detection - 4Number of Batteries Supported - AA - Alkaline
SKU
Category
Test Equipment
$1,240.47
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Fluke through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Test Equipment
Overview

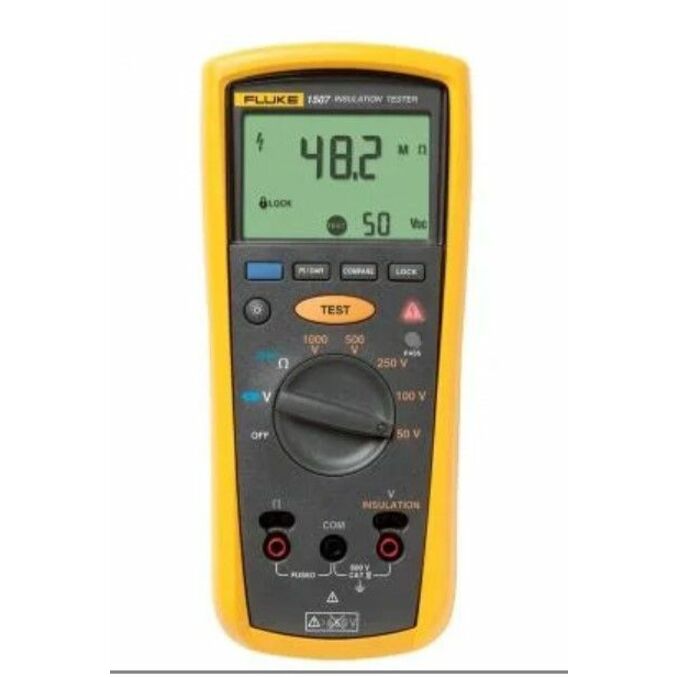

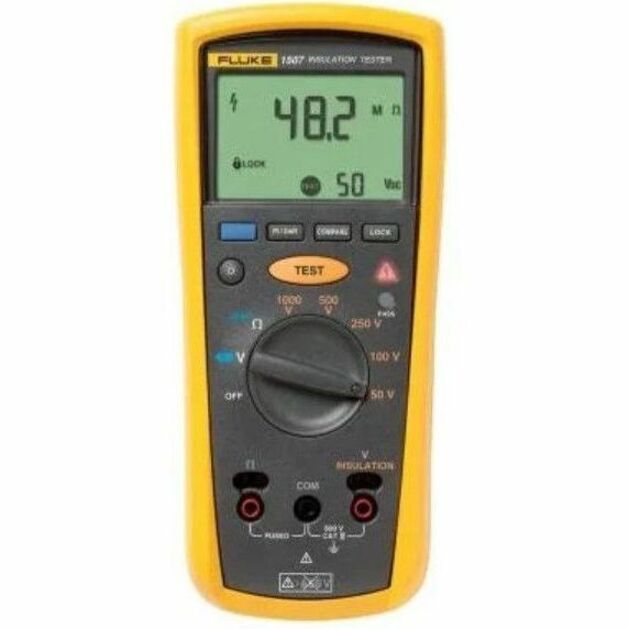

The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
• Performs insulation tests from 0.01 M to 10 G?
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 ? to 20.00 k?
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Warranty
Limited Warranty: 1 Year
Highlights
Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
Automatically calculates Polarization Index and Dielectric Absorption Ratio
Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
Specifications
Battery Information
Number of Batteries Supported
4
Battery Size Supported
AA
Battery Chemistry
Alkaline
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-1507 CAL
Brand Name
Fluke
Product Model
1507
Product Name
1507 Insulation Resistance Tester
Packaged Quantity
1
Product Type
Insulation Tester
Physical Characteristics
Height
2"
Width
3.9"
Depth
8"
Weight (Approximate)
1.21 lb
Technical Information
Device Function
Resistance Tester, Insulation Fault Detection
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
1507 Insulation Resistance Tester
Remote Probe
Test Leads
Test Probes
Alligator Clips
User Documentation
A Traceable Certificate of Calibration with Data From Fluke
