Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Power Adapters
Overview

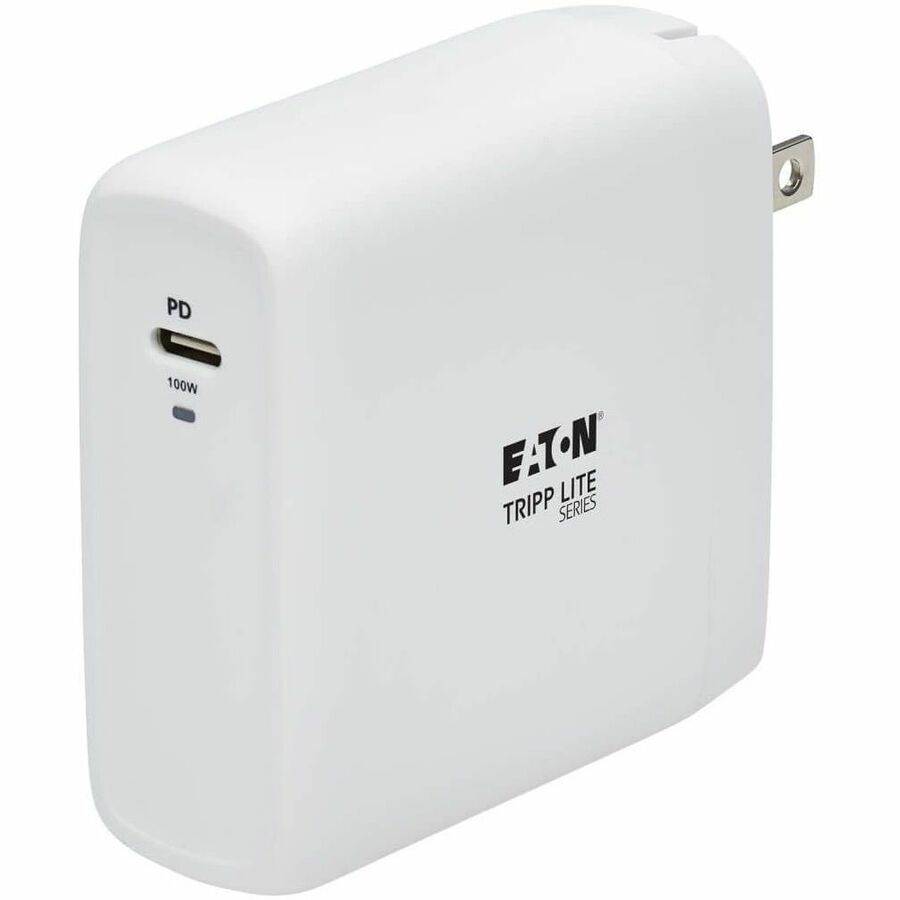

100W USB Type-C Charger Gets Your Mobile Device Ready in a Hurry, Wherever You Are
This single-port USB charger lets you quickly and safely charge your USB-C mobile device. Plug it into any NEMA 1-15R, NEMA 5-15R or NEMA 5-15/20R AC outlet to ensure your laptop, smartphone, tablet or other USB-C device charges at its fastest possible speed. The USB-C port supports USB Power Delivery (PD) 3.0 charging up to 5V 3A (15W), 9V 3A (27W), 15V 3A (45W) and 20V 5A (100W). Note: In order to achieve 100W charging, the U280-W01-100C1G must be used with a cable that supports 5A, such as Tripp Lite's U420-006-5A.
Gallium Nitride Technology Allows High-Wattage Capacity in a Compact Package
This USB wall charger is smaller and lighter than many standard wall chargers that come with a laptop, measuring just 8.5 cubic inches. Ideal for travel, it is designed using GaN technology, which has a higher power density than silicon and provides higher efficiency than standard USB-C fast chargers. It also operates under much cooler temperatures, despite its small size, meaning it won't get hot while charging your device.
Built-In Auto-Sensing Adjusts to Proper Power Level to Get Your Device to 100%
The USB-C port features auto-sensing technology that automatically adjusts to your device's appropriate power level, perfect for fast-charging tablets and e-readers. The unit protects against overheating, overcurrent, overcharging and short circuits. In fact, it stops charging as soon as your device's batteries are at full capacity.
Folding Plug Design Perfectly Sized for Travel
The compact USB Type-C charger, small enough to fit in the palm of your hand, is easy to carry in your purse, suitcase, backpack or laptop bag. The NEMA 1-15P plug folds into the unit when not in use to shield it from damage and prevent it from snagging or scratching your bag's contents.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal for charging smartphones, tablets, e-readers and laptops while traveling
USB-C PD 3.0 port supports a maximum power capacity of 100W for fast charging
Gallium nitride (GaN) technology generates less heat to support high-efficiency charging
Connects to any NEMA 1-15R, 5-15R or 5-15/20R AC outlet for immediate charging
Measures just 8.5 cu. in., making it perfectly sized for convenient travel use
2-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
U280-W01-100C1G
Brand Name
Tripp Lite series
Product Model
U280-W01-100C1G
Product Name
Compact 1-Port USB-C Wall Charger - GaN Technology, 100W PD3.0 Charging, White
Product Type
AC Adapter
Interfaces/Ports
USB
Yes
Physical Characteristics
Color Family
White
Product Color
White
Material Family
Polycarbonate
Height
1.2"
Width
2.8"
Depth
2.7"
Weight (Approximate)
7.84 oz
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
5 V DC, 9 V DC, 15 V DC, 20 V DC
Maximum Output Power
100 W
Maximum Output Current
5 A
Technical Information
Device Supported
Chromebook, Tablet, Notebook, Smartphone, e-book Reader, USB Type C Device
Warranty
Limited Warranty
2 Year
Miscellaneous
Compatibility
Amazon Kindle eBook
Country of Origin
Vietnam
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
