For Rack, Switch, Patch Panel, Server, UPS - 42U Rack Height - Rack-mountable Enclosed Cabinet - Black - Cold Rolled Steel - 3000 lb Maximum Weight Capacity - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
MSRP$3,017.16
$2,379.19
Save 21%In stock: 3
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Wide Server Rack Accommodates 42U of Equipment with Side Cable Management

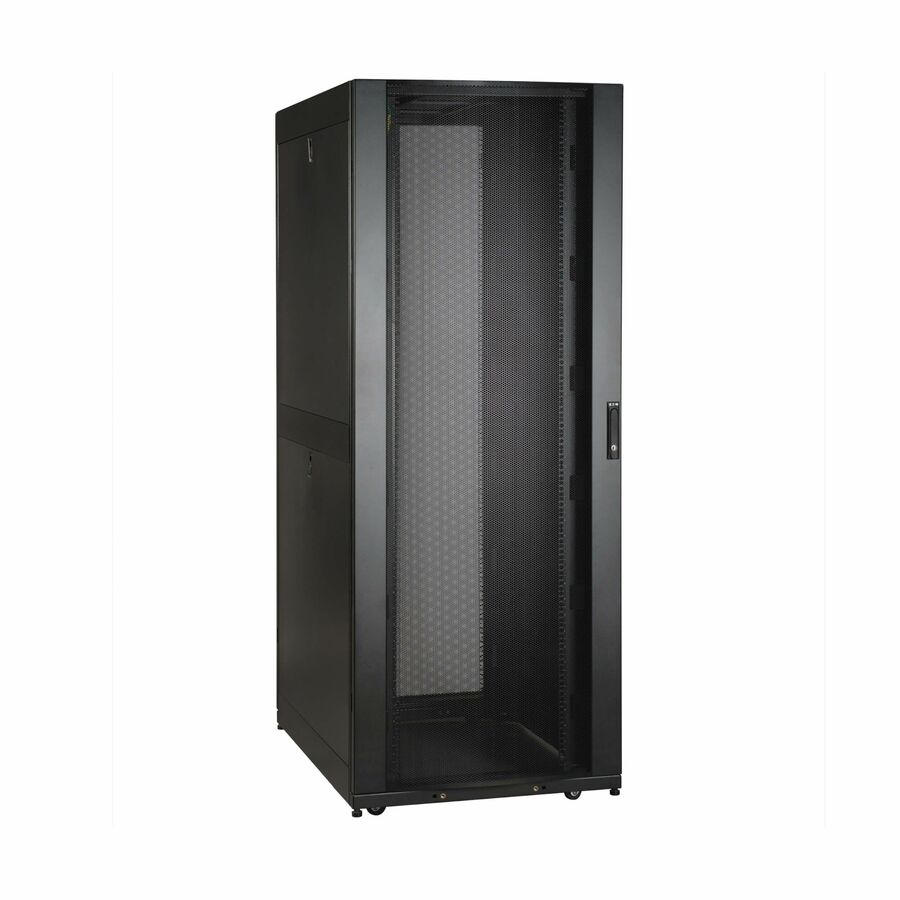

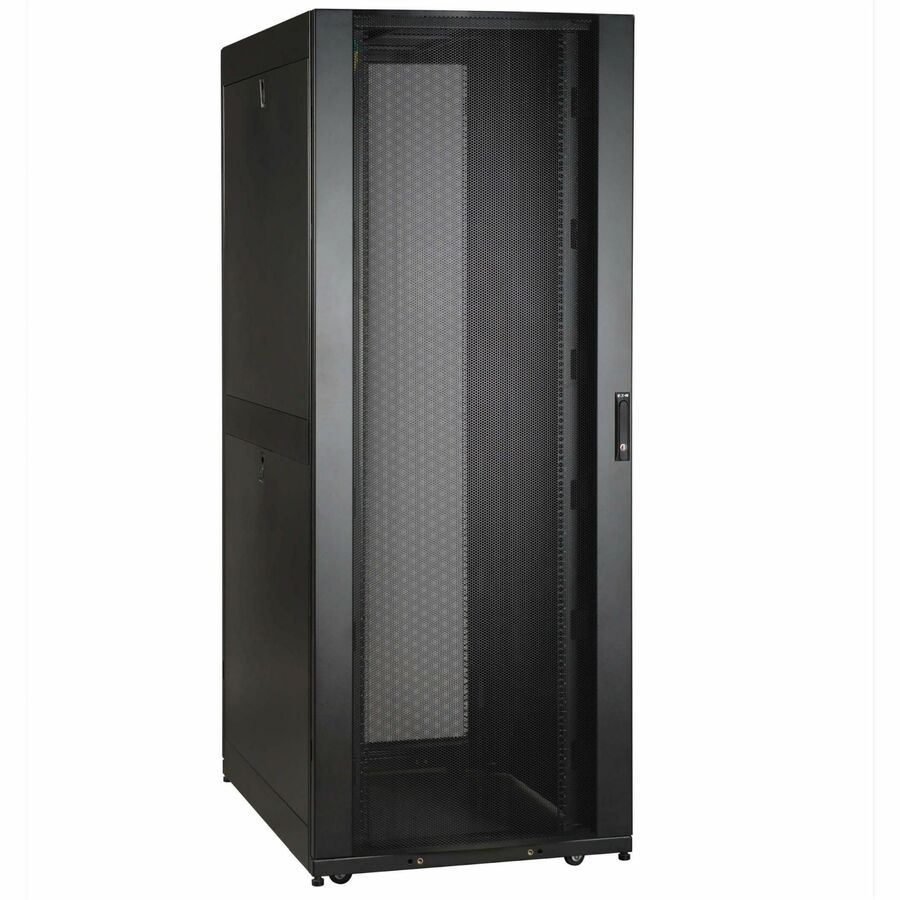

This SmartRack® 42U enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It is 800 millimeters (31.5 inches) wide to allow more room for cable management and PDU mounting along the sides of the rack, which permits free front-to-rear airflow. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR42UBWD8 has a maximum stationary load capacity of 3000 pounds (1361 kilograms) and a maximum rolling load capacity of 2250 pounds (1021 kilograms).
Keeps Important Equipment Secure

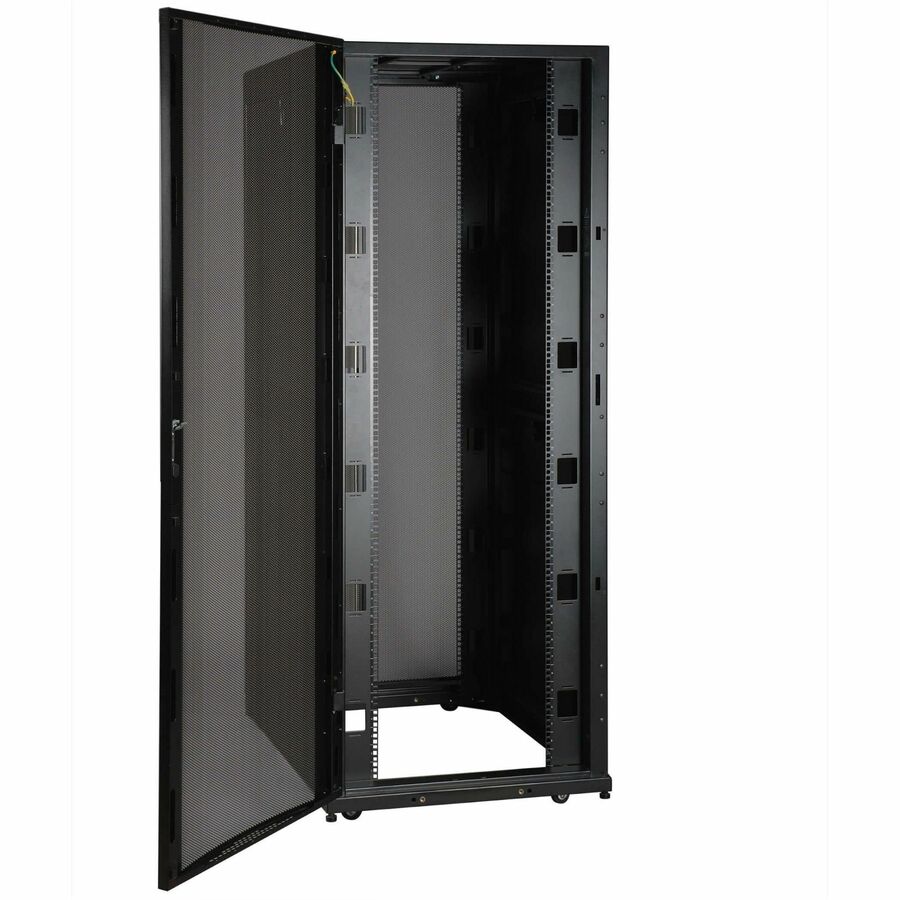

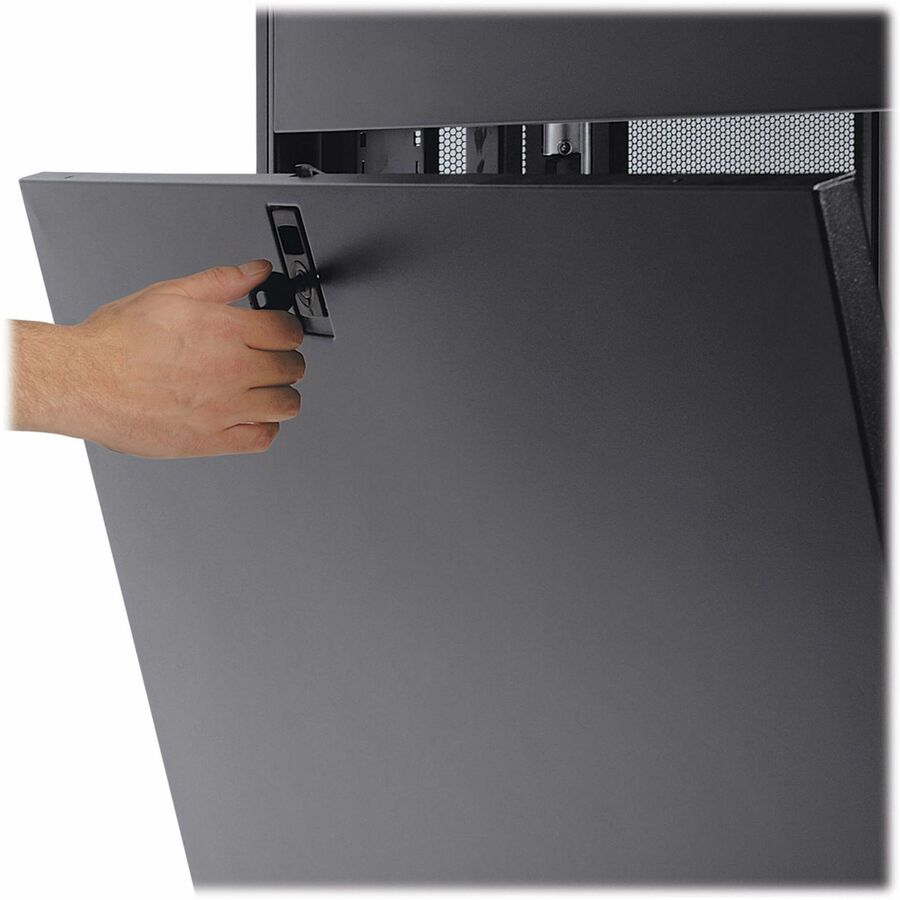

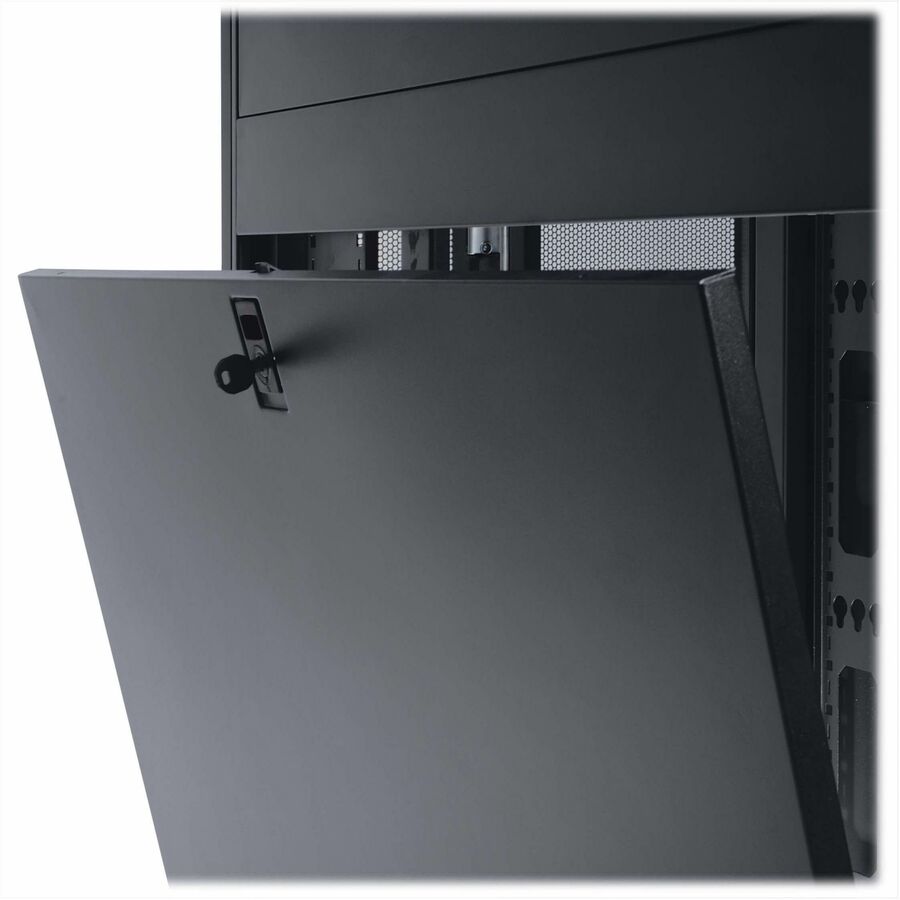

The reversible front door, split rear doors and half-size side panels lock securely with the included keys to help prevent damage, tampering or theft. The doors, side panels and roof panel are designed for quick release, making it simple to access connected equipment and cabling with little effort. The roof panel has strategically placed pass-throughs to accommodate cables from vertical 0U PDUs and other connected equipment. The perforated doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure and Equipment Installation

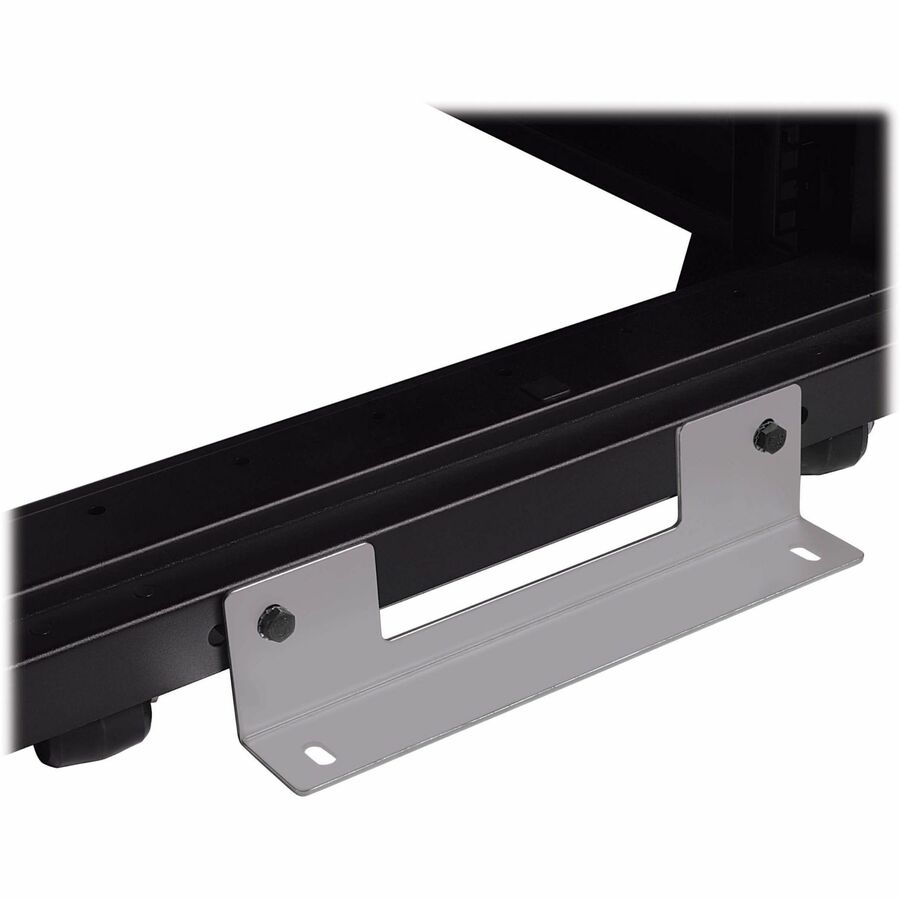

This 42U server rack comes fully assembled for quick deployment with pre-installed removable casters that let you maneuver it over a level surface and through a standard doorway into position, where it can be stabilized by adjusting the removable levelers. Toolless 0U mounting rails allow quick installation of compatible PDUs and vertical cable managers. Built-in baying brackets allow the combination of two or more rack cabinets in a row.
Meets Payment Card Industry Standards
The SR42UBWD8 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Limited Warranty: 5 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SR42UBWD8 |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SR42UBWD8 |
| Product Name | SmartRack SR42UBWD8 Rack Cabinet |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold Rolled Steel |
| Maximum Weight Capacity | 3000 lb |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Static/Stationary Weight Capacity | 3000 lb |
| Height | 78.5" |
| Width | 31.4" |
| Depth | 43" |
| Rack Height | 42U |
| Weight (Approximate) | 355.20 lb |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Rack, Switch, Patch Panel, Server, UPS |
| Features | Leveling Feet, Lockable, Casters, Damage Resistant, Cable Management, Tamper Resistant, Anti-theft, Powder Coated |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
