Overview

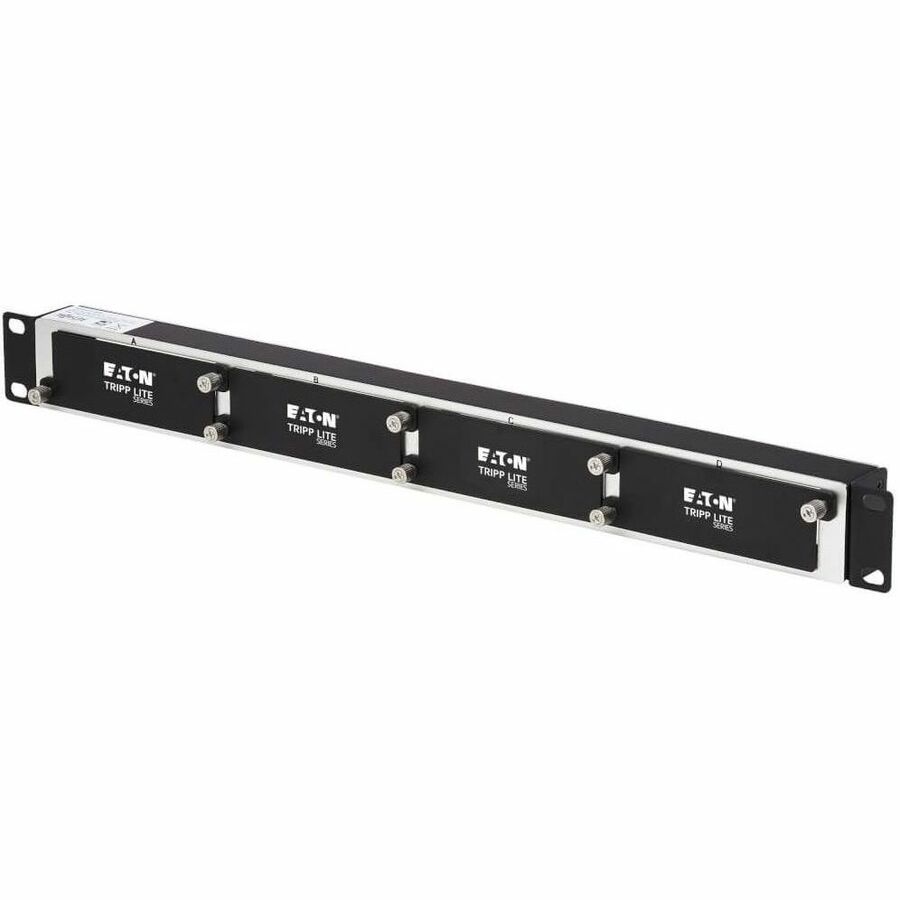

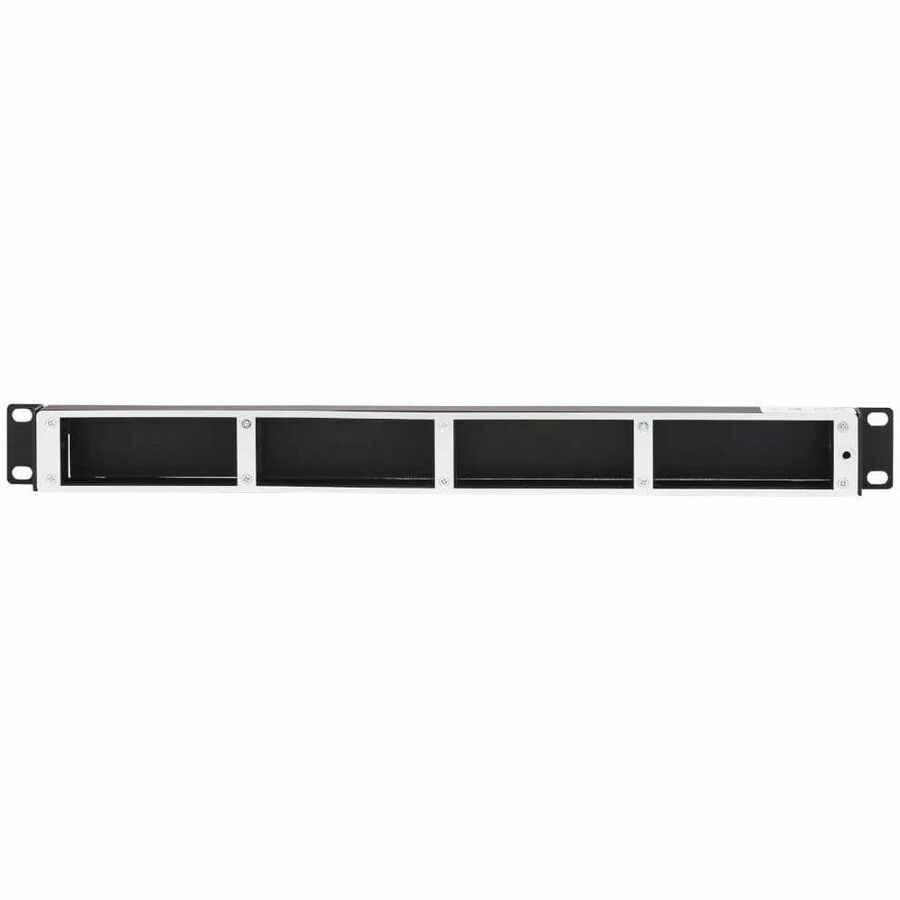

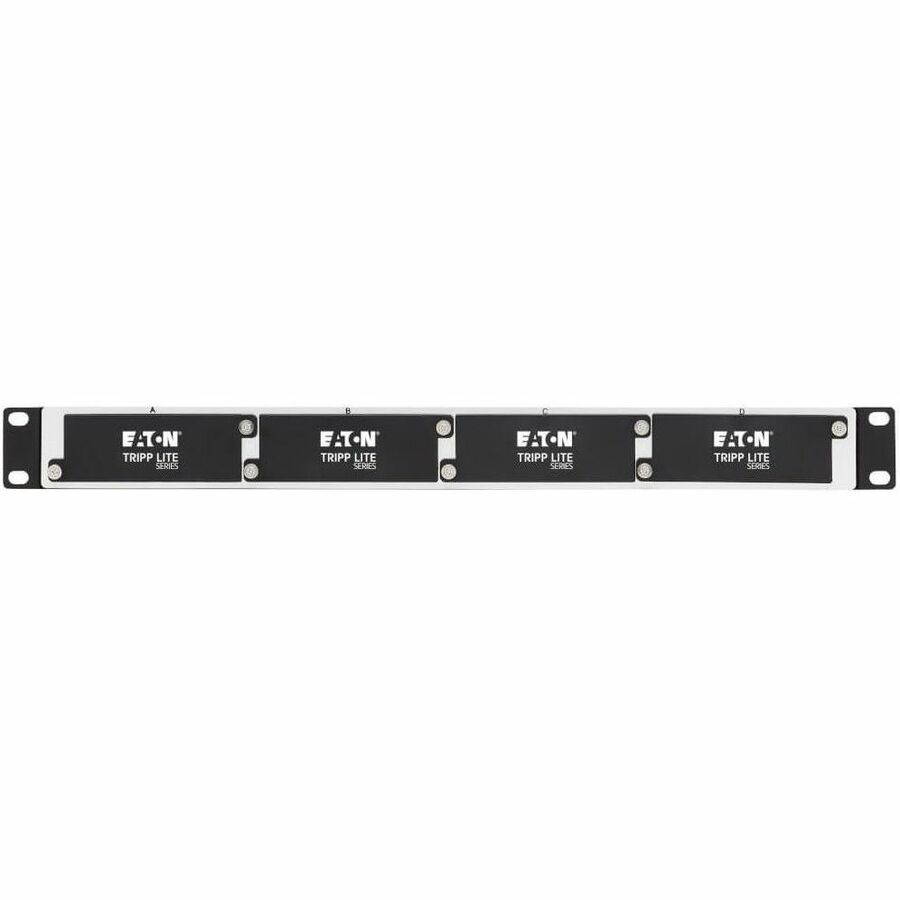

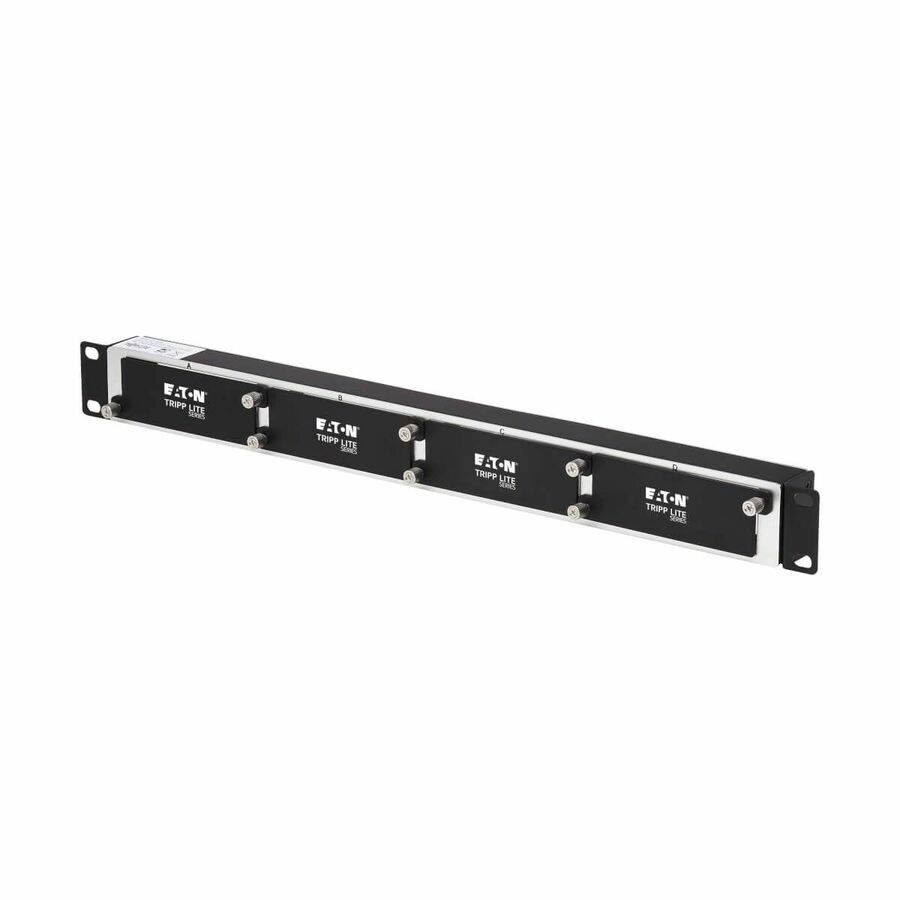

1U Copper/Fiber Enclosure Adds Up to 4 High-Density Cassettes to Your Rack Installation
Insert up to four Tripp Lite N484-Series copper and/or fiber cassettes (sold separately) into this cost-effective enclosure panel. Mounting in just 1U of space in an EIA-standard 19-inch rack, the compact N484-01U-MINI includes no protruding front door or rear cable management, which allows more inside rack space. It is ideal for a wide range of singlemode and multimode applications in small and medium enterprise environments where equipment is connected in up to three adjacent racks. The fully passive mini panel adds no heat or cooling load.
Easily Accommodates a Variety of Cassette Types
The heavy-duty steel N484-01U-MINI houses as many as four N484-Series cassettes, including RJ45 and SFP+ copper and LC duplex and MTP/MPO fiber, and 48 ports within its 1U chassis. In the case of fiber cassettes, the panel lets you interconnect any combination of 10 Gb, 40 Gb and 100/120 Gb network equipment in a simple, elegant and highly flexible way. It seamlessly connects to your existing cabling infrastructure and supports a wide range of applications and protocols in high-density telecom and data center environments.
Typical Applications
Connect, organize and manage copper and fiber optic cable connections in your high-density telecom or data center environment
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
1U rack-mount enclosure panel allows you to add up to 4 high-density copper or fiber cassettes to your rack installation.
1U chassis accepts fiber and copper cassettes, including RJ45, SFP+, LC and MTP/MPO
Allows interconnection of any combination of 10 Gb, 40 Gb and 100/120 Gb fiber equipment
Compact design eliminates front door and rear cable bar to allow more inside rack space
Fully passive mini enclosure panel adds no heat or cooling load
Ideal for single- and multimode applications in small/medium enterprise environments
This product is covered by a Lifetime Limited Warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N484-01U-MINI
Brand Name
Tripp Lite series
Product Model
N484-01U-MINI
Product Name
High-Density Copper/Fiber Enclosure Mini Panel, 1U, 4-Cassette Capacity
Product Type
Patch Enclosure
Physical Characteristics
Form Factor
Rack-mountable
Color Family
Black
Product Color
Black
Product Material
Cold Rolled Steel, Aluminum, Plastic
Height
1.7"
Width
19"
Depth
1.2"
Rack Height
1U
Weight (Approximate)
1.37 lb
Technical Information
Application/Usage
LAN Switch, Patch Panel
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
High-Density Copper/Fiber Enclosure Mini Panel, 1U, 4-Cassette Capacity
Quick Start Guide
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
