Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Faceplates & Mounting Boxes
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

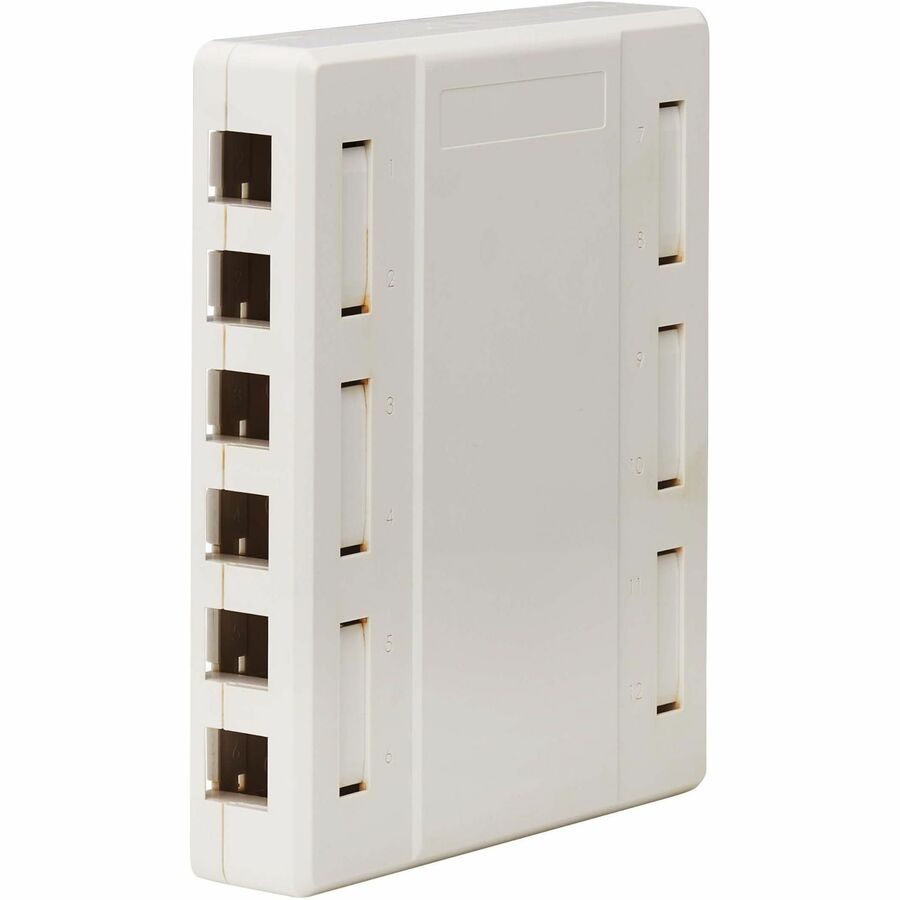

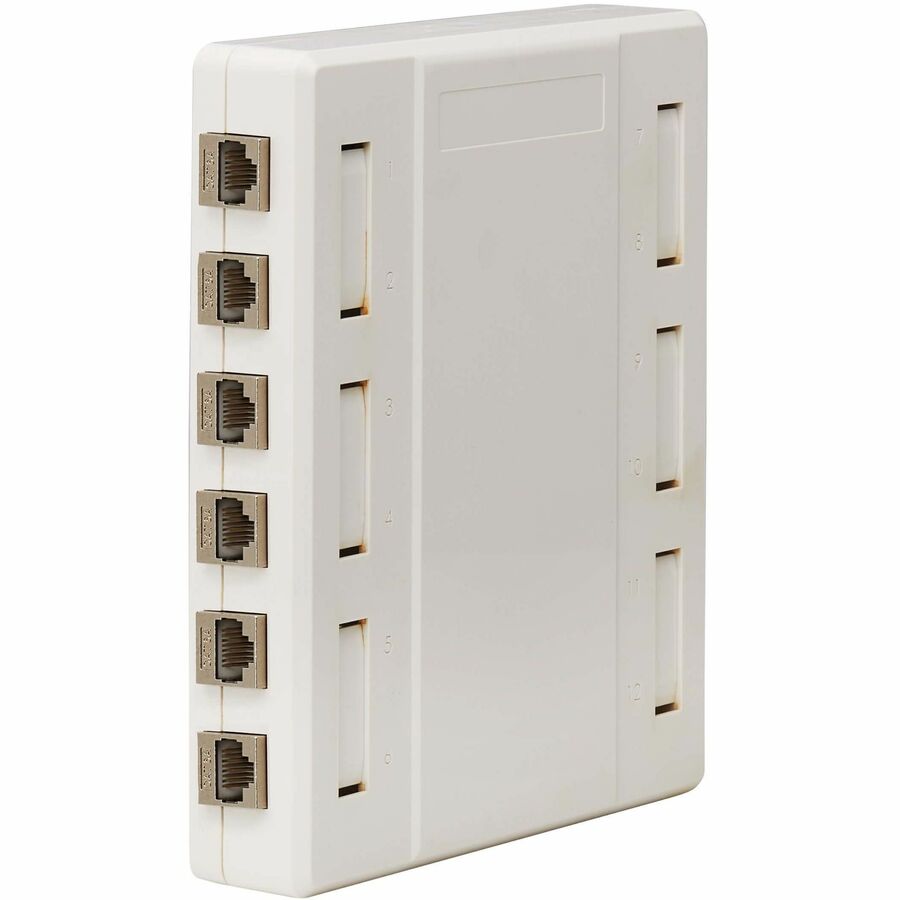

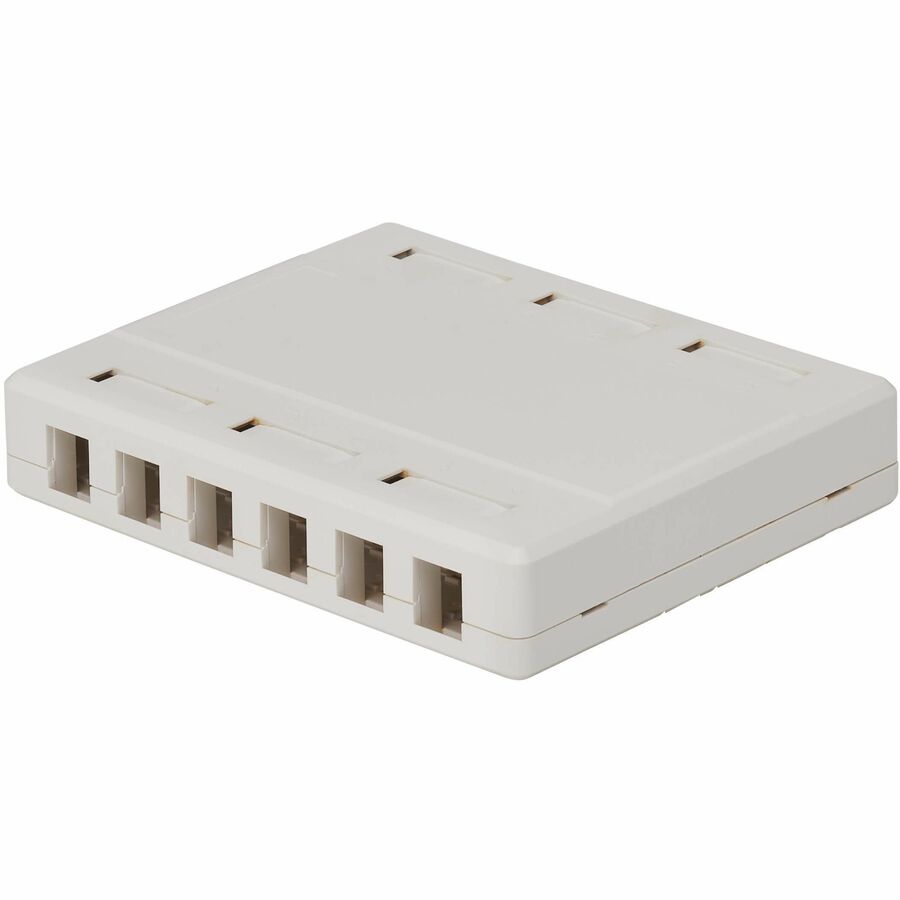

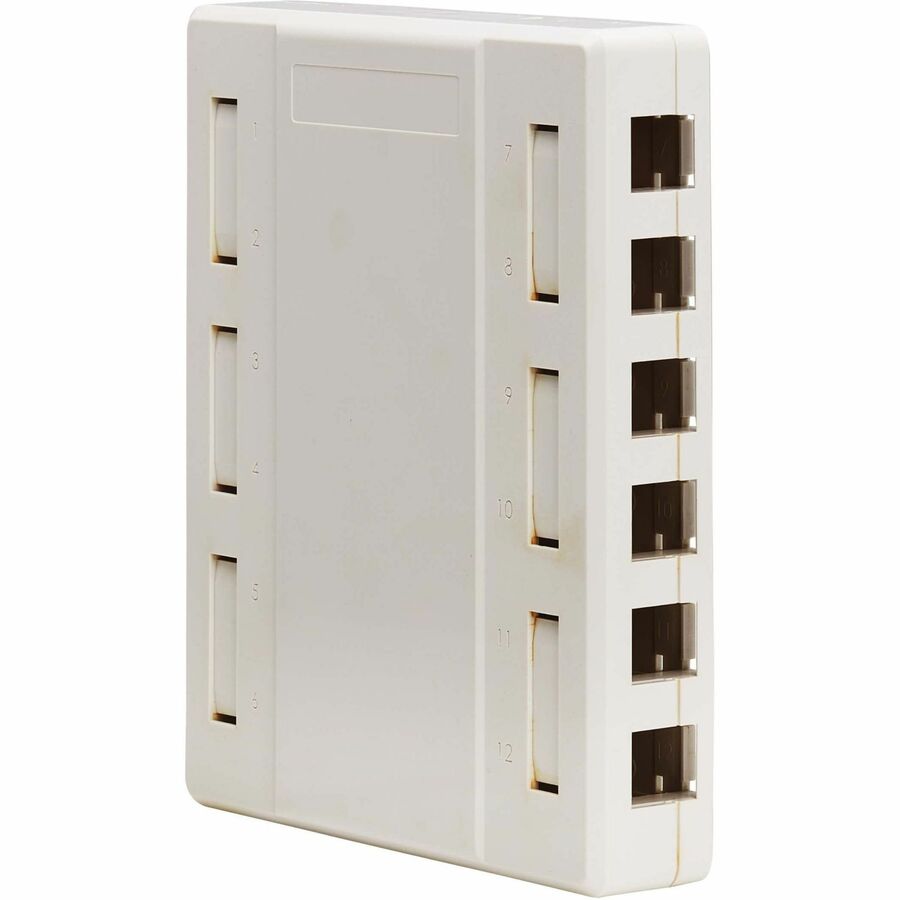

Surface-mount box provides 12 keystone jack connections for non-premise home theater, VoIP or Ethernet cable applications on a wall or ceiling.
Features | Connects Audio/Video, Voice and Data Cable Lines in Your Network
This surface-mount box provides a fast, easy, cost-effective method for expanding your home theater (audio/video), VoIP phone (voice) or Ethernet (data) network. Any type of keystone jack, including those used in HDMI, DisplayPort, RCA, USB and Cat5e/6/6a applications, snaps easily into the cutout for quick cable connection. The N082-012-WH is also compatible with right-angle keystone jacks with the use of the included adapters.
Easy to Install Where In-Wall Box and Wire Installation Is Impractical or Impossible
Just snap open the top cover to add up to 12 keystone jacks, then snap the cover closed. Use the included cable ties to secure cabling to the box. Vertical raceway slots at the top and bottom allow the box to be installed flush against a wall, ceiling or baseboard. Mounting screws are included.
TAA-Compliant for GSA Schedule Purchases
The N082-012-WH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal for non-premise audio/video, voice or Ethernet data wiring installations
Compatible with any type of keystone jack, including HDMI, Cat5/6, USB and DisplayPort
Cabling routes through breakout raceways for easy ID and cable organization
Compatible with right-angle keystone jacks with use of included adapters
Mounting hardware included for easy installation out of the box
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N082-012-WH
Brand Name
Tripp Lite series
Product Model
N082-012-WH
Product Name
Surface-Mount Box for Keystone Jacks - 12 Ports, White
Product Type
Mounting Box
Physical Characteristics
Color Family
White
Product Color
White
Product Material
Acrylonitrile Butadiene Styrene (ABS)
Height
1.3"
Width
5.5"
Depth
6.7"
Technical Information
Number of Unloaded Sockets
12
Total Number of Sockets
12
Mount Type
Wall Mount, Ceiling Mount, Surface Mount
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Surface-Mount Box for Keystone Jacks - 12 Ports, White
8 x Mounting Screws
4 x Cable Ties
12 x Keystone Jack Interface Adapters
Installation Instructions
4 x Self Tapping Screws
Application/Usage
Home Theater, VoIP
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
