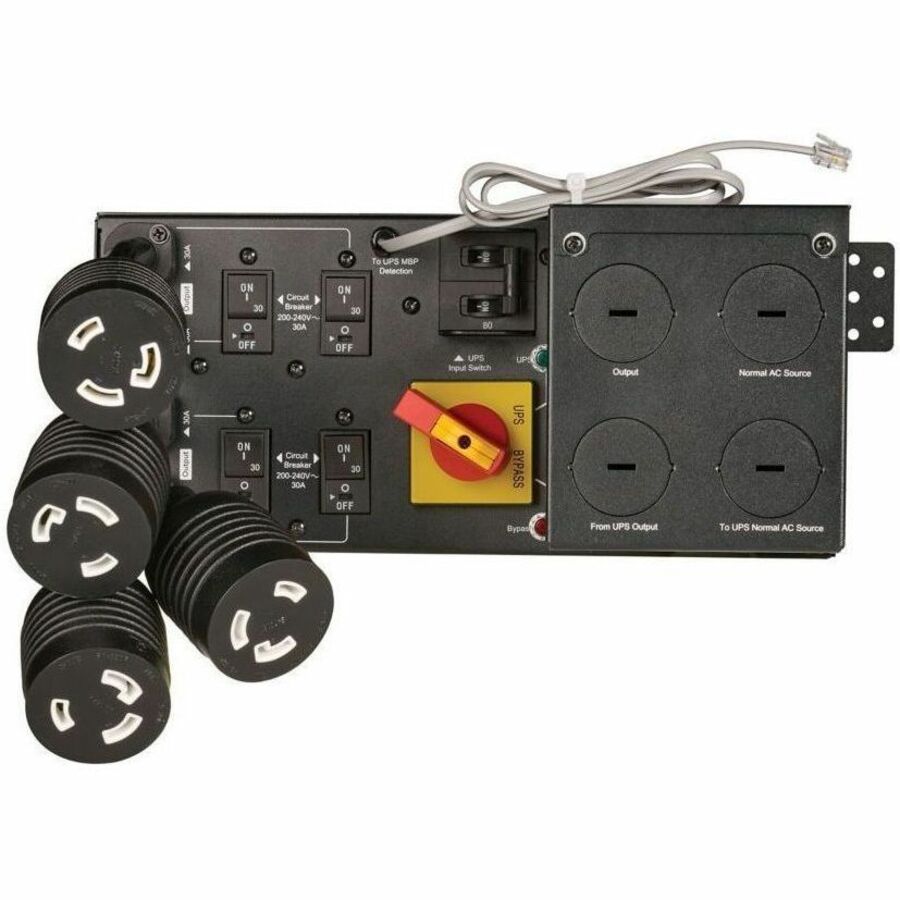

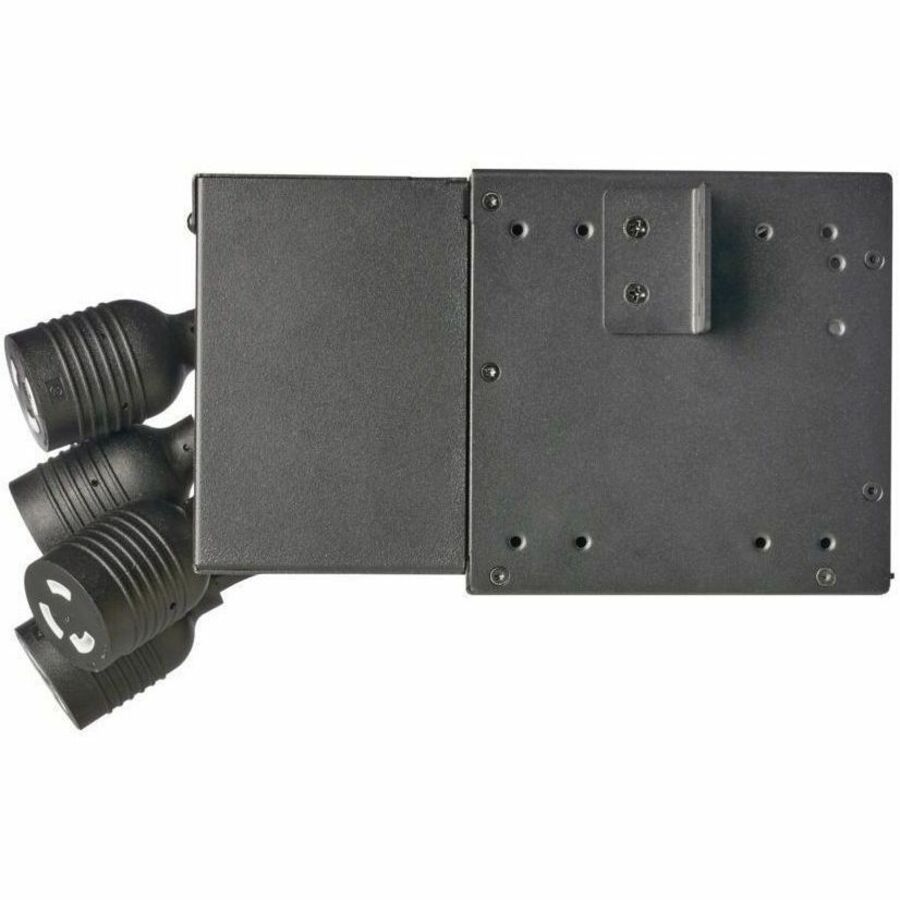

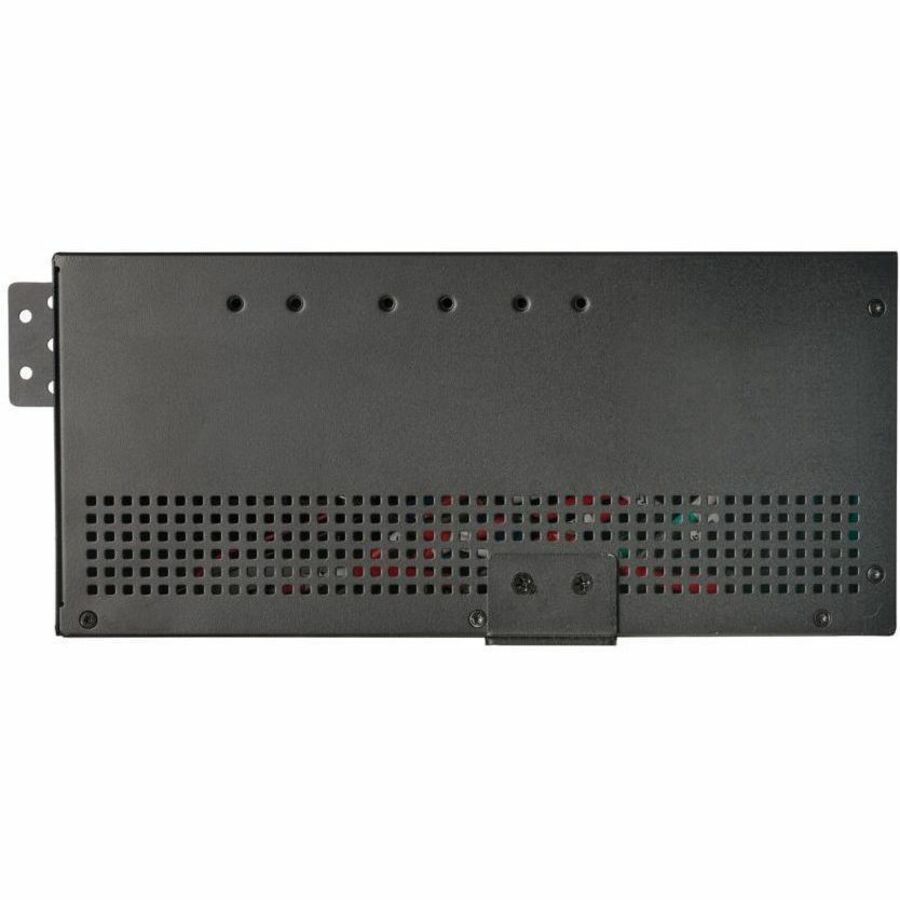

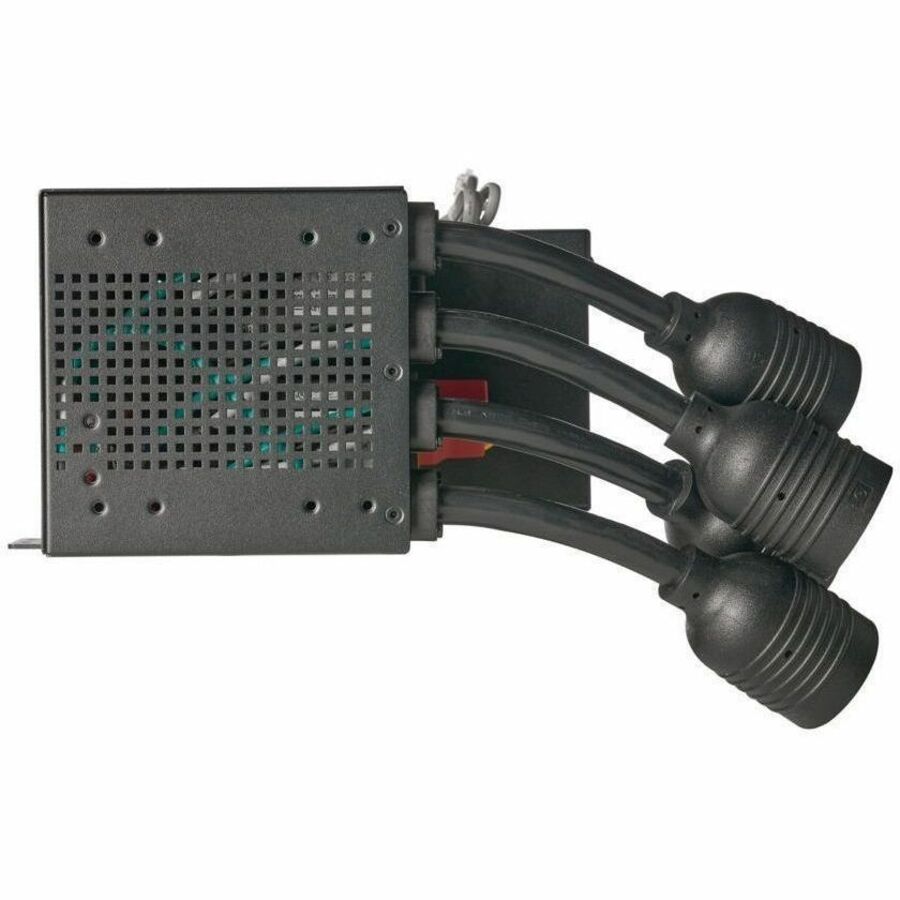

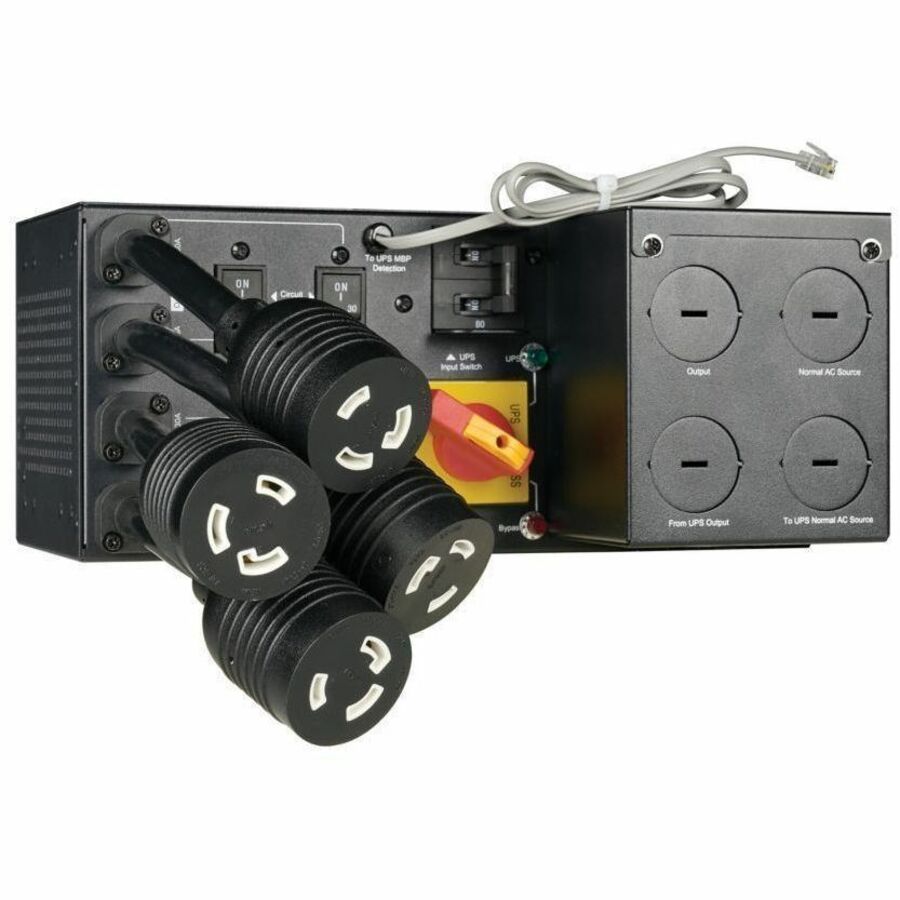

Eaton 9PX G2 Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 4 L6-30R Outlets, 0U Rack/Tower/Wall
Eaton

Eaton 9PX G2 Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 4 L6-30R Outlets, 0U Rack/Tower/Wall

4 x NEMA L6-30R - 11 kW/11 kW

SKU
MBP11K208G2
Category
Transfer Switches

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MBP11K208G2
Category
Transfer Switches

Overview

Features | Compatible with Select Eaton 8kVA/11kVA 9PX G2 UPS Systems

The MBP11K208G2 works with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2 and 9PX11KTF5G2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

The MBP11K208G2 features hardwired input and output connections, as well as four NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Isolates UPS from connected loads for maintenance without powering down equipment
  • Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
  • Compatible with Eaton's 8kVA to 11kVA 9PX G2 UPS systems
  • 3-year limited warranty

Specifications

Package Contents
  • MBP11K208G2 Bypass Switch
  • 2 x Input/output Covers
  • Input/output Cover Fixation Kit
  • 2 x Conduits for UPS Input/output Connection
  • 4 x Conduit Fittings
  • Mounting Hardware
Product TypeBypass Switch
CompatibilityEaton 9PX G2 UPS Systems: 9PX8KG2 9PX8KTF5G2 9PX11KG2 9PX11KTF11G2 9PX11KTF5G2
Manufacturer Part NumberMBP11K208G2
Limited Warranty3 Year
Output Voltage208 V AC, 220 V AC, 230 V AC, 240 V AC
Form FactorRackmount/Tower/Wall-mountable
ManufacturerEaton Corporation
Product ModelMBP11K208G2
Product NameMBP11K208G2 Bypass Switch
Receptacles4 x NEMA L6-30R
Rack Height0U
Brand NameEaton
Plug/Connector TypeHardwired
Country of OriginPhilippines
Height5.1"
Width11.2"
Depth5.1"
Load Capacity (VA)11 kW
Load Capacity (Watt)11 kW
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
