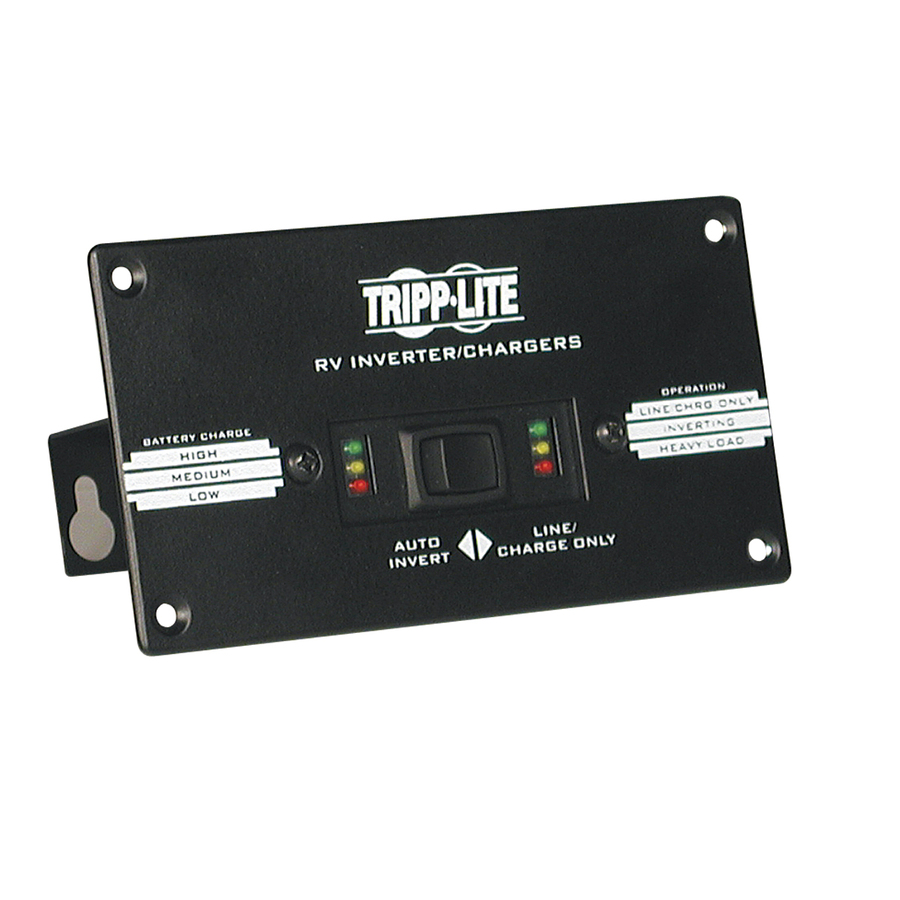

Tripp Lite by Eaton Remote Control Module for PowerVerter Inverters and Inverter/Chargers

The APSRM4 Remote Control Module lets you monitor and control your Tripp Lite PowerVerter inverter (PV-Series) or inverter/charger (RV-, APS- and EMS-Series) from up to 50 feet away. Ideal for automotive, remote site, industrial, commercial and residential applications, the APSRM4 mounts easily in a variety of locations and configurations, including below a dashboard, so you can control your inverter or inverter/charger from the comfort of your vehicle.Monitor battery charge level and the connected inverter's mode at a glance via the front-panel LEDs. The compact, heavy-duty all-metal housing also includes a convenient switch that lets you toggle between inverter and charger modes. A master override port enables automatic shutdown under various conditions, such as when the vehicle's ignition is on or off, the battery is disconnected or water is encroaching.Built-in mounting slots and a 50-foot cable provide plenty of flexibility in mounting and operating the APSRM4. You can even daisy-chain multiple units to connect to a single inverter or inverter/charger. A faceplate is included for front-panel mounting in an RV, boat or other vehicle. More from the Manufacturer

Remote Control for Inverter / Charger APS / PV models w/ RJ45

Get reliable monitoring and control at automotive, remote site, industrial, commercial or residential applications with Tripp Lite's APSRM4 Remote Control Module for Tripp Lite PowerVerter® Inverters and Inverter/Chargers (RV-, APS- and EMS-series). This versatile module allows for complete remote control of an inverter or inverter/charger from up to 50 ft. away. It features a convenient, traffic light-style LED array to display battery charge and operation status, as well as a mode control switch. The APSRM4's design enables front-panel, rear-panel and below-dash mounting, and the unit comes with a master override port that shuts off the connected inverter or inverter/charger under various conditions. With heavy-duty metal construction and a lifetime product warranty, the APSRM4 guarantees peace of mind.

Remote Monitoring and Control in Inverter and Inverter/Charger Applications

With the APSRM4, you can monitor and control your inverter or inverter/charger in automotive, remote site, industrial, commercial and residential applications from up to 50 ft. away. The remote module displays battery charge and operation status and features a switch that allows you to switch between inverter modes. With its RJ45-type connector and built-in mounting slots, the APSRM4 is simple to install and use.

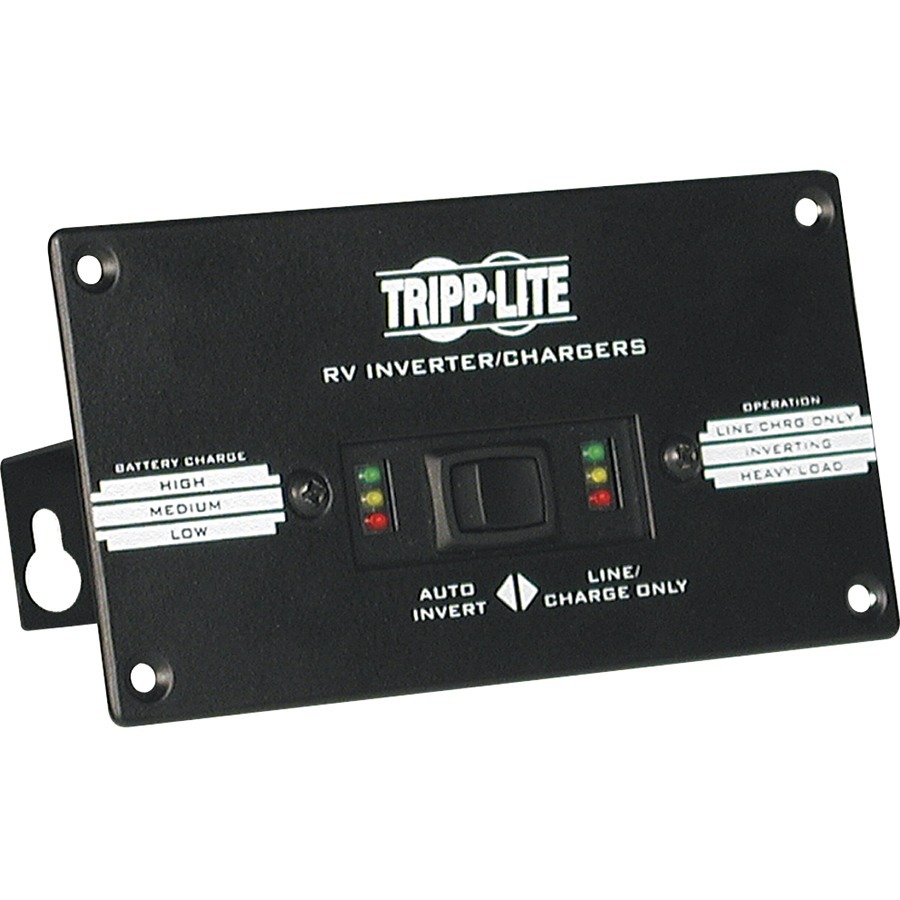

Intuitive LED Array

The module features 2 sets of 3 stoplight-style LEDs for easy, intuitive use. One set displays the battery charge level (High, Medium, Low) while the other shows the connected inverter or inverter/charger's mode (Line/Charge, Inverting, Heavy Load). The APSRM4's switch allows quick toggling between Inverter and Charger modes.

Master Override Capability

The APSRM4 comes with a master override port that enables automatic shutdown of the connected inverter under the following vehicle conditions: Ignition ON (prevents distractions from connected equipment while driving); Ignition OFF (prevents inadvertent battery drain while parked); Battery Disconnect (ensures safe shutoff when the battery system is disconnected separately); Water Encroachment (reduces shock hazard in marine applications).

Versatile Installation Options

With its built-in mounting slots and 50-ft. cable, the APSRM4 can be installed in a variety of locations and configurations, including front-panel, rear-panel and below a dashboard or compartment. A daisy-chain port allows multiple remote modules to be connected to a single inverter or inverter/charger.

Lifetime Product Warranty

The APSRM4 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a lifetime warranty.
