4G - LTE Advanced, LTE Cat 7 - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 37.50 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - Fast Ethernet - VPN Supported - DIN Rail Mountable
$837.81
Special order — estimated available by September 10, 2026.
Genuine Digi International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Versatile networking for critical applications - rugged, secure LTE router
Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.
The high-performance architecture of the Digi IX20 router provides automatic and software-selectable primary and backup WWAN connectivity over multi-carrier cellular LTE. Digi IX20 supports advanced security (stateful firewall, MAC filtering and VPN), cellular redundancy (Digi SureLink®) and management (SNMP, event logging, analyzer trace and QOS), facilitating use in PCI or NERC-CIP compliant applications. FirstNet Ready? models are designed to meet the demands of primary responders for critical communications.
Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® (Digi RM) - the command center for your deployment. Digi RM is a cloudbased solution that facilitates easy setup, mass configuration, maintenance and support, even for thousands of devices. In the event of an interruption to your primary network connection, Digi RM also provides secure, out-of-band management access to Digi IX20 through a serial port and command-line interface.

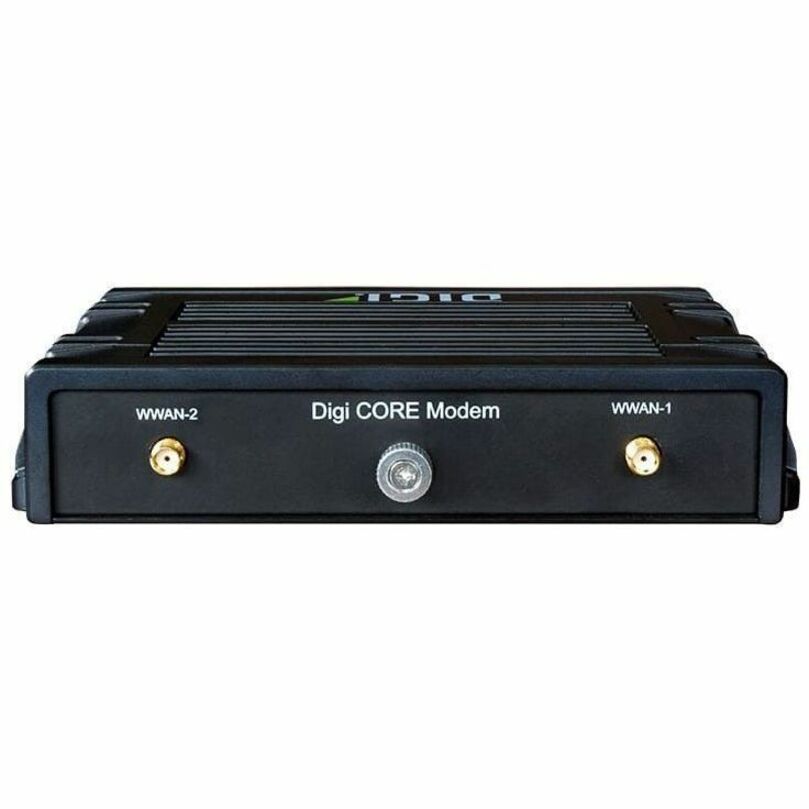

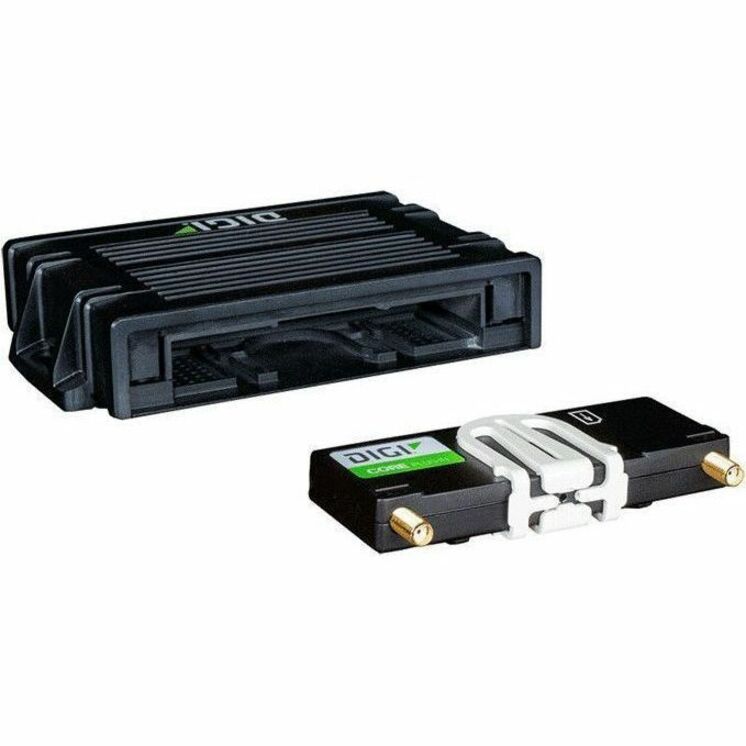

The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE® plug-in LTE modems that can be changed out or upgraded without replacing the entire router.
FEATURES AND BENEFITS
• Compact and economical cellular routing platform with industrial feature set
• Redundant connectivity with dual SIMs and Digi SureLink
• FirstNet Ready? models for first responder communications
• Global bands and single part number to simplify global distribution, deployment and management
• Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support
• Digi Remote Manager platform for easy setup, mass configuration and out-of-band management

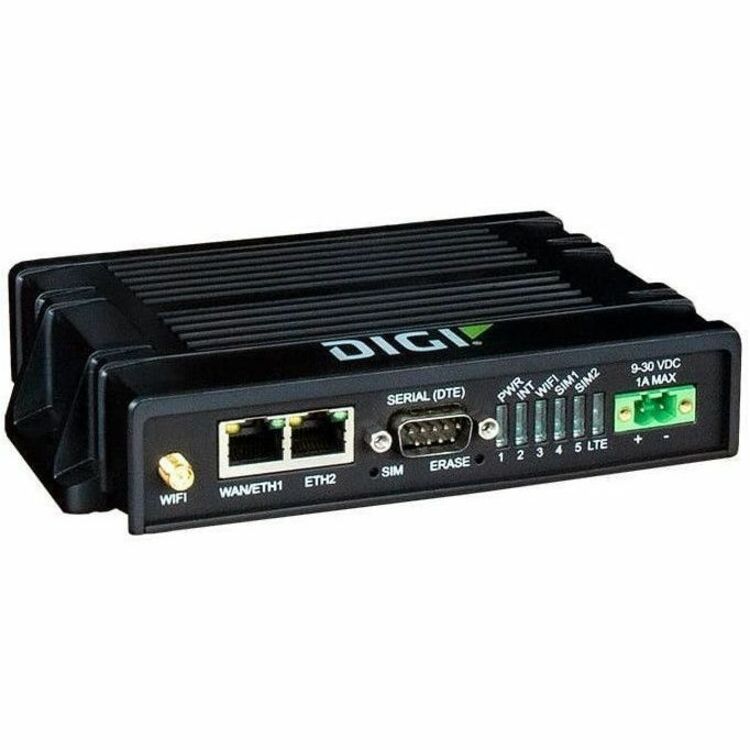

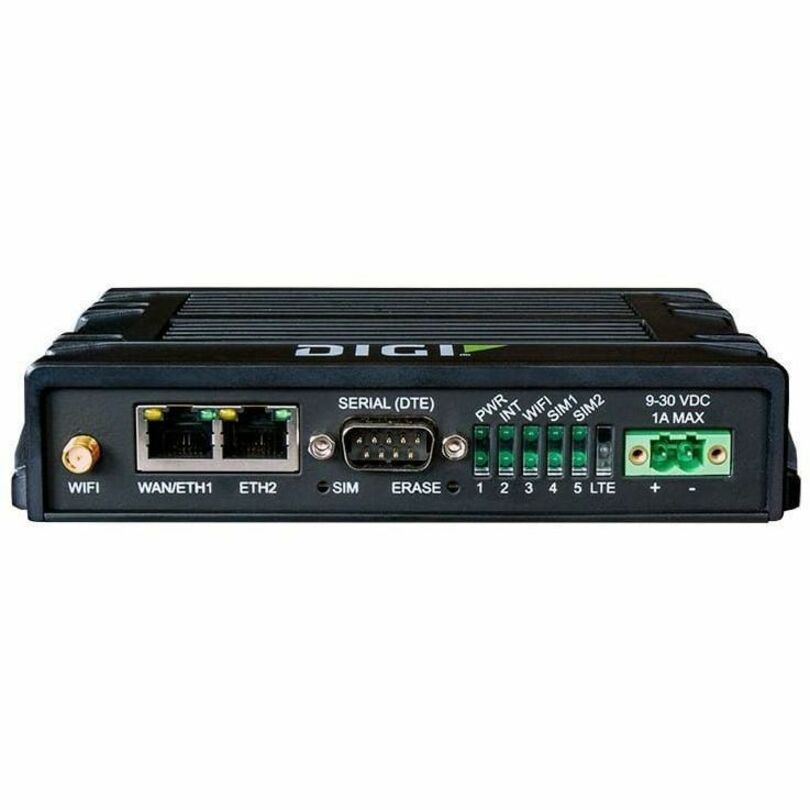

• Dual Ethernet ports and single serial (RS-232) port
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | Digi International |
| Manufacturer Part Number | IX20-W007 |
| Brand Name | Digi |
| Product Model | IX20 |
| Product Name | IX20 Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini |
| Physical Characteristics | |
| Product Material | Polyphenylene Sulfide (PPS) |
| Form Factor | DIN Rail Mountable |
| Height | 1.4" |
| Width | 6.4" |
| Depth | 4.2" |
| Weight (Approximate) | 1.43 lb |
| Storage | |
| Flash Memory Capacity | 256 MB |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Network Band | Dual Band |
| Standard Memory | 256 MB |
| Warranty | |
| Limited Warranty | 3 Year |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular, Ethernet |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 4G |
| Cellular Data Connectivity Technology | LTE Advanced, LTE Cat 7 |
| Total Wireless Transmission Speed | 37.50 MB/s |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3 |
