Overview

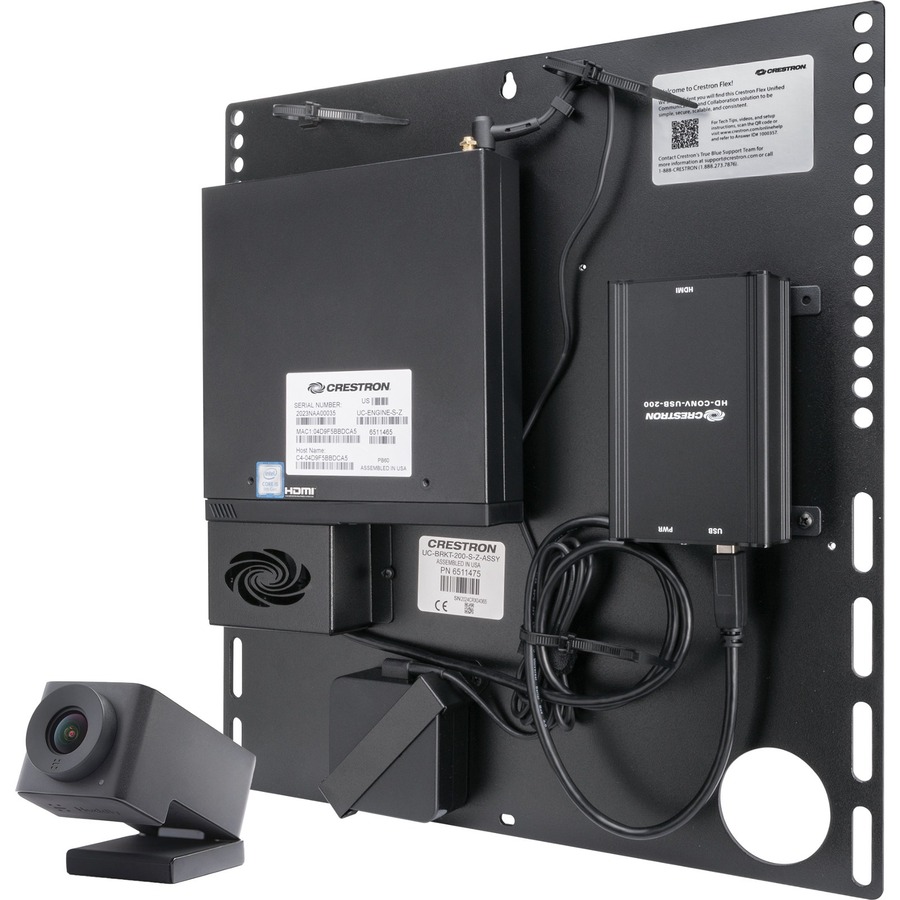

The UC-M50-Z-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS-UC-1, CCS-UC-1-AV, or CCS-UC-1-AV-PLUS) to a complete video conference system for use with Zoom Rooms software. It supports single or dual video displays and features a collaboration camera, a UC Bracket Assembly and cables.
Native Zoom Rooms Software Experience
The UC-M50-Z-UPGRD system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Simplified Deployment

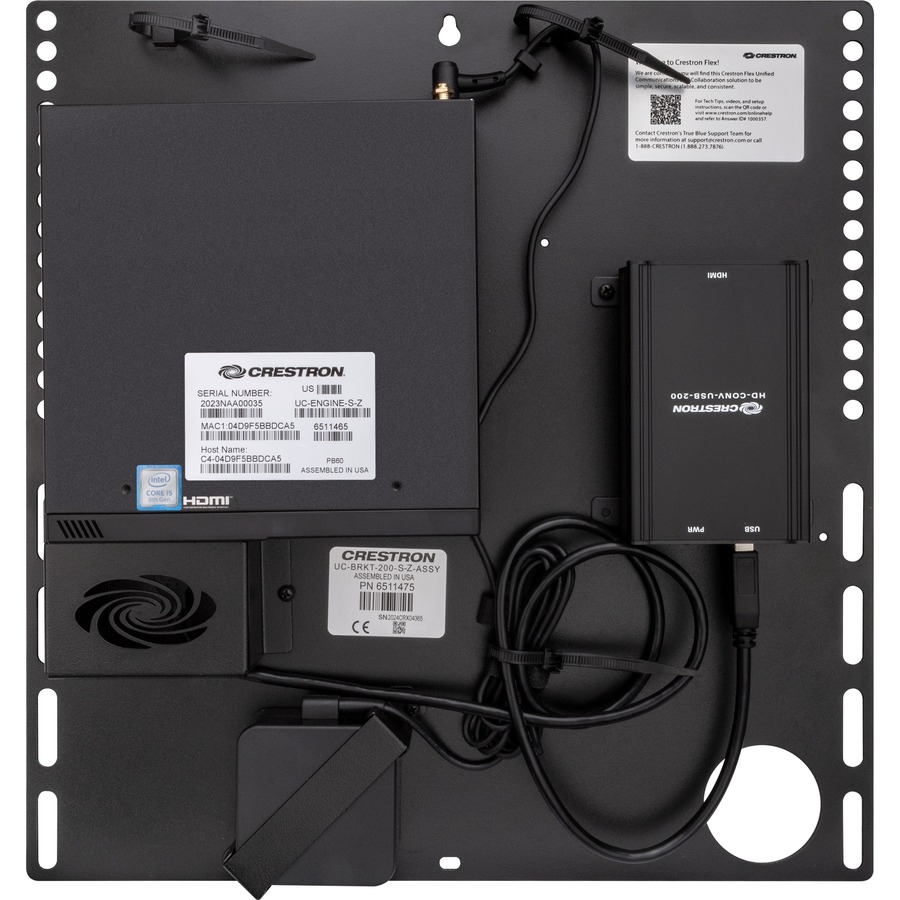

The UC Bracket Assembly (UC-BRKT-200-S-Z-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing

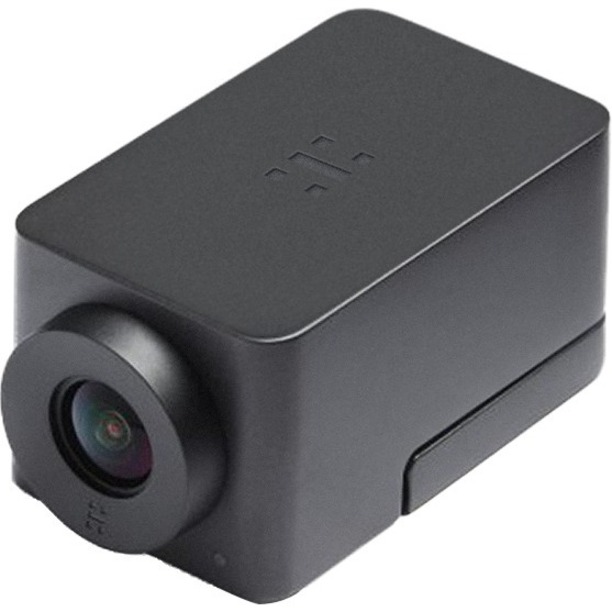

The included collaboration camera (CCS-CAM-USB-F-400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows® software update.
Specifications
General Information
Manufacturer
Crestron Electronics, Inc
Manufacturer Part Number
6511958
Brand Name
Crestron
Product Name
Upgrade Kit
Product Type
Upgrade Kit
Physical Characteristics
Product Material
Metal
Dimensions
Camera : Height: 1.40 in. (36 mm) Width: 1.60 in. (41 mm) Depth: 2.82 in. (72 mm) UC Bracket Assembly: Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Depth: 1.72 in. (44 mm)
Weight (Approximate)
Camera : 4.2 oz (120 g) UC Bracket Assembly: 6.64 lb (3 kg)
Miscellaneous
Package Contents
UC-ENGINE-S-Z: UC Engine for Zoom Rooms video
HD-CONV-USB-200: HDMI® to USB 3.0 converter for content ingest
Mounting hardware
EDID Passthroughs: (2) HDMI Female-to-Male
Collaboration Camera
DisplayPort to HDMI Cable, 6 ft (1.8 m)
Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
HDMI Interface Cable, 6 ft (1.8 m)
HDMI Interface Cable, 20 ft (6.1 m)
USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m)
USB 3.0 Cable, Right angle USB-C® to A, 6 ft (1.8 m)
