Genuine Broadcom through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
LPE12002
Category
Host Bus Adapters
Overview
Unparalleled manageability, reliability, performance and ease of deployment

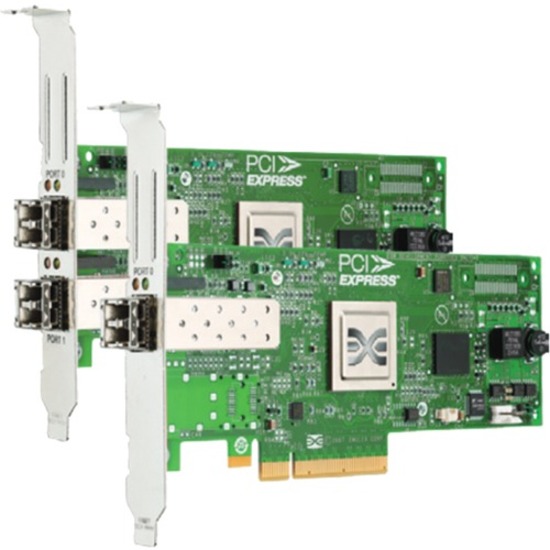

Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-port Emulex LightPulse LPe12000 and dual-port LPe12002 8Gb Fibre Channel (8GFC) Host Bus Adapters (HBAs) ideal solutions for enterprise, mixed-OS and virtual server environments.
Proven Design, Architecture and Interface
Emulex LightPulse HBAs' highly integrated processor design minimizes onboard components to improve host performance and efficiency. Advanced error-checking features ensure the integrity of block data as it traverses the Storage Area Network (SAN). Emulex's firmware-based architecture enables feature and performance upgrades without costly hardware changes. The unique Service Level Interface (SLI?) allows use of a common driver across all models of Emulex HBAs on a given OS platform. Installation and management facilities are designed to minimize server reboots and further simplify deployment. Emulex is trusted by data centers the world-over, with more than 12 million HBA ports shipped and installed to date.
Powerful Management Software for Maximum Data Center Efficiency
The Emulex OneCommand® Manager enterprise-class management application features a multiprotocol, cross-platform architecture that provides centralized management of all adapters provided by Emulex. This enables IT administrators to manage network connectivity with one tool for maximum efficiency. OneCommand Manager also features:
• OneCommand® Manager plug-in for VMware vCenter Server-enables comprehensive control of Fibre Channel HBAs and network (FCoE, iSCSI and TCP/IP NIC) connectivity solutions provided by Emulex from VMware's vCenter Server management console. Emulex OneCommand Manager plug-in for VMware vCenter Server supports both the new VMware vSphere 5.1 Web Client and the VMware vCenter Server desktop client with an identical feature set regardless of the client.
Highlights
Fibre channel host bus adapter - Delivers improved security, quality of service (QoS), and empowers dynamic provisioning
Can connect up to 2 fiber channel peripherals
With increased scalability, PCI Express 2.0 delivers up to 16GB/s of concurrent bandwidth
With the data speed of 8.50 Gbit/s, get a quick response while updating or transferring files
Specifications
General Information
Manufacturer
Broadcom Corporation
Manufacturer Part Number
LPE12002
Brand Name
Broadcom
Product Line
LightPulse
Product Model
LPE12002
Product Name
LightPulse LPe12002 Fibre Channel Host Bus Adapter
Product Type
Fibre Channel Host Bus Adapter
Media & Performance
Media Type Supported
Optical Fiber
Fiber Optic Cable Core/Cladding Specification
50/125 µm
Fiber Mode Supported
Multi-mode
Data Transfer Rate
8.50 Gbit/s
Physical Characteristics
Form Factor
Plug-in Card
Card Height
Low-profile
Height
2.7"
Width
6.6"
Technical Information
Total Number of Fibre Channel Ports
2
Number of LC Ports
2
Host Interface
PCI Express 2.0
Fiber Channel Port Type
N_Port
Fibre Channel Class Supported
Class 3, Class 2
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
