Brainboxes Pure Embedded DC-DC Industrial Power Supply Module 3.3V, 4W
4 W - 5 V DC, 30 V DC - For Network Switch - Modular - Reverse Polarity Protected - TAA Compliant
SKU
Category
Power Modules
$55.51*
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Power Modules
Country of origin
Great Britain
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

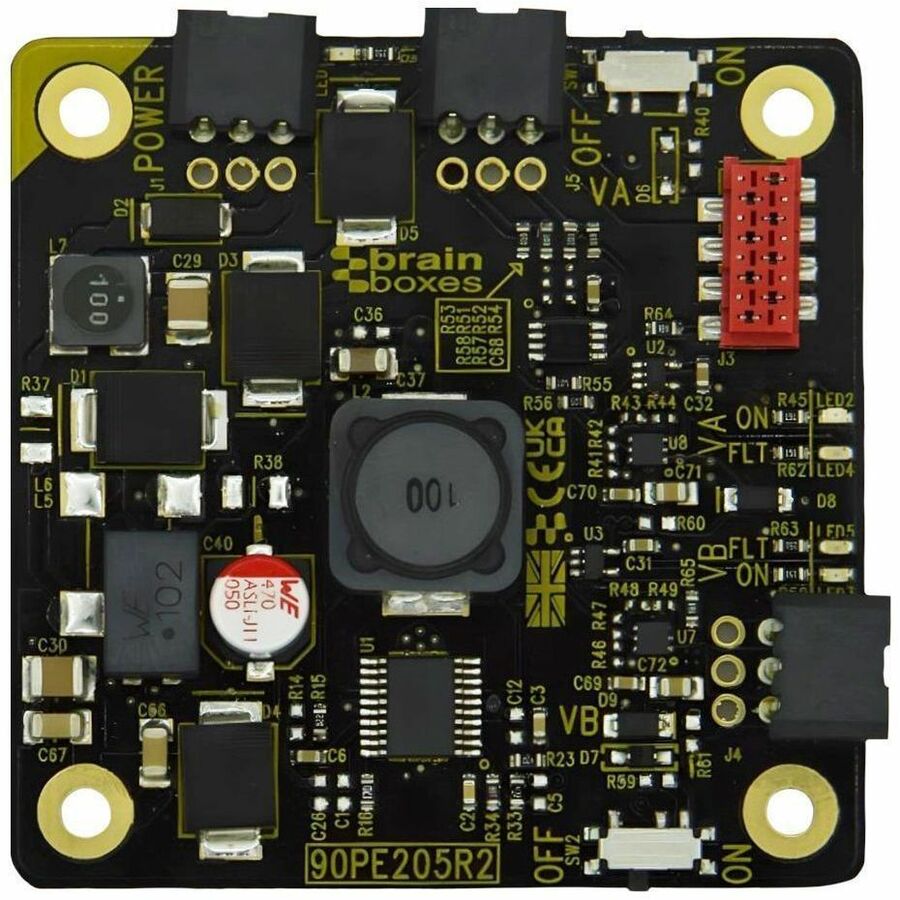

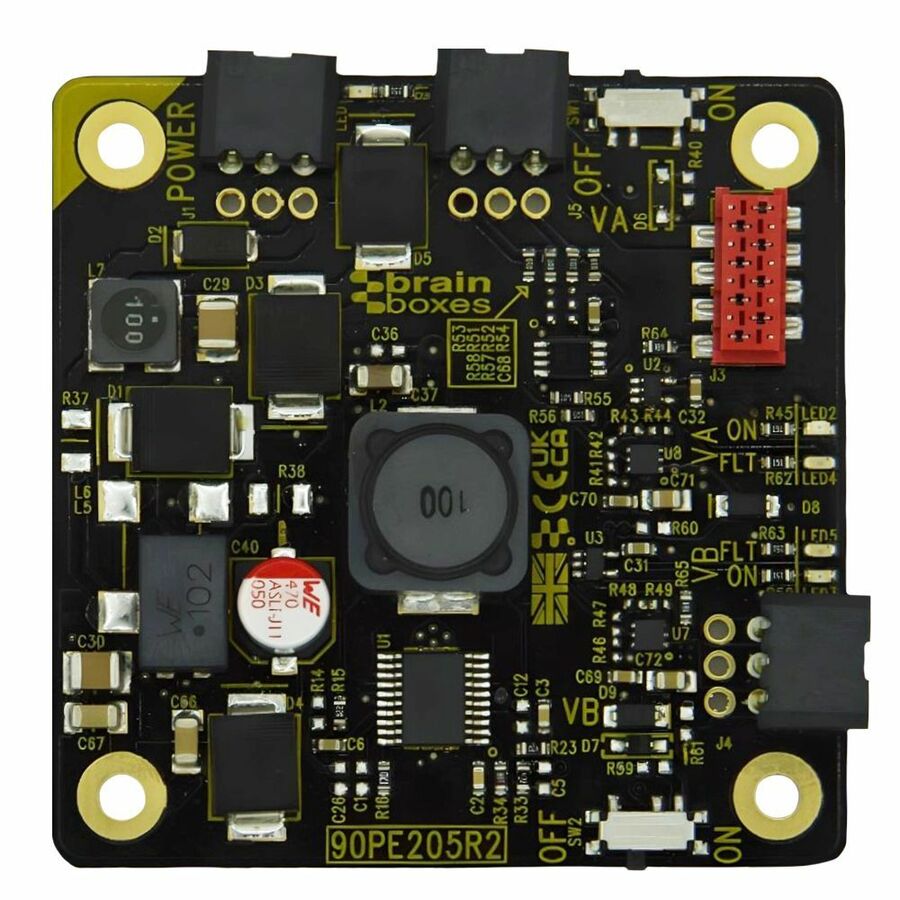

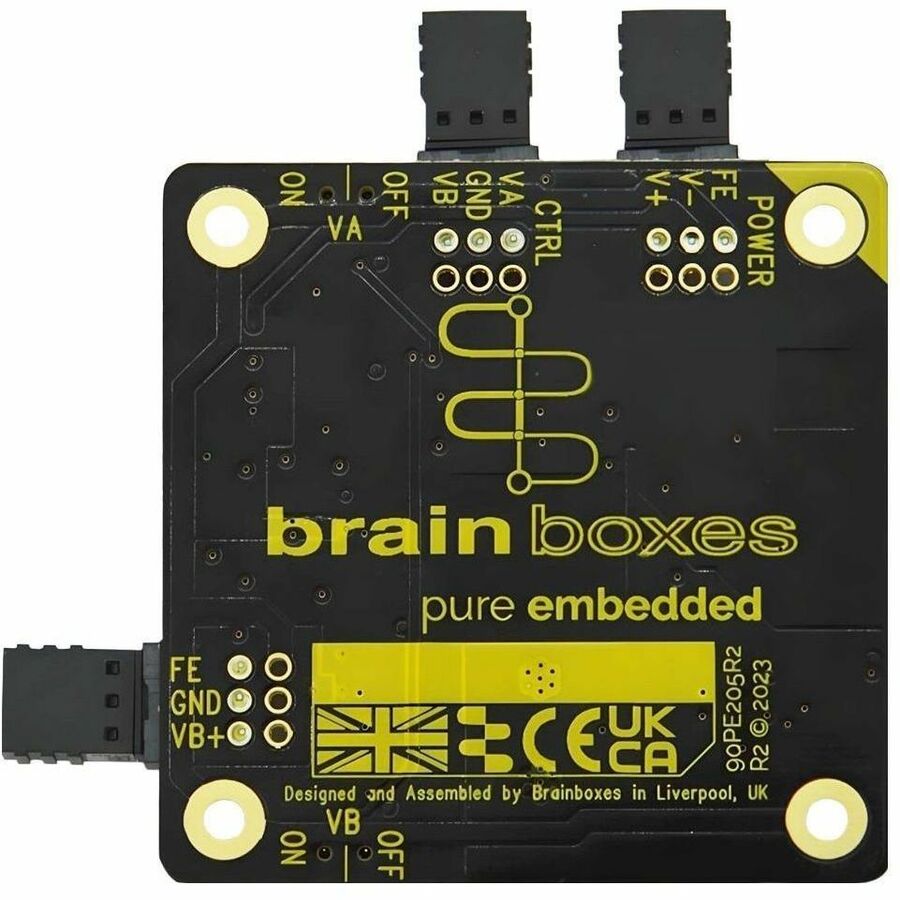

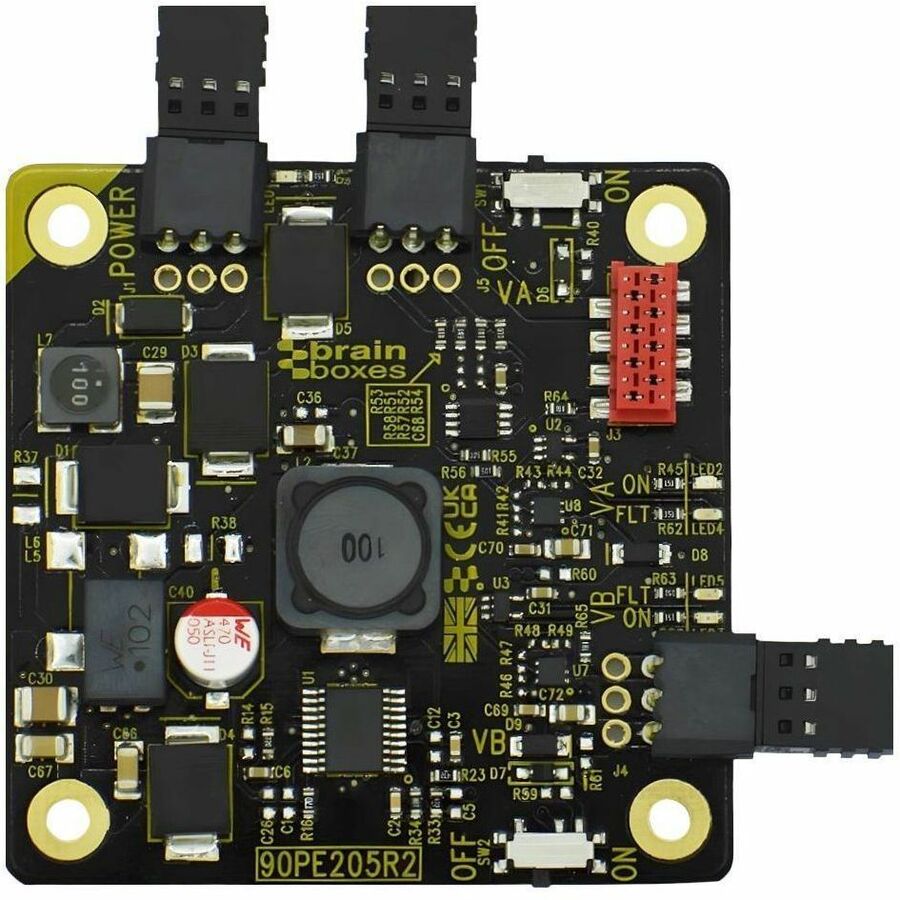

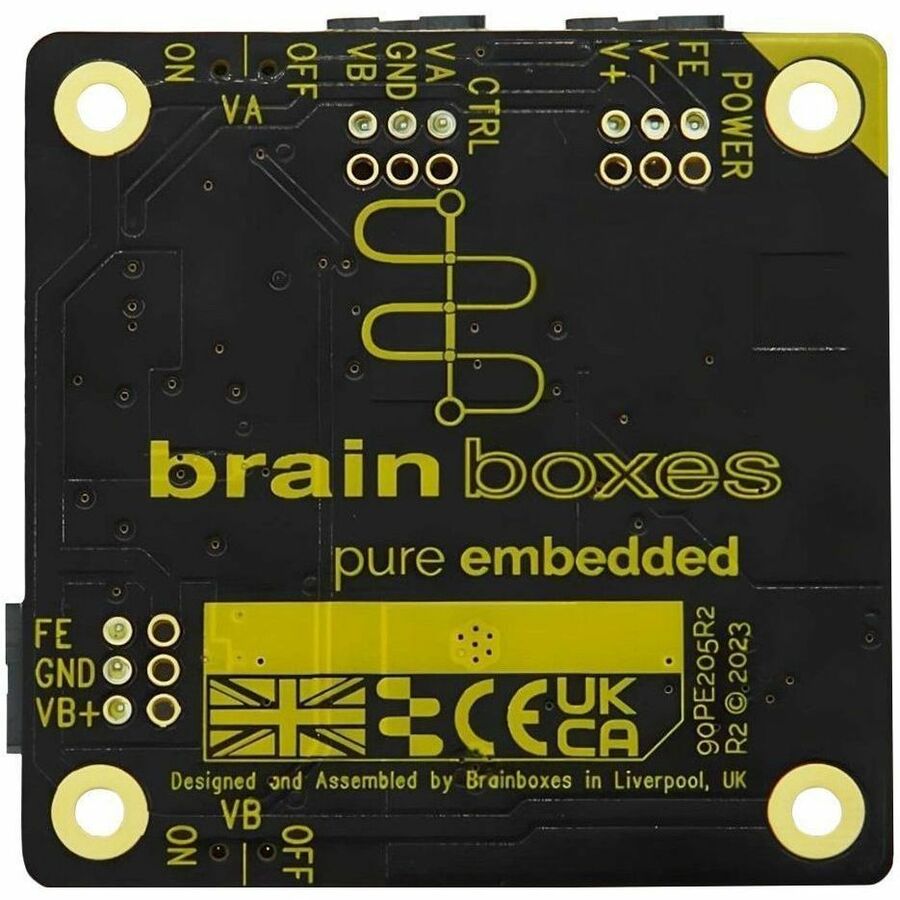

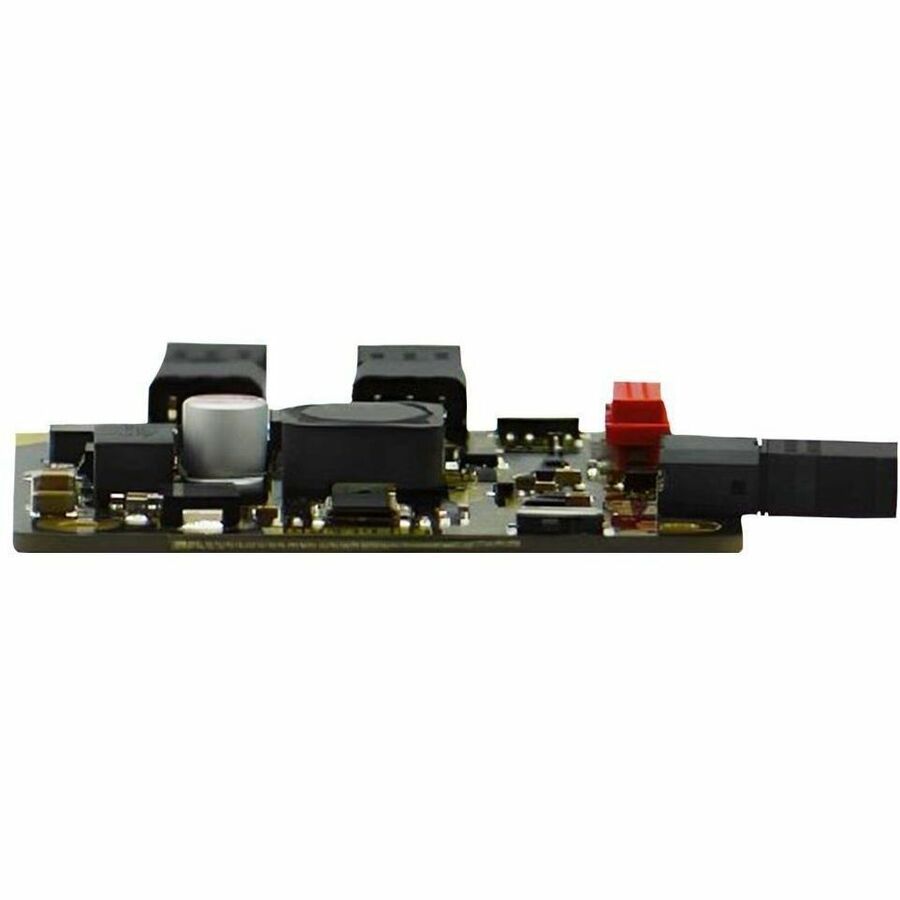

PE-205 Pure Embedded Power Supply Module is acompact, industrial DC-DC power supply module offering a wide +5 to +30VDC input range, with two 3.3V outputs, designed to allow seamless integration with Brainboxes' Pure Embedded (PE) range of compact industrial switches, or any other low voltage device where space is a premium.
Warranty
Limited Warranty: Lifetime
Highlights
Supports modular stacking with Brainboxes Pure Embedded (PE-5XX) range
Stability of design guaranteed compatibility until at least 2035 (Minimum 10 years)
Compact form - smaller than a standard business card (board size just 55 x 55 mm)
Seamless integration with design software - logical placements and fixed distances
Power output control - Switch power outputs on/off remotely
Wide voltage input range: +5 to +30 VDC - Can be powered form a variety of sources
2D & 3D design resources available
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
PE-205
Brand Name
Brainboxes
Product Name
Pure Embedded DC-DC Industrial Power Supply Module 3.3V, 4W
Packaged Quantity
1 Pack
Product Type
Power Module
Physical Characteristics
Form Factor
Modular
Height
0.4"
Width
2.6"
Depth
2.6"
Weight (Approximate)
0.78 oz
Power Description
Input Voltage
5 V DC, 30 V DC
Output Voltage
3.3 V DC
Output Current
1.20 A
Output Power
4 W
Technical Information
Features
Reverse Polarity Protected
Application/Usage
Network Switch
Warranty
Limited Warranty
Lifetime
Miscellaneous
Certifications & Standards
CE
FCC
NDAA
UKCA
IEC/EN/BS 62368-1
EN/BS 55032
EN/BS 55035
UL-94 V0
2015/863/EU
IEC/EN/BS 63000
(EC)1907/2006
EN 60068-2-31
ISO9001
ISO14001
AEO (C-TPAT)
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
