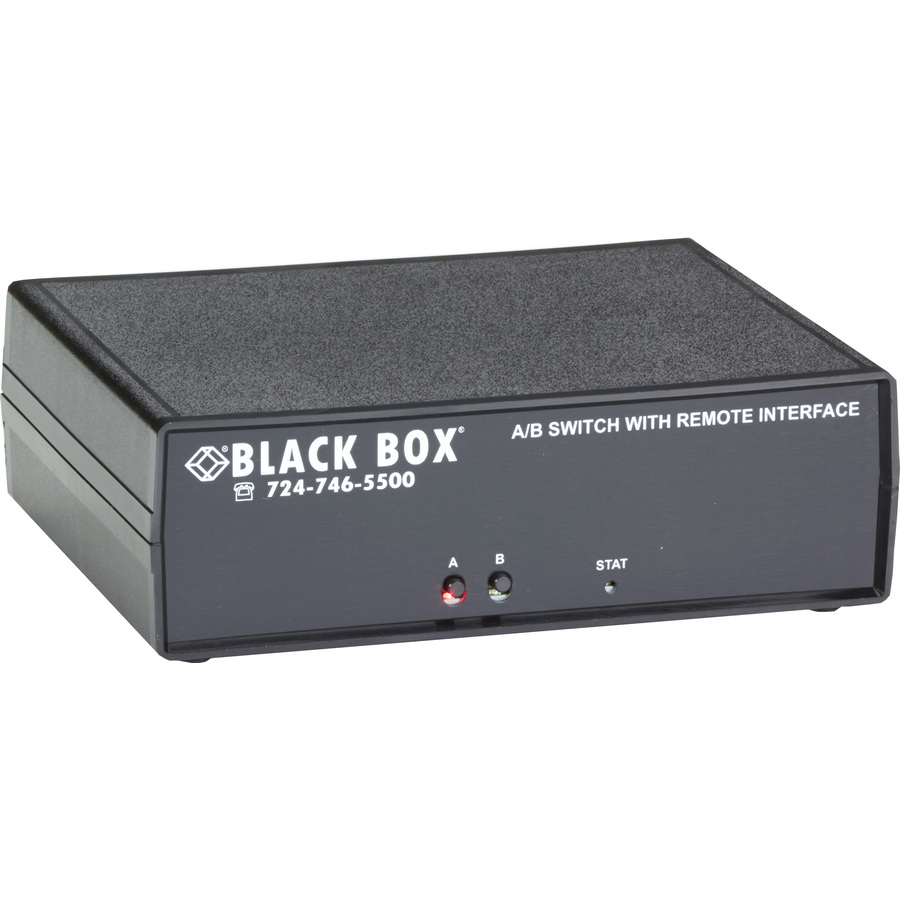

Black Box - Fiber Optic A/B Switch - Latching, SC Multimode Remote Control, Dry Contact
- SwitchingTAA Compliant
- SKU
- SW1043A-MM
- Category
- Serial/Parallel Switchboxes
MSRP$2,030.79
$1,833.38
Save 10%In stock: 3
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SW1043A-MM
- Category
- Serial/Parallel Switchboxes
Overview
• Durable and reliable. Tested to 1,000,000 cycles

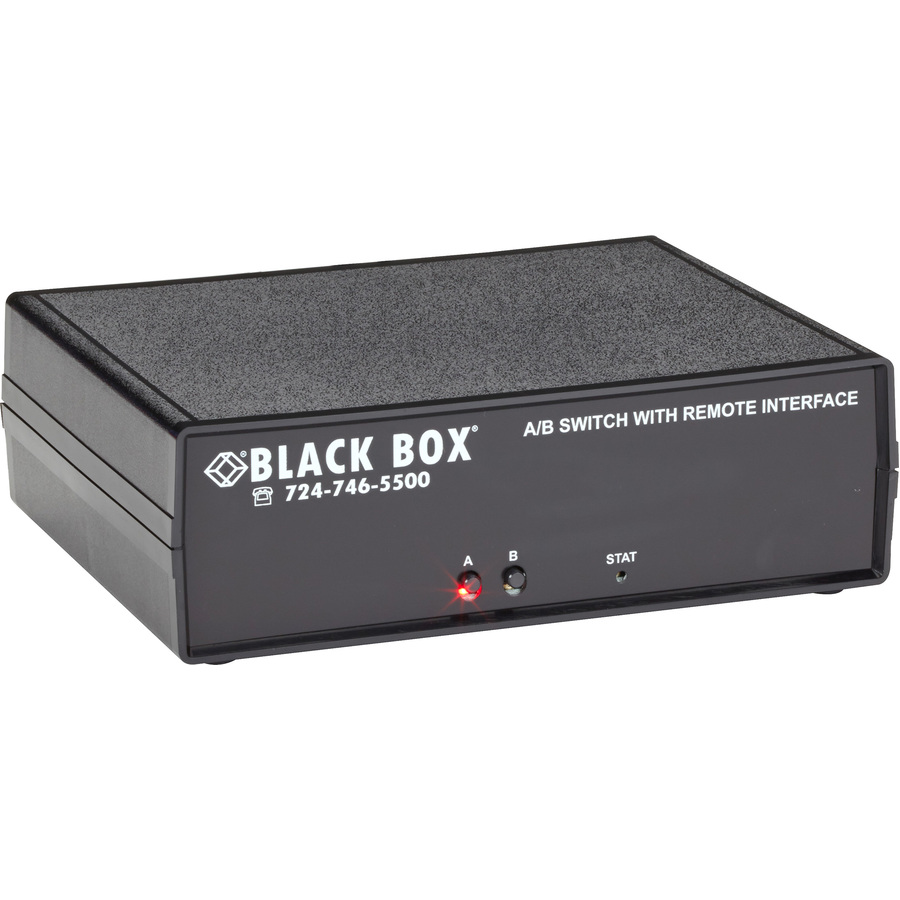

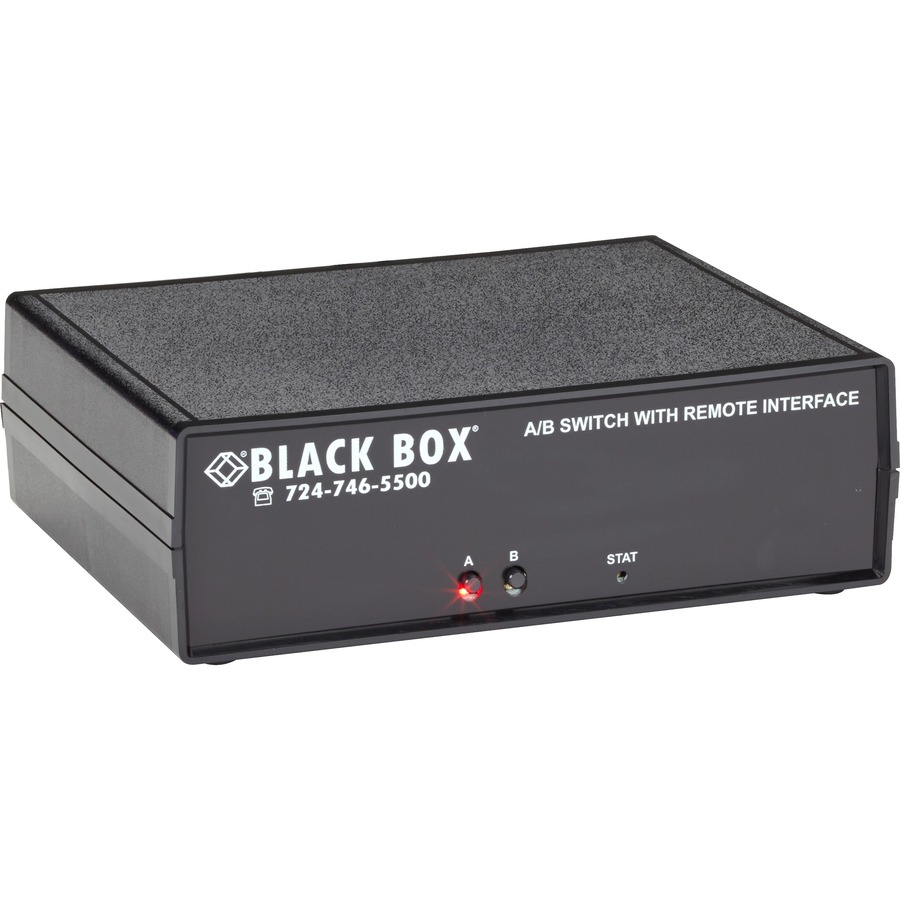

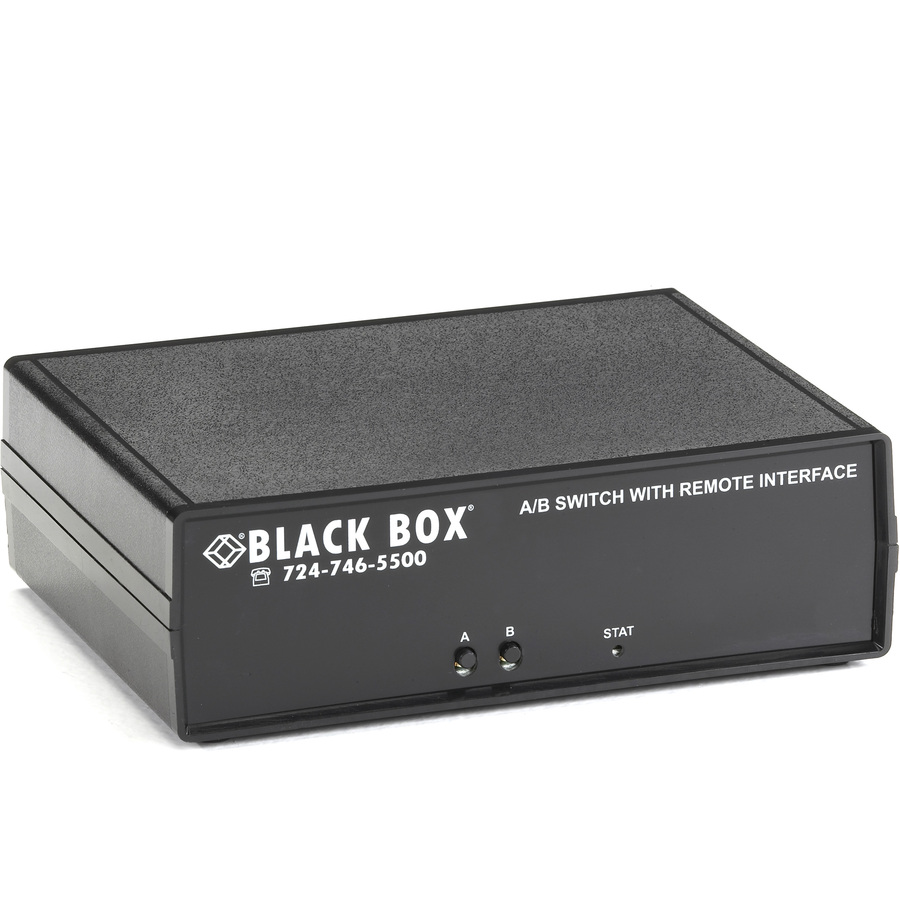

• Manual control of the switch port supported through A/B push button on the front.
• an be switched remotely via dry contact as well.
Highlights
- Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.
- Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
- The connection state will be maintained if power fails or is removed.

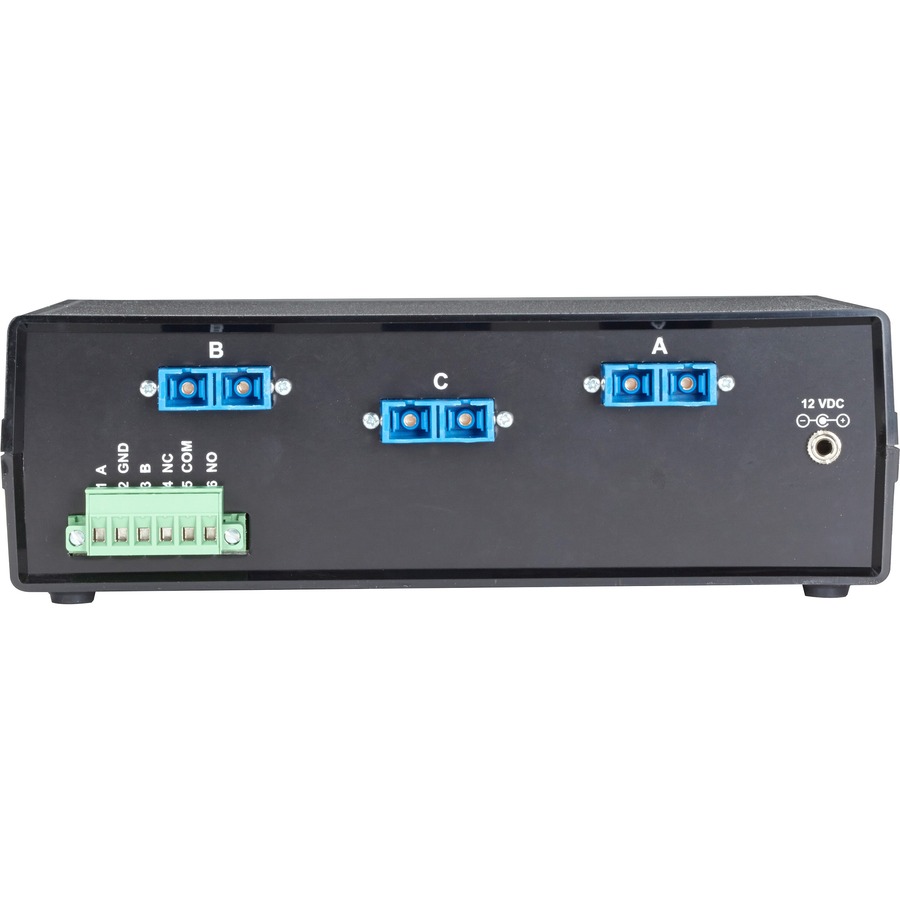

- Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.
- Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.
- If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch.
Specifications
| Product Type | Fiber Optic Switchbox |
|---|---|
| Manufacturer Part Number | SW1043A-MM |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 4 lb |
| Manufacturer | Black Box Corporation |
| Product Name | Fiber Optic A/B Switch - Latching, SC Multimode Remote Control, Dry Contact |
| Brand Name | Black Box |
| Country of Origin | United States |
| Height | 2.5" |
| Width | 6.3" |
| Depth | 8.1" |
| TAA Compliant | Yes |
