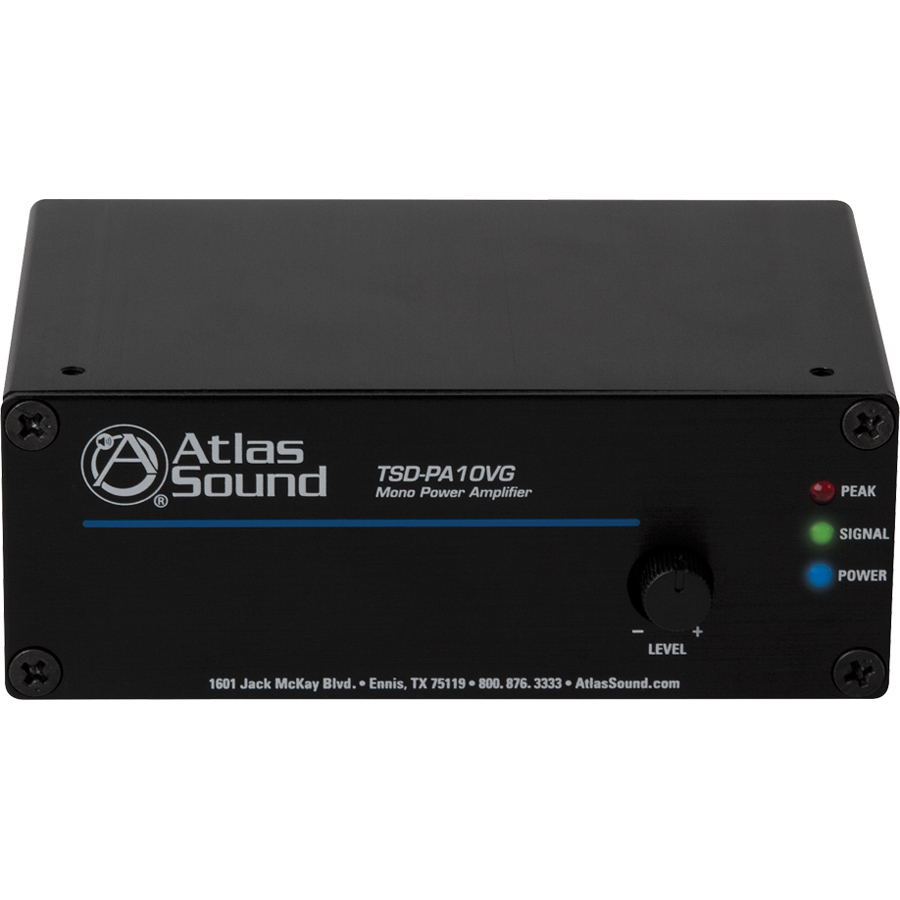

AtlasIED TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black
0.5% THD - 40 Hz to 20 kHz - 14 W
SKU
Category
A/V Receivers & Amplifiers
MSRP$271.99
$227.71
Save 16%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine AtlasIED through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
A/V Receivers & Amplifiers
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
The TSD-PA10VG is a cost effective mono amplifier for 4? and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.
For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).
Highlights
Increases the strength of a weak electrical signal without affecting other characteristics
Hear your music in crisp detail with 20 kHz maximum frequency
Smartly manages power at 4 Ohm impedance to execute sound flow. So Indulge yourself in HQ audio output!
Features 1 audio channel with 10 W RMS output power
Specifications
Audio
Audio Channels
1
RMS Output Power
10 W
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
TSD-PA10VG
Brand Name
AtlasIED
Product Model
TSD-PA10VG
Product Name
TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
Product Type
Amplifier
Physical Characteristics
Product Color
Black
Height
1.5"
Width
4"
Depth
2.8"
Weight (Approximate)
6 oz
Power Description
Input Voltage
24 V DC
Operating Power Consumption
14 W
Technical Information
Minimum Frequency Response
40 Hz
Maximum Frequency Response
20 kHz
Total Harmonic Distortion (THD)
0.5%
Impedance
4 Ohm
Miscellaneous
Package Contents
TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
