9.4" Width x 0.9" Height x 13.9" Length - Metal - 1
SKU
Category
Miscellaneous Devices
MSRP$2,172.00
$1,667.47
Save 23%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine ATEN Technology through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Miscellaneous Devices
Overview

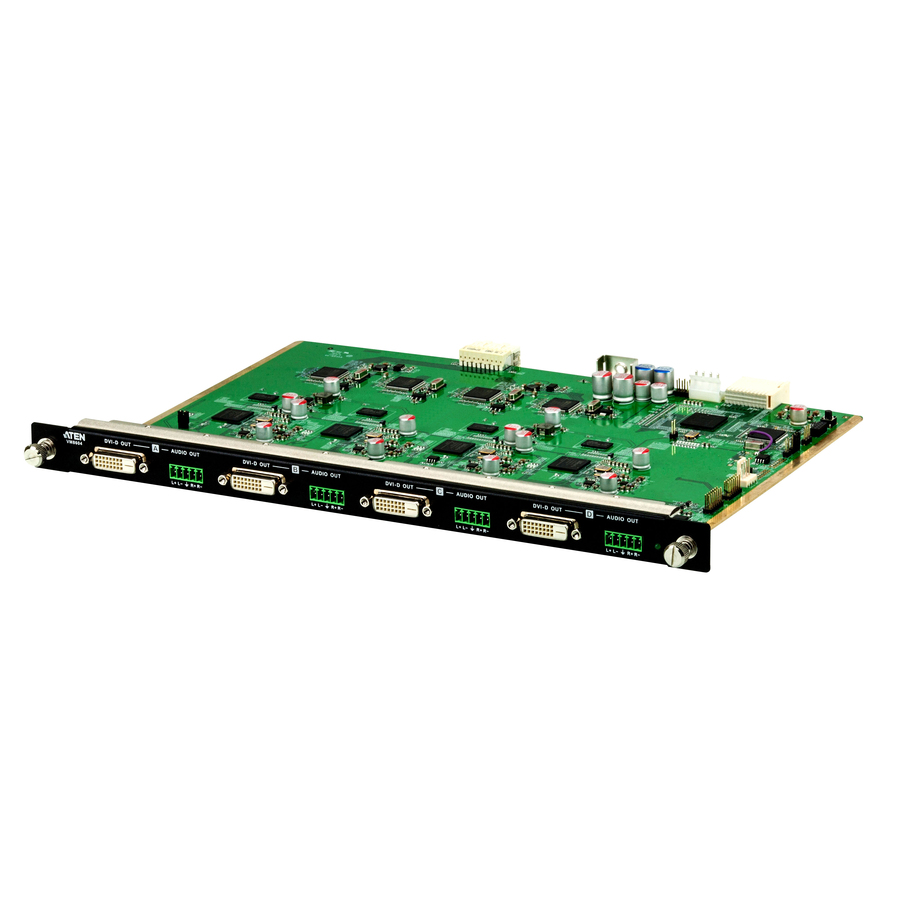

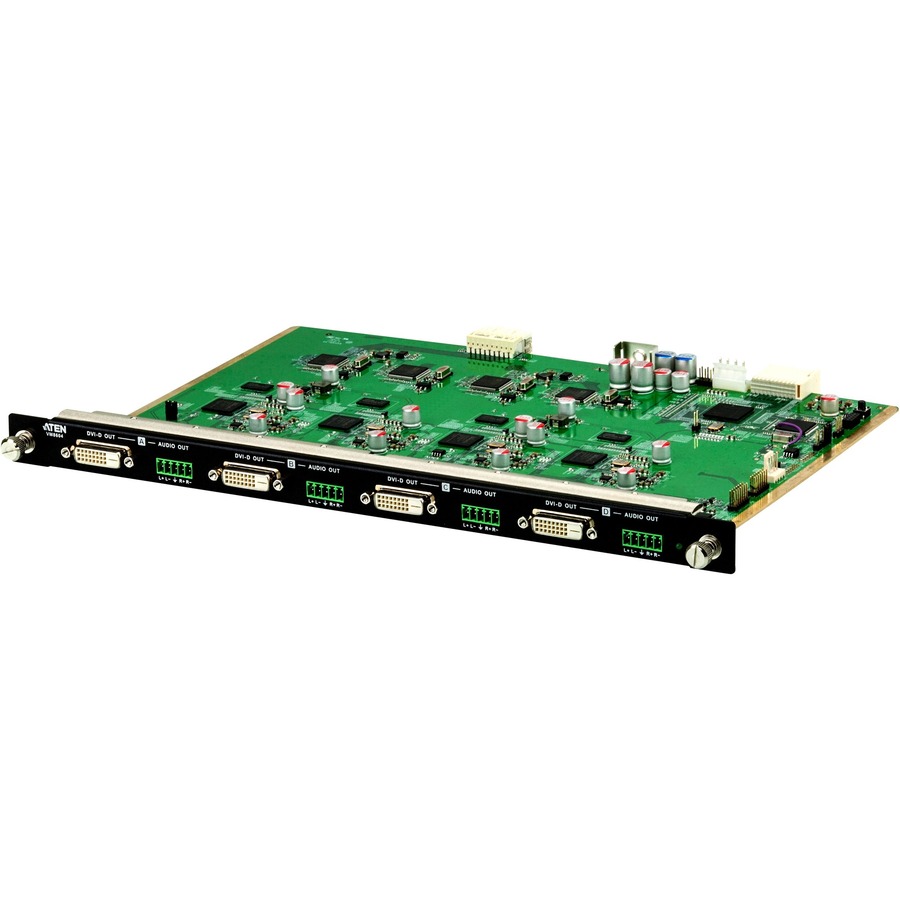

The VM8604 4-Port DVI Output Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN's Modular Matrix Switch.
The VM8604 supports Seamless Switch technology that provides video switching in realtime, a built in scaler that handles different video resolutions, and EDID Expert technology for smooth switching between displays, giving you the perfect viewing experience.
Warranty
Limited Warranty: 3 Year
Highlights
4-port DVI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Superior video quality - up to 1920 x 1200 @ 60Hz
HDCP 1.4 Compatible
Seamless Switch?- provides continuous video streams, real-time switching and stable signal transmission
Built-in scaler on each output port to support the scaling function for different video resolutions
EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
Built-in EDID wizard - provides an easy way to customized EDID settings
Hot-swappable design for easy integration of I/O boards
Audio-enabled
Specifications
General Information
Manufacturer
ATEN Technology, Inc
Manufacturer Part Number
VM8604
Brand Name
VanCryst
Product Name
4-Port DVI Output Board with Scaler
Packaged Quantity
1
Product Type
DVI Output Board
Physical Characteristics
Product Material
Metal
Height
0.9"
Width
9.4"
Length
13.9"
Weight (Approximate)
1.21 lb
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
1x VM8604 4-Port DVI Output Board with Scaler
4x Terminal Block Connectors
1x User Instructions
Application/Usage
A/V System, Matrix Switcher, Training Room, School, Medical, Video Extender, KVM Switch, Cable
Compatibility
ATEN Matrix Switches: VM1600 VM3200 VM3250 VM1600A Aten Kvm Switches: CE610A CE620 CE611 Aten DVI Cables: 2L-7D02V 2L-7D03DD 2L-7D05DD 2L-7D10DD Aten VE601 DVI HDBaseT-Lite Video Extender
