16 Computer(s) - 19" LCD - 1280 x 1024PS/2 PortUSB - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - PC, Mac, Sun - Metal, Plastic - TAA Compliant
MSRP$1,888.00
$1,565.38
Save 17%In stock: 1
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

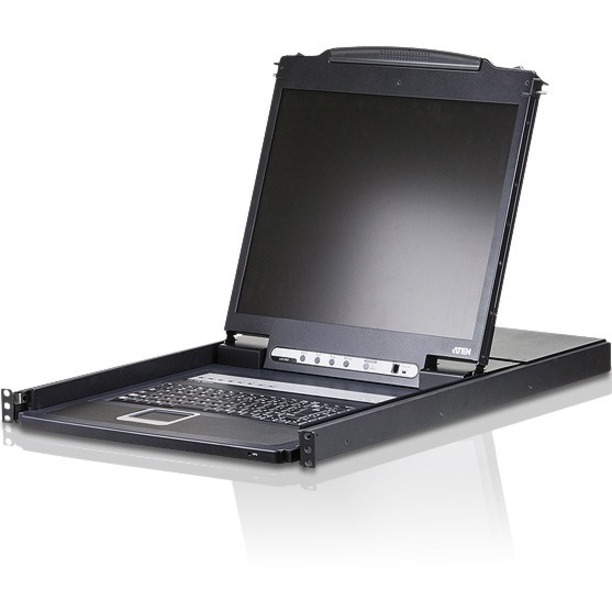

The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
More from the Manufacturer
Powered by GfK Etilize
19 inch LCD integrated KVM drawer
19 inch LCD integrated 16 port KVM drawer
LED light installation - even with dark hands you can operate keyboard and touchpad
Supports two-stage cascade connection - Up to 16 additional KVM switches can be added and up to 256 computers can be connected
Dual interface - Computer supports both PS / 2, USB interface
The CL1316N is a 16-port KVM drawer with a 19-inch LCD monitor, PS / 2 and USB compatible. This product features a 19-inch LCD monitor, a Japanese keyboard full keyboard (106 keys), a touchpad, and a 16-port PS / 2 · USB KVM switch, which is designed to be mounted in 1 U size of the system rack is. Therefore, you can make effective use of the limited space of the server room.
In addition, you can directly connect 16 PS / 2 or USB servers to this product, and if you add 16 corresponding KVM switches and cascade them, you can operate up to 256 servers from this product, so you can flexibly connect the server You can extend the burden and cost of server administrator. There are three ways to switch servers: push buttons on the front panel of this product, hot key input from the keyboard, and multilingual OSD (on-screen display) menu. It does not require software for setup, it just connects the cable to the appropriate port, so it can be set up very easily.
This product simultaneously realizes the switching operation of the computer and the space saving of the server rack, constructing a comfortable working environment, improving the quality of server maintenance and shortening the work time.
Features
19 inch LCD integrated 16 port KVM drawer
LED light installation - even with dark hands you can operate keyboard and touchpad
Supports two-stage cascade connection - Up to 16 additional KVM switches can be added and up to 256 computers can be connected
Dual interface - Computer supports both PS / 2, USB interface
Multiplatform support - Windows, Linux, Mac, Oracle Corporation SPARC (Sun)
Supported USB keyboard (Windows, Mac, Sun)
Japanese array full keyboard (106 key) loaded
PS / 2 · USB interface automatic recognition function
Keyboard / mouse emulation (PS / 2, USB) - Realized smooth switching of computer. In addition, multiple computers can be started simultaneously regardless of the selected port of the console
Resolution - Up to 1,280 × 1,024 @ 75 Hz, DDC 2 B compliant
Port switching method - front panel push button, hot key, multilingual OSD menu
Two levels of user access control - Browse and manipulate screens only for authorized users. An account can be created individually for one administrator and four users
Auto scan mode - Automatically switch display of user selected computer
Broadcast function - Select computers under the product and broadcast commands at once
Hot plug compatible - Can install and remove the computer without turning off the product
Beep tone can be switched ON / OFF by hot key or OSD
Adjustable mounting depth and bundled rail kit for easy mounting (long / short selection)
Rack mount compatible
Supported keyboard languages - Japanese, English (US / UK), French, German (Germany / Switzerland), Greek, Hungarian, Italian, Korean, Russian, Spanish, Swedish, Chinese (Traditional)
Limited Warranty: 2 Year
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| Display & Graphics | |
|---|---|
| Screen Size | 19" |
| Display Screen Type | LCD |
| Screen Resolution | 1280 x 1024 |
| General Information | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CL1316N |
| Brand Name | ATEN |
| Product Name | 16-Port PS/2-USB VGA Single Rail LCD KVM Switch |
| Packaged Quantity | 1 |
| Product Type | LCD Rack Console |
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Physical Characteristics | |
| Product Material | Metal, Plastic |
| Height | 1.7" |
| Width | 27.1" |
| Depth | 19" |
| Weight (Approximate) | 28.15 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 100-240 V AC |
| Power Consumption | 26.10 W |
| Technical Information | |
| KVM Switch | Yes |
| Number of Computers Supported | 16 |
| Device Type | LCD Rack Console |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| USB | Yes |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC, Mac, Sun |
| Country of Origin | China |
| TAA Compliant | Yes |
