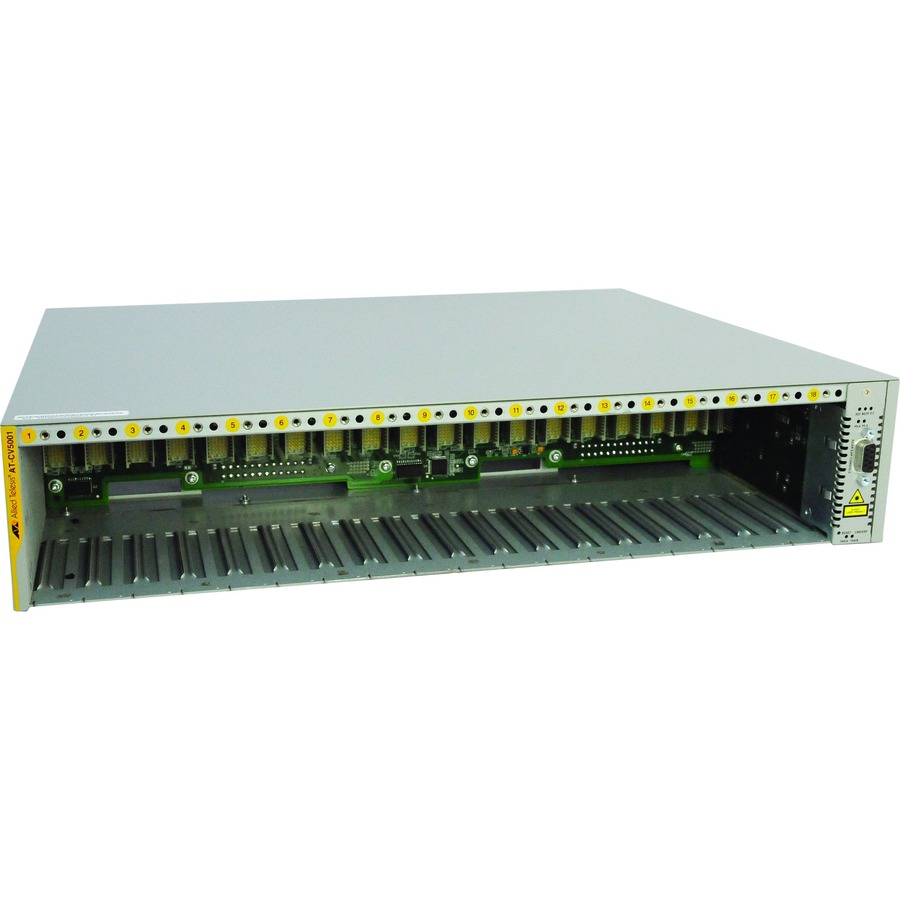

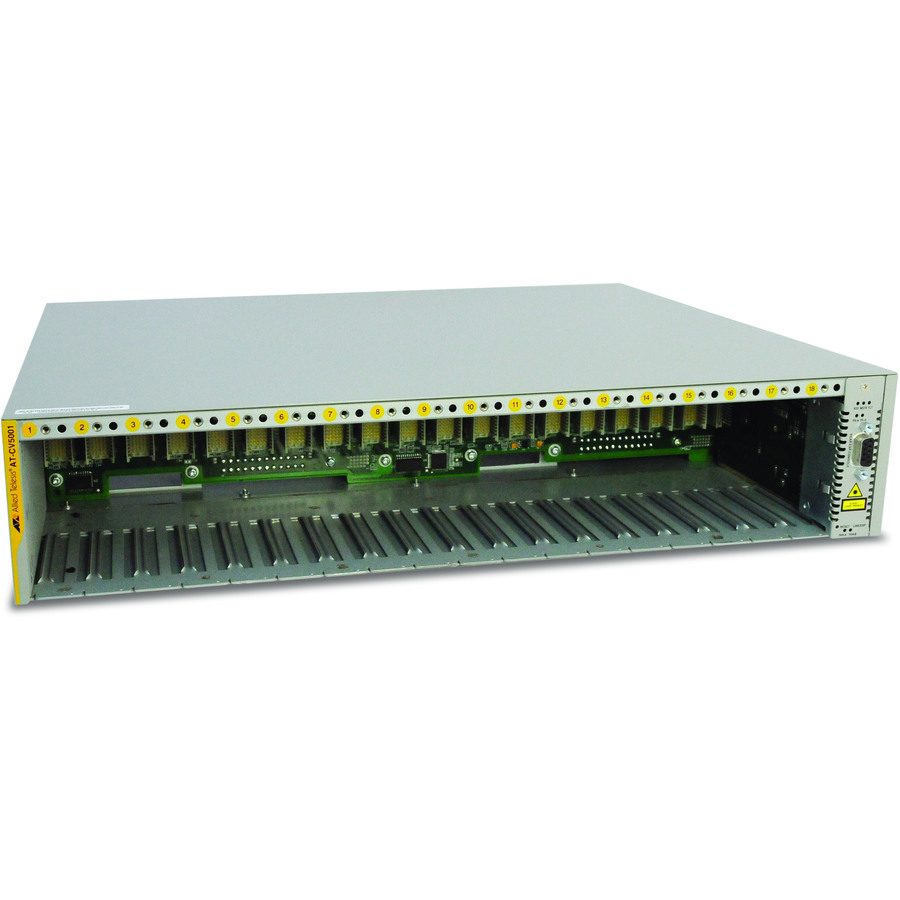

Allied Telesis 18-slot Converteon chassis

Allied Telesis Converteon? is an end- to-end managed media conversion system. The cornerstone of the system is the 2U high, 18-slot chassis. Converteon is capable of meeting the most demanding needs, with blades available in Fast Ethernet and Gigabit converting rate and media from Fiber to Copper. A one-slot and two-slot chassis is also available for remote locations where an 18-slot chassis is not needed. Support for IEEE 802.3ah Ethernet in the First Mile (EFM) makes Converteon ideal for both service providers and the Enterprise.

Power Options and Redundancy

All the sold-separately Converteon power supplies are hot swappable and modular. Installing two into a chassis provides redundancy should a single alliedtelesis.com power supply fail. In an unmanaged chassis, the status of each power supply is displayed via an LED indicator on the front panel. A fully-loaded chassis can run continuously with only one power module fitted into the chassis. Built-in intelligent fan speed auto adjustment algorithm is based on the chassis temperature monitoring. Software generates SNMP trap when chassis temperature exceeds 65 o C. Software also generates SNMP trap when FAN speed is below 2647 RPM and temperature exceeds 65 o C.

Hassle-Free Support

Allied Telesis offers free technical support, ensuring trouble-free installation.
