3G - LTE - 2.40 GHz ISM Band - 5 GHz UNII Band(8 x External) - 1 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - Wall Mountable
SKU
WISE-3610ILS-51A1E
Category
Wireless Routers
$1,030.22
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
WISE-3610ILS-51A1E
Category
Wireless Routers
Overview

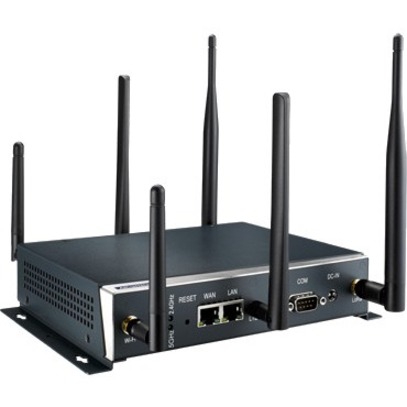

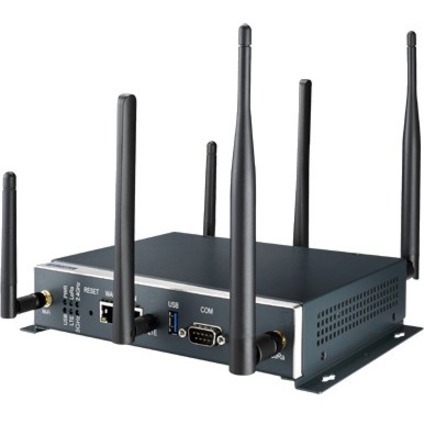

WISE-3610 is Qualcomm ARM Cortex A based hardware platform, which is operating at OpenWRT, described as a Linux distribution for embedded devices. The Advantech WISE3610 Industrial Router is Advantech IoT gateway design for smart city, Industrial 4.0 applications, even those in harsh environment, leveraging wireless sensor technology. This IoT gateway can aggregate both the wireless sensor networks (WSN), including Low Power WAN (LPWAN) technology by Advantech private LoRa technology, wired sensors and ties them into an IP network. With modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands, wireless communication protocol by various uplink requirement and quickly go to market.
Highlights
Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2x2)
LPWAN LoRa Private (WISE-Link) Connectivity
WAN x1 / LAN x1 Gigabit Ethernet
Integration of Modbus TCP and Modbus RTU networks
IPSec / L2TP VPN Traffic Encryption
Rich Network Scanrio by S/W Configuration
Modularization hardware design
OpenWRT BSP embeded
Web UI user interface
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
WISE-3610ILS-51A1E
Brand Name
Advantech
Product Model
WISE-3610
Product Name
WISE-3610 Private LoRa Network IoT Gateway EU868
Packaged Quantity
1
Product Type
Modem/Wireless Router
Interfaces/Ports
Number of Network (RJ-45) Ports
1
USB
Yes
Number of Broadband (RJ-45) Ports
1
Network & Communication
Ethernet Technology
Gigabit Ethernet
VPN Supported
Yes
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
SIM Size Supported
Micro
Physical Characteristics
Form Factor
Wall Mountable
Height
1.5"
Width
7.4"
Depth
5.9"
Technical Information
Wi-Fi Generation
Wi-Fi 5
Wireless Specifications
Broadband Transmission Technology
Ethernet, Cellular
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.40 GHz
UNII Maximum Frequency
5 GHz
Cellular Generation
3G
Cellular Data Connectivity Technology
LTE
Number of External Antennas
8
Miscellaneous
Package Contents
WISE-3610 Private LoRa Network IoT Gateway EU868
1 x 36W 12V 3A AC/DC Power Adaptor
2 x Antenna 2.4Ghz / 5Ghz SMA Male Reverse
2 x LoRa Dipole Antenna, 1dBi 863~870 MHz (EU868 SKU)
