B+B SmartWorx 32-ch Isolated Digital I/O (NPN DO) and Counter PCI Card
x 3.9" Height x 6.9" Length
SKU
Category
Miscellaneous Devices
$201.97
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 28 and Dec 2, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Miscellaneous Devices
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

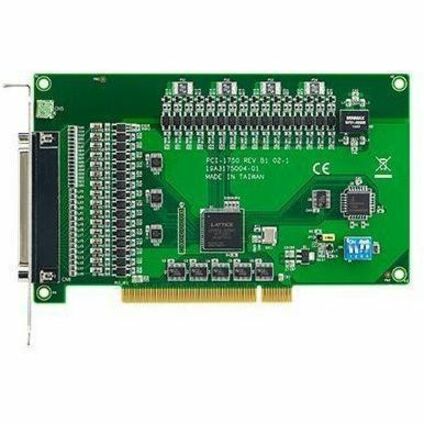

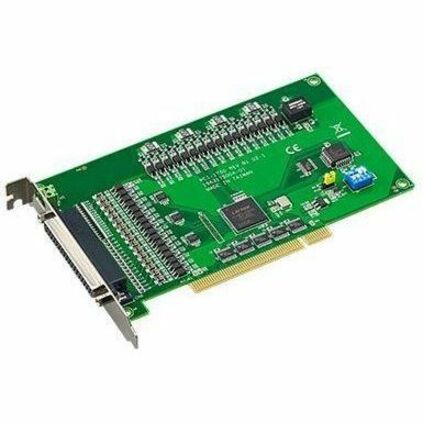

PCI-1750/1750SO offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750/1750SO is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750/1750SO corresponds to a bit in a PC I/O port. This makes PCI-1750/1750SO very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC, so you can then easily configure the card with software.
Highlights
16 isolated DI and 16 isolated DO channels
High voltage isolation on all isolated channels (2,500 VDC)
High source current on isolated output channels (200 mA/channel)
Supports dry contact or 5 ~ 50 VDC isolated inputs
Interrupt handling capability
Timer/counter interrupt capability
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
PCI1750BE
Brand Name
B+B SmartWorx
Product Model
PCI-1750
Product Name
32-ch Isolated Digital I/O (NPN DO) and Counter PCI Card
Product Type
I/O Module
Physical Characteristics
Height
3.9"
Length
6.9"
Technical Information
Connector Type
DB-37 - Female
Miscellaneous
Application/Usage
Industrial
Country of Origin
Taiwan
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
