Advantech 17" 1,200 cd/m Ultra High Brightness Industrial Display Kit with LED B/L
Advantech

Advantech 17" 1,200 cd/m Ultra High Brightness Industrial Display Kit with LED B/L

1

SKU
IDK-2117R-K2SXA2E
Category
Miscellaneous Kits

$418.33

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDK-2117R-K2SXA2E
Category
Miscellaneous Kits

Overview

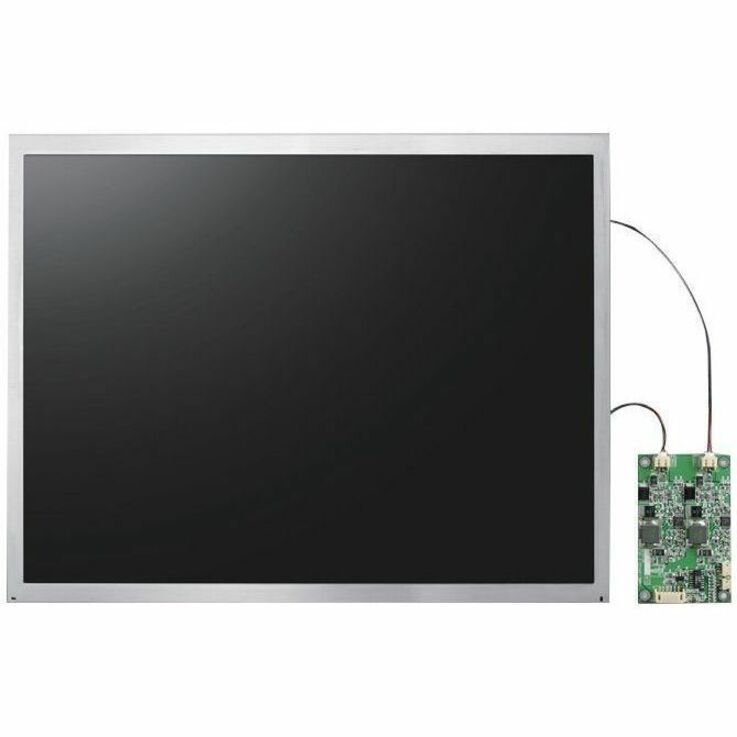

The Advantech IDK-2117 series comes with a 17" 1200 cd/m2 industrial grade LCD display, and an LED driving board. The series is also available with flexible options for touch screens and enhanced treatment such as AR surface treatment and optical bonding solution. IDK-2117 series supports 1200 cd/m2 high brightness with low power consumption at the maximum consumption of 17W. Equipped with high level of brightness and wide operating temperature, IDK-2117 provides superior sunlight readability and is perfect for applications whether in semi-outdoor or outdoor environments.

Highlights

  • 17" LCD supports 1280 x 1024 pixels and wide operating temperature (0 ~ 50° C)
  • Ultra-high brightness of 1200cd/m2 with LED backlight
  • High contrast ratio of 1000:1
  • High uniformity of 80%
  • Superior sunlight readability
  • LVDS signal interface
  • Low power consumption 17W
  • Anti-Reflection surface treatment(optional)
  • Manually VR brightness control (optional)
  • Auto-dimming solution with light sensor (optional)
  • Optical bonding (optional)

Specifications

Package Contents
  • 1 x 5-wire USB Touch Controller
  • 1 x USB Cable for Touch Controller
  • 1 x LED Driving Board
Product TypeIndustrial Display Kit
DimensionsLCD Panel: Screen Size : 17" Dimensions (W x H x D): N series: 358.5 x 296.5 x 18 mm R series: 358.5 x 296.5 x 20.9 mm LED Driver Board; Dimensions (W x H x D): 80 x 54.2 x 10 mm
Manufacturer Part NumberIDK-2117R-K2SXA2E
Packaged Quantity1
Weight (Approximate)Weight: 1300 g (N series) 1760 g (R series)
ManufacturerAdvantech Co., Ltd
Product Name17" 1,200 cd/m Ultra High Brightness Industrial Display Kit with LED B/L
Product SeriesIDK-2117
Brand NameAdvantech
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
