4G - LTE, LTE Cat 4, HSPA+, UMTS, EDGE, GPRS - 18.75 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - Fast Ethernet - VPN Supported - Wall Mountable, DIN Rail Mountable
SKU
Category
Wireless Routers
$322.23
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 10 and Nov 14, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Wireless Routers
Country of origin
United States
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

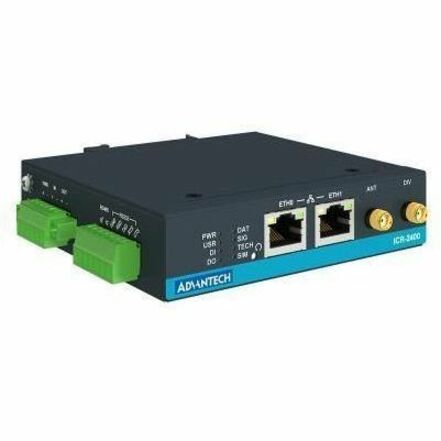

Industrial cellular router ICR-2432 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. Cat.4 rated ICR-2432 router is capable of achieving better typical speeds in 4G coverage areas where the network is enabled with 20 MHz of contiguous spectrum. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. Optional built-in WiFi 802.11a,b,g,n with AP, Client and Multirole modes are available.
The router is equipped with two independently configurable Ethernet ports (LAN or WAN), 1× serial port RS232, 1× RS485, and with digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps (User modules) that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, and a lot more. The router is easy to manage using WebAccess/DMP a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.
Highlights
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
2× Ethernet 10/100 Mbps
1× RS232, 1× RS485
1× DI, 1× DO
Wide operational temperature range
Wall and DIN mount options
Linux based OS & SW customization
Optional WiFi 802.11n
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
ICR-2432
Brand Name
Advantech
Product Model
ICR-2432
Product Name
ICR-2432 Modem/Wireless Router
Product Type
Modem/Wireless Router
Interfaces/Ports
Total Number of Network Ports
2
Number of Network (RJ-45) Ports
1
Number of Broadband (RJ-45) Ports
1
Network & Communication
Ethernet Technology
Fast Ethernet
VPN Supported
Yes
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
SIM Size Supported
Micro
Physical Characteristics
Product Material
Metal
Form Factor
Wall Mountable, DIN Rail Mountable
Height
1"
Width
4.1"
Depth
3.7"
Weight (Approximate)
12.17 oz
Storage
Flash Memory Capacity
64 MB
Technical Information
Processor Model
ARM926EJ-S
Processor Speed
600 MHz
Standard Memory
128 MB
Wireless Specifications
Broadband Transmission Technology
Cellular, Ethernet
Cellular Generation
4G
Cellular Data Connectivity Technology
LTE, LTE Cat 4, HSPA+, UMTS, EDGE, GPRS
Total Wireless Transmission Speed
18.75 MB/s
Miscellaneous
Package Contents
ICR-2432 Modem/Wireless Router
6-pin PWR / IO Connector
7-pin Serial Connector
Wall Mount Kit
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 3, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
